TORQUE SETTINGS FOR SCREWS
IN ORDER TO MAINTAIN THE IP65 RATING ON THE LIGHTING FIXTURES, ALL SCREWS MUST
BE TIGHTENED TO THE FOLLOWING TORQUE SPECIFICATION USING A TORQUE DRIVER.
Refer to the table and diagram below for torque specifications.

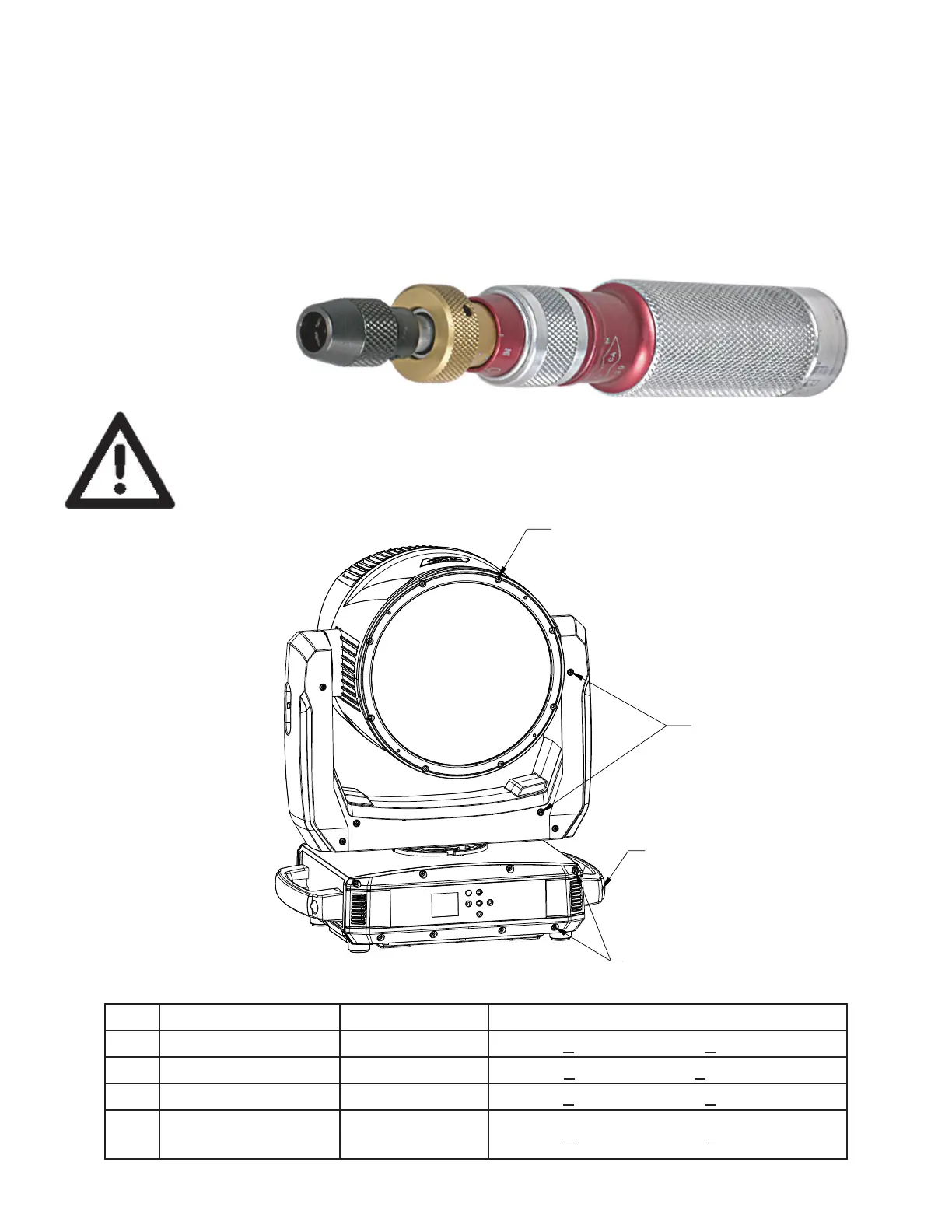

TORQUE DRIVERS (Recommended): UTICA TS-30 (shown)
ALTERNATE DRIVERS:
• Proto J6107A
• Wiha 28887
NO. LOCATION QUANTITY TORQUE
1 Head Front Cover 8 11.3 + 0.4 Lb-in (13.0 + 0.5 Kg-cm)
2 Arm Cover 12 4.3 + 0.4 Lb-in (5.0 + 0.5 Kg-cm)
3 Carrying Handles 4 11.3 + 0.4 Lb-in (13.0 + 0.5 Kg-cm)
4
Base Front/Rear
Covers
16 11.3 + 0.4 Lb-in (13.0 + 0.5 Kg-cm)
CAUTION! DO NOT OVER TORQUE SCREWS, AS THIS CAN CAUSE
LEAKAGE ISSUES!
