DMX SETUP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication

between intelligent xtures and controllers. A DMX controller sends DMX data instructions from the

controller to the xture. DMX data is sent as serial data that travels from xture to xture via the DATA

“IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufactures to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using several DMX xtures try to use the

shortest cable path possible. The order in which xtures are connected in a DMX line does not inuence

the DMX addressing. For example; a xture assigned a DMX address of 1 may be placed anywhere in

a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is assigned a DMX

address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter

where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): The Focus Spot 4Z/Focus Spot 4Z

Pearl can be controlled via DMX-512 protocol. The Focus Spot 4Z/Focus Spot 4Z Pearl has 3 DMX

channel modes. The DMX address is set on the front panel of the Focus Spot 4Z/Focus Spot 4Z

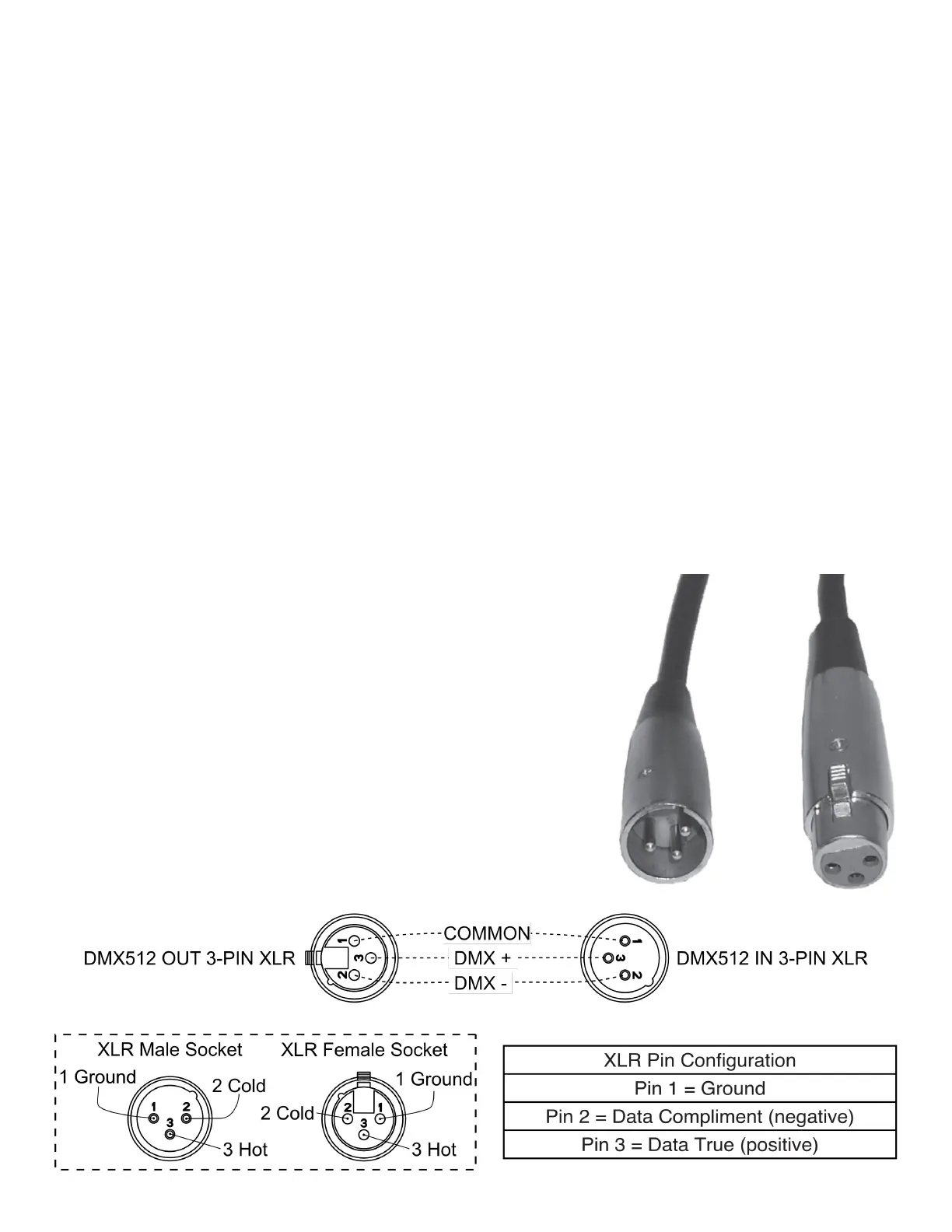

Pearl. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and

data output (Figure 1). We recommend Accu-Cable DMX cables. If

you are making your own cables, be sure to use standard 110-120

Ohm shielded cable (This cable may be purchased at almost all

pro lighting stores). Your cables should be made with a male and

female XLR connector on either end of the cable. Also remember

that DMX cable must be daisy chained and cannot be split.

Notice: Be sure to follow gures two and three when making your

own cables. Do not use the ground lug on the XLR connector.

Do not connect the cable’s shield conductor to the ground lug or

allow the shield conductor to come in contact with the XLR’s outer

casing. Grounding the shield could cause a short circuit and erratic

behavior.
