INSTALLATION

Always ensure that the unit is rmly xed to avoid vibration and slipping during operation. Always

ensure that the structure to which you are attaching the unit is secure and is able to support at least

10 times the unit’s weight. ALWAYS use safety cables that can hold 12 times the weight of the unit

when installing the xture. This equipment must be installed by a professional, and it must be in-

stalled in a place where it is out of the reach of people’s grasp.

The Encore Burst RGBW IP is fully operational in three dierent mounting positions: hanging upside-

down, mounted sideways on trussing, or set on a at level surface. Be sure this xture is kept at

least 12m (40ft) away from any ammable materials (decoration etc).

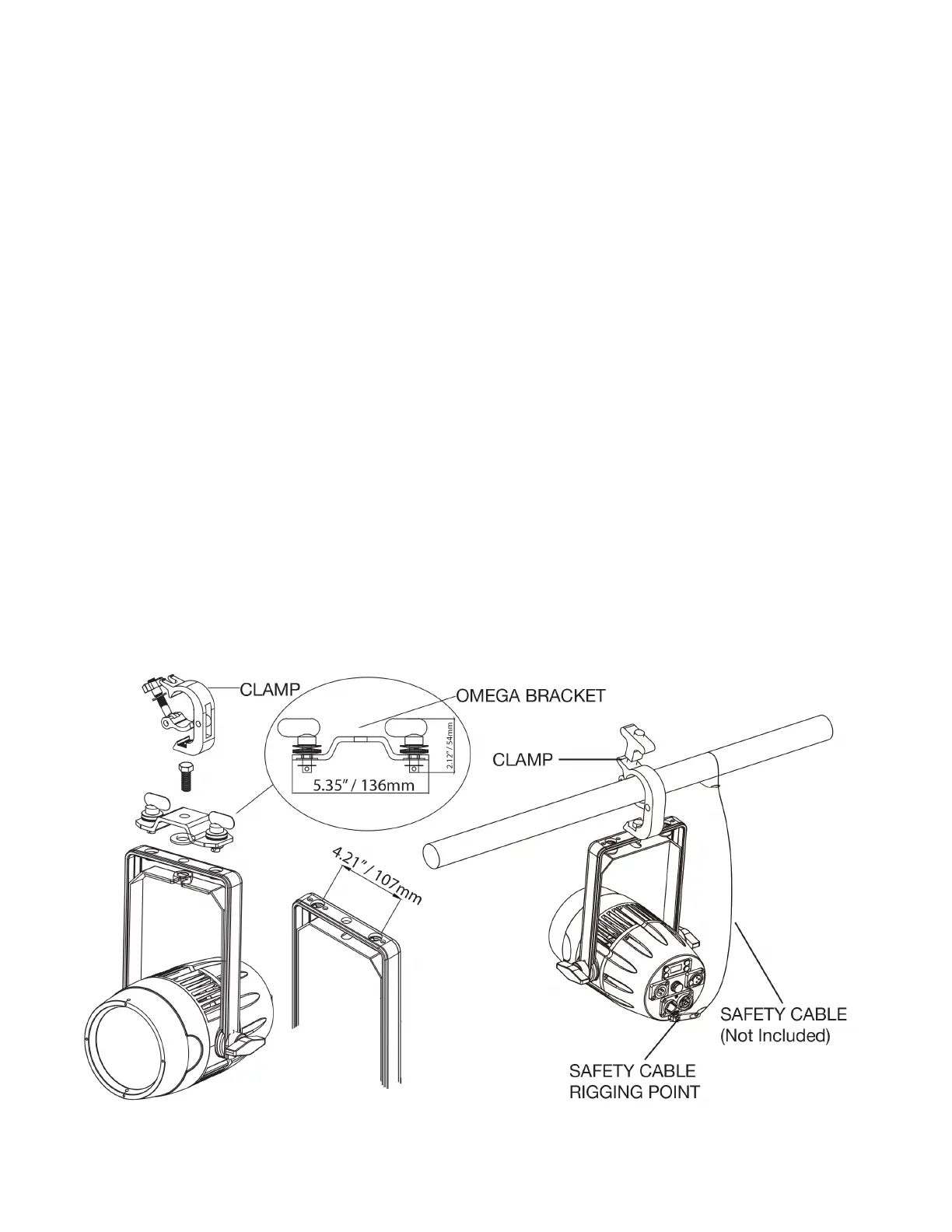

OVERHEAD RIGGING: The Encore Burst RGBW IP includes two rigging options.

1. OMEGA BRACKET - Mount the xture with an appropriately rated professional grade rigging

clamp (not included) to the included Omega Bracket using an M12 screw and nut (not included).

With the rigging clamp securely attached to the Omega Bracket, attach the Omega Bracket to

the xture by inserting both of the 1/4-turn quick-lock fasteners into the aligning holes on the x-

ture yoke bracket, and turning each quick-lock fastener clockwise to secure. MAKE SURE THE

OMEGA BRACKET IS SECURELY ATTACHED BEFORE RIGGING FIXTURE!

2. MOUNTING YOKE - Mount the xture with an appropriately rated professional grade rigging

clamp (not included) to the xture yoke bracket center hole using an M12 screw and nut (not in-

cluded). MAKE SURE THE CLAMP IS SECURELY ATTACHED BEFORE RIGGING FIXTURE!

SAFETY CABLE: Pull the safety-cable through the opening located on the rear of the unit and over

the trussing system or a safe xation spot. Insert the end in the carabine and tighten the safety

screw. ALWAYS use and install a safety cable as a safety measure to prevent accidental damage

and/or injury in the event the clamp fails.

ADJ Products, LLC - www.adj.com - Encore Burst RGBW IP User Manual Page 9
