IR REMOTE CONTROL

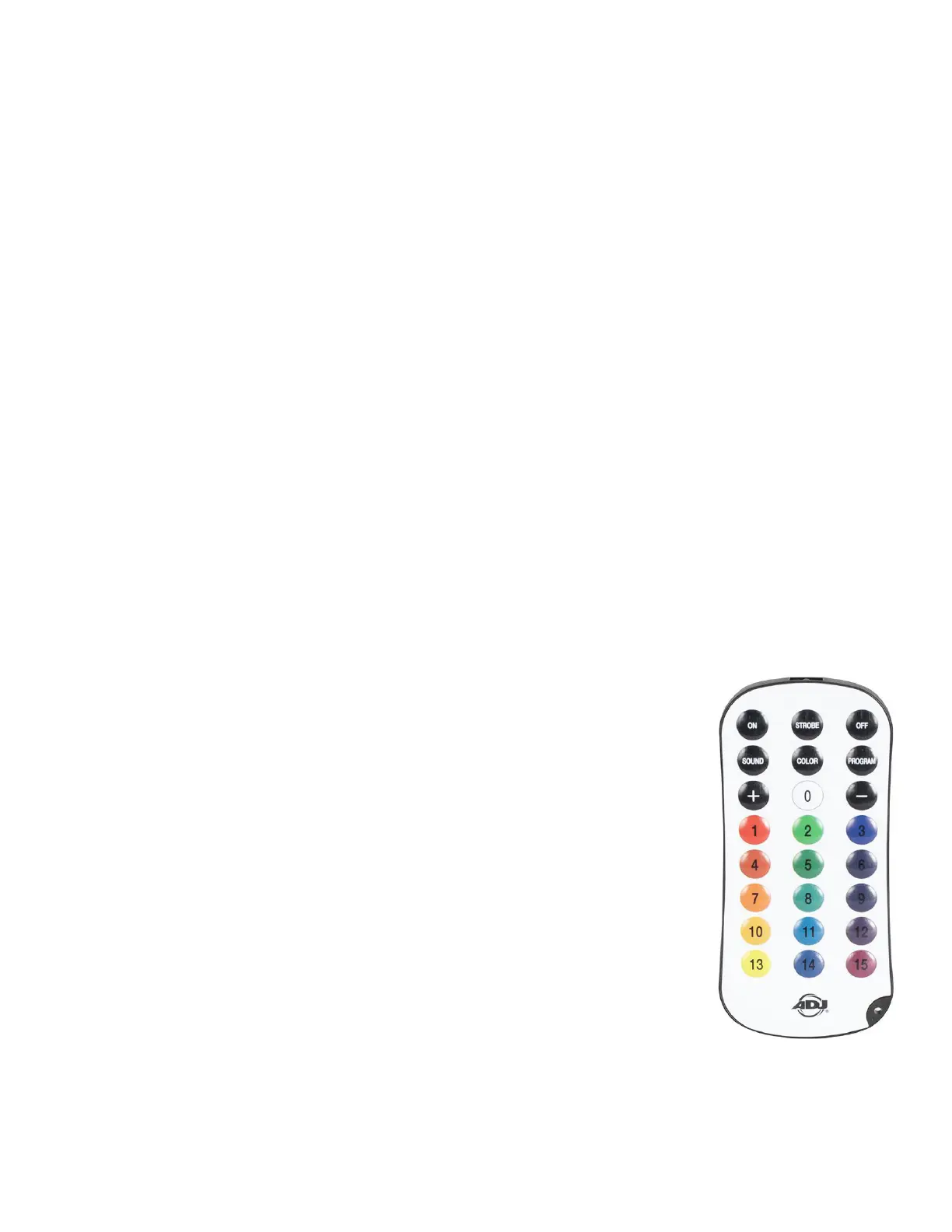

This unit can be operated using the ADJ UC IR24 remote control. The unit can only be controlled

when it has been set to Primary mode. The unit will NOT respond to commands when it has

been set to Secondary mode. When using the UC IR to control multiple units that are operating in

primary/secondary mode, follow these steps to set up the units:

1. Power on the unit, and press MODE to scroll to the “Personality” menu, then press SETUP.

2. Use the UP and DOWN buttons to scroll to “Prim/Sec Mode”. Press SETUP, then use the UP and

DOWN buttons to toggle between “Primary” and “Secondary”.

3. Press SETUP to conrm and return to the “Personality” menu.

4. Use UP and DOWN to scroll to “IR Function” and press SETUP.

5. Use the UP and DOWN buttons to toggle this setting to “On”, then press SETUP to conrm.

NOTES:

• Only one unit should be congured as the primary, while all the other units should be congured as

secondaries.

• All units should be set to the same DMX channel mode.

• If xtures fail to sync, verify that all settings mentioned above are the same, then power all devices

off, then switch them on again to re-establish the link.

CONTROLS

• ON and OFF: When the ON button is pressed, the lighting fixture shall return to its last running

state. When the OFF button is pressed, the unit shall go into stand by mode in a blackout state.

• STROBE: The unit shall strobe the selected color or program. The strobe rate can be adjusted

with the + / - buttons, or by using buttons 1-15 to go directly to a preset strobe speed, where 1 is

the slowest and 15 is the fastest.

• SOUND: Triggers the selected program steps based on sound input. The

microphone sensitivity can then be adjusted with the +/- buttons.

• COLOR: When the color button is pressed, preset static colors can be

selected using buttons 0-15. The intensity for the set color can be adjusted

with the +/- buttons.

• PROGRAM: When the program button is pressed, internal programs can

be selected by pressing buttons 1-13. The selected program’s speed can

be adjusted with the+/- buttons.

• + and - buttons: These buttons are used to adjust strobe rate, mic sen-

sitivity, brightness intensity, or program run speed, depending on which

mode is active. Single-level adjustments can be made with individual button

presses, while large adjustments can quickly be made by pressing and

holding.

• 0-15 buttons: These buttons are used to select preset static colors or

internal programs, depending on which mode is active. Colors stored in

buttons 0-15 can be edited from the units menu if desired.
