INSTALLATION GUIDELINES

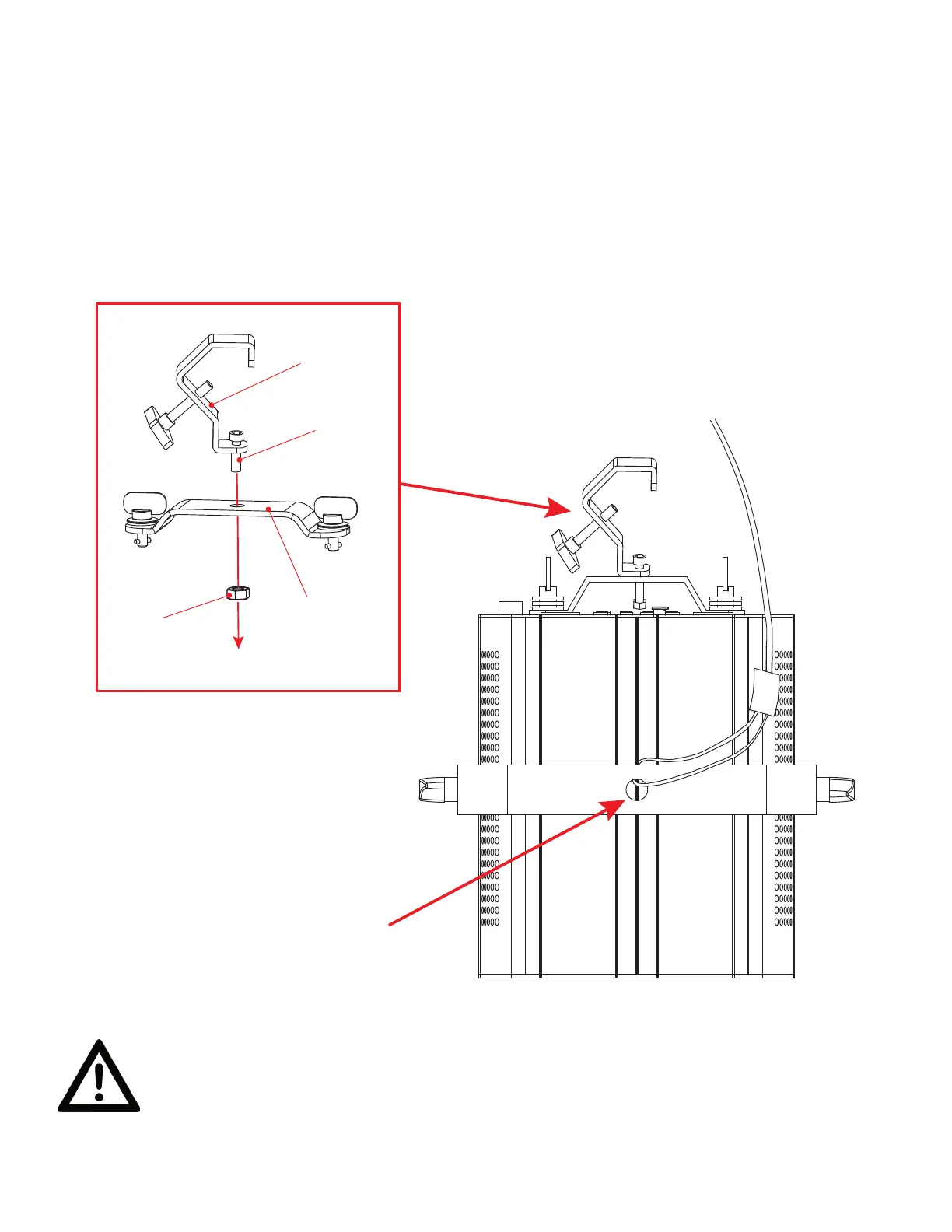

CLAMP INSTALLATION - OMEGA BRACKET

This fixture features an attachment point for an Omega bracket located near the control panel.

Align the hole in the mounting clamp with the hole in the Omega bracket, insert a bolt of the proper

size through bolt the clamp and bracket, and secure in place with a matching nut. Attach the entire

clamp and bracket assembly to the fixture by inserting the twist-lock fasteners into the Omega

bracket mounting holes on the fixture, then turn the twist locks to secure in place. Attach a separate

SAFETY CABLE of the appropriate weight rating by looping the cable around the mounting bracket,

and securing the other end of the cable to a suitable anchoring point.

Mounting

Clamp

Bolt

Omega

Bracket

Nut

Safety cable

looped through

mounting bracket

SAFETY CABLE:

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A

SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF

THE CLAMPS FAIL.
