©American DJ® - www.americandj.com - Wave Instruction Manual Page 8©American DJ® - www.americandj.com - Wave Instruction Manual Page 7
Operating Modes:
You may operate your Wave in two different ways:
Note: For control with the optional BC 30 remote control see
page 10.
• Stand Alone or Master/Slave Mode - This mode allows you to
run one stand alone unit or daisy chain up to 4 units together to get a
synchronized light show.
• DMX Mode - This function will allow you to control each individual
fixtures traits with a standard DMX 512 controller such as the Elation®
Show Designer.
™
Stand Alone or Master-Slave Operation: This function will allow
you to run one unit alone or link up to 4 units together. The unit(s)
will run an automatic program or you can control the unit(s) with the
optional BC 30. In Master-Slave operation one unit will act as the con-
trolling unit and the others will react to the controlling units programs.
Any unit can act as a Master or as a Slave.
1. Using standard XLR microphone cables, daisy chain your units
together via the XLR connector on the rear of the units. Remem-
ber the Male XLR connector is the input and the Female XLR
connector is the output. The rst unit in the chain (master) will use
the female XLR connector only - The last unit in the chain will use
the male XLR connector only. For longer cable runs we suggest a
terminator at the last fixture.
2. Choose a unit to function as the Master and set dipswitch #1
to the “ON” position, and all other dipswitches to the “OFF” posi-
tion. Then simply daisy chain the units together using XLR cables.
3. For SLAVE units, set dipswitches 2-9 to the “ON” position,
and they will react the same as the MASTER. Note: They cannot
have the same dipswitches set to the “ON” position.
4. The optional BC 30 Remote Control may be used with this mode
to control stand-by (blackout).
Universal DMX Control: This function allows you to use a uni-
versal DMX-512 controller such as the Elation® DMX Operator™ or
Show Designer.™ to control the DMX traits. Operating through a DMX
controller gives freedom to create unique programs tailored to one’s
individual needs.
Wave Operation Wave Set Up
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number ZDMX/T) will decrease the possibilities of erratic
behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 4
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin XLR
connectors for DATA transmission in place of 3-pin. 5-pin XLR xtures
may be implemented in a 3-pin XLR DMX line. When inserting stan-
dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be
used, these adaptors are readily available at most electric stores. The
chart below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Figure 3

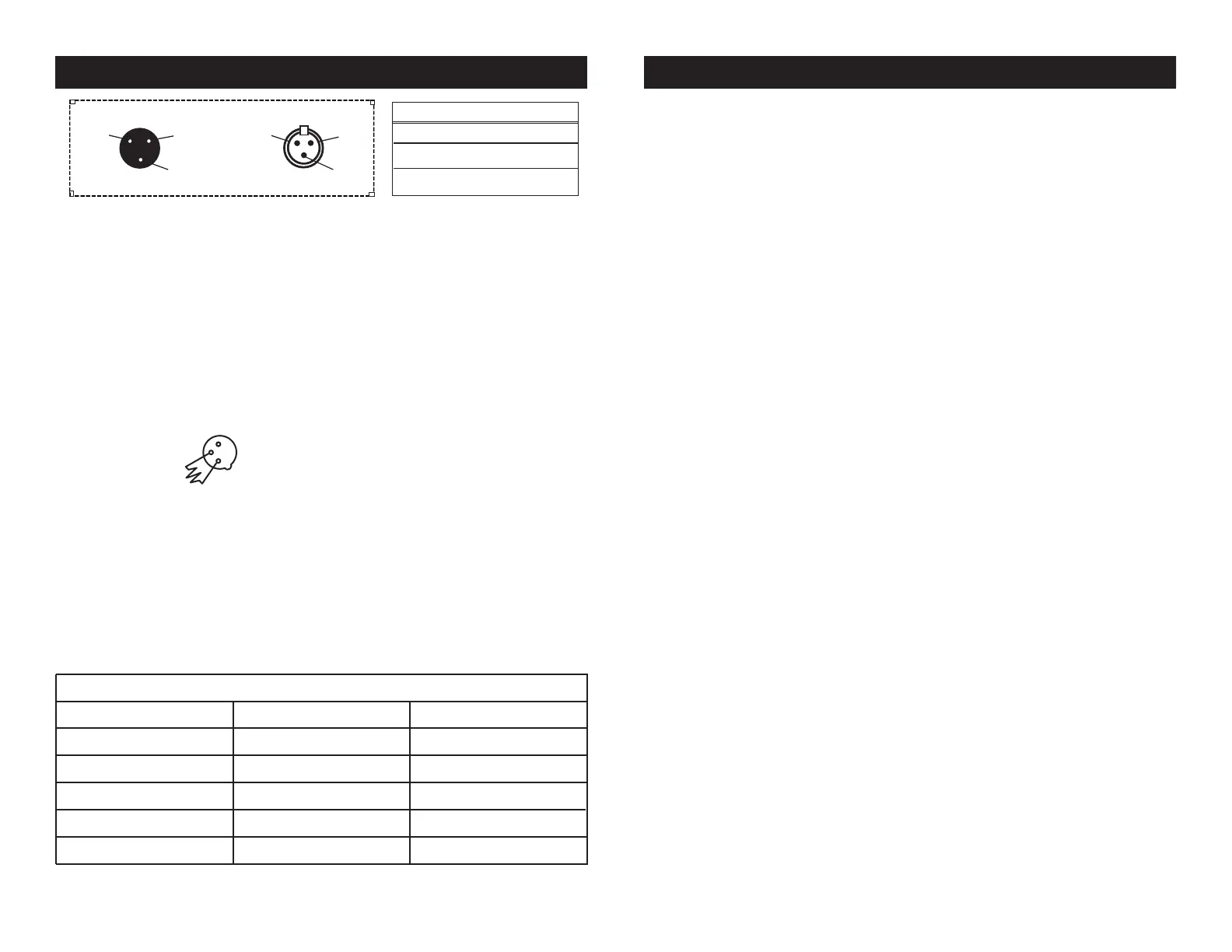

1 Ground
1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
