Figure 3
©American Audio® - www.americanaudio.us - V Series™ Power Amplifier User Manual Page 7
1. Cooling Fans - Dual high speed cooling fans
2. Channel 1 XLR/1/4” Input - Channel two combo 3-pin XLR/1/4” balanced
input jack. The 1/4” female jack excepts either a balanced or unbalanced plug.
See page 9 for more details.
3. Channel 1 XLR Link Connector - This XLR jack is used to send a parrallel
signal from channel link jack to another device or amplier.
4. Channel 1 High Pass Filter Switch - This switch controls the amplier’s lter
mode. The amplier can operate in three dierent lter modes; High Pass, Low
Pass, and By-Pass.
5. Channel 1 Limiter Switch - This switch is used to limit the input level of
channel 1. Use this function to avoid damage to your speakers.
6. Channel 1 Output Jack/5 way Binding Post - Connect to your speaker’s
input jack. Red is positive signal and Black is negative signal.
7. Channel 1 Speakon Output - Optional speaker output connections. Use
pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s
Speakon input jack.
8. Breaker - The break acts in place of a common discardable fuse. The circuit
breaker will trip if the is a fault with the main voltage or if maximum output is
exceeded. Simply depress the breaker and power up the unit again.
9. AC Cord - Plug this cable into a standard wall outlet. Check that the voltage
in your area matches the ampliers required voltage.
10. Channel 2 Speakon Output - Optional speaker output connections. Use
pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s
Speakon input jack.
11. Channel 2 Output Jack/5 way Binding Post - Connect to your speaker’s
input jack. Red is positive signal and Black is negative signal.
12. Mode Switch - This switch controls the amplier’s operating mode. The
amplier can operate in three dierent modes; Mono Bridge, Stereo, or Parallel
Mono. The amplier is shipped in stereo mode.
13. Channel 2 High Pass Filter Switch - This switch controls the amplier’s
lter mode. The amplier can operate in three dierent lter modes; High Pass,
Low Pass, and By-Pass.
14. Channel 2 Limiter Switch - This switch is used to limit the input level of
channel 2. Use this function to avoid damage to your speakers.
15. Channel 2 XLR/1/4” Input - Channel one combo 3-pin XLR/1/4” balanced
input jack. The 1/4” female jack excepts either a balanced or unbalanced plug.
See page 9 for more details.
16. Channel 2 XLR Link Connector - This XLR jack is used to send a parrallel
signal from channel link jack to another device or amplier.

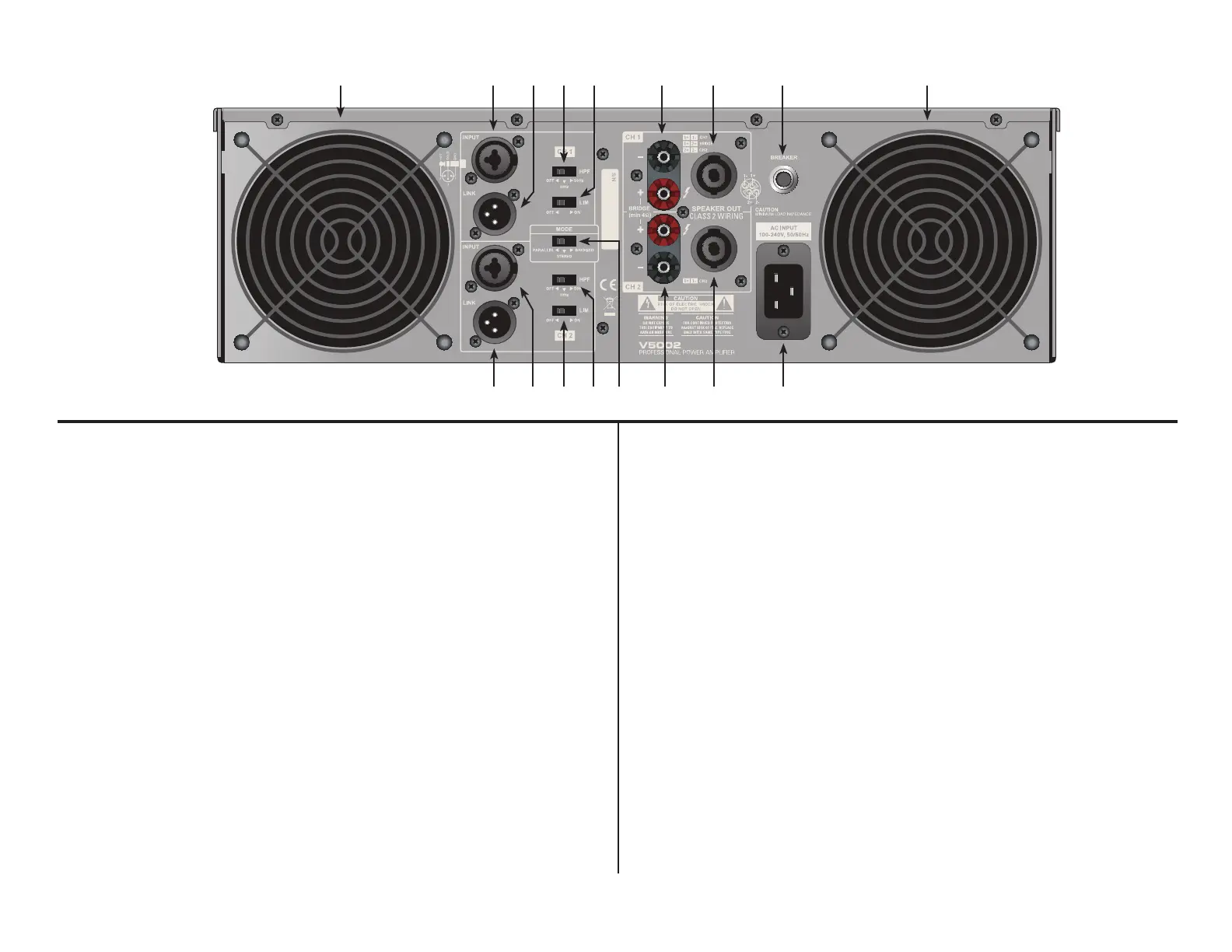

Rear Panel
V5002
V6002
1 2
15 14 13 12 11 10 9
1876543
16
