©American DJ® - www.americandj.com - RollerTron™ Instruction Manual Page 6©American DJ® - www.americandj.com - RollerTron™ Instruction Manual Page 5

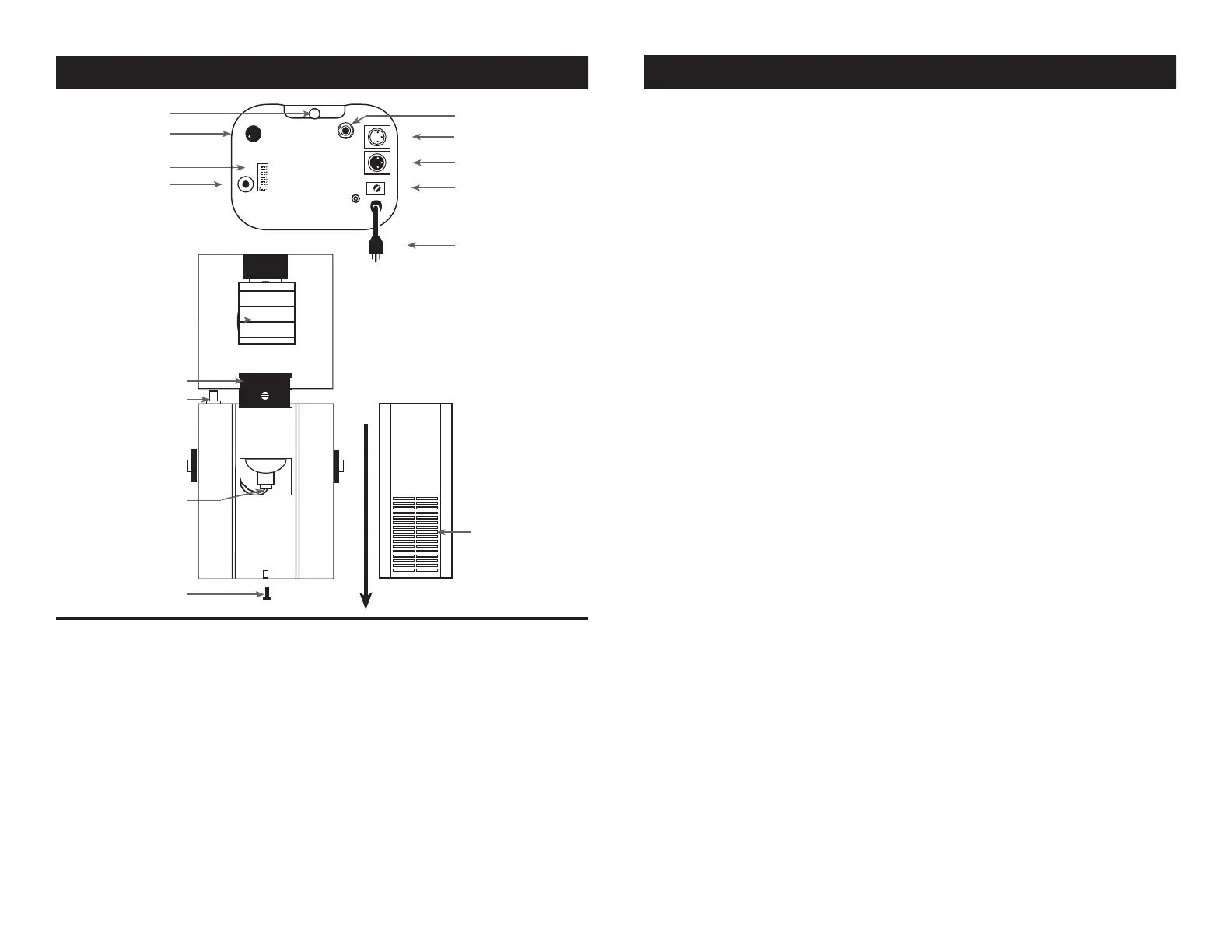

RollerTron™ Controls and Functions
REAR
FRONT
2
6
7
8
4
3
9
1
5
1. Thumb Screw - This thumb screw holds the lamp socket assem-
bly cover (16) into place.
2. Audio Sensitivity Knob - This adjust audio sensitivity of the
INTERNAL MICROPHONE (3). Turning the sensitivity knob in the
clockwise direction will increase the sensitivity to sound. Turning the
knob in the counter clockwise direction will decrease the xture’s sen-
sitivity to sound.
3. Dip Switches - These switches serve two functions. In master-
slave mode these switches are used to assign a specic head address.
In DMX mode these switches are used to assign a DMX address to the
unit. In DMX mode each switch corresponds to a specic value based
on binary code. See page 7 for a detailed explanation of DMX binary
RollerTron™ Controls and Functions
code.
4. Microphone - This microphone receives external low frequencies
to trigger the unit in Sound-Active and Master/Slave mode.
5. Tron/C Controller Jack - This jack is for use with the optional
Tron/C controller only. Do not attempt to connect an audio signal this
jack, this will damage the PC board and void your manufactures war-
ranty!
6. XLR Output Jack - This jack is used to transmit the incoming
DMX signal to another DMX xture, or transmit a Master/Slave signal
to the nest RollerTron™ in the chain. For best results in DMX or Master/
Slave mode terminate this jack if it is the last unit in the chain. See
“Terminator” on page 7.
7. XLR Input Jack - This jack is used to accept an incoming DMX
signal or Master/Slave signal.
8. Breaker - A 6.3A built-in safety breaker to reduce the risk of electri-
cal shock or re and protect the circuitry. In the case of a internal short
or power surge.
9. Power Cord - Connect only to a matching power outlet. Never
use this xture is the ground prong has been removed or broken off.
10. Barrel Mirror - This is a highly reective surface mirror speci-
cally designed to optimize and enhance beam output. Never use glass
cleaner that contain ammonia to clean the surface of the mirror (such
as Windex).
11. Lens - This is a fully focusing high quality lens. Focus the lens by
manually turning the lens in a clockwise or counter-clockwise direc-
tion.
12. Mirror Interface - This connection is used to create an interface
between the mirror head and the unit body. Disconnect this interface
when the unit is going to be used as a color changer with the mirror
piece removed.
13. Lamp Socket Assembly - This assembly holds a LL-ELC (24v/
250w) lamp.
14. Lamp Socket Assembly Plate - This plate accesses the lamp
socket assembly.
13
14
1
11
10
12
