©American Audio® - www.americanaudio.us - Q-SD Instruction Manual Page 29

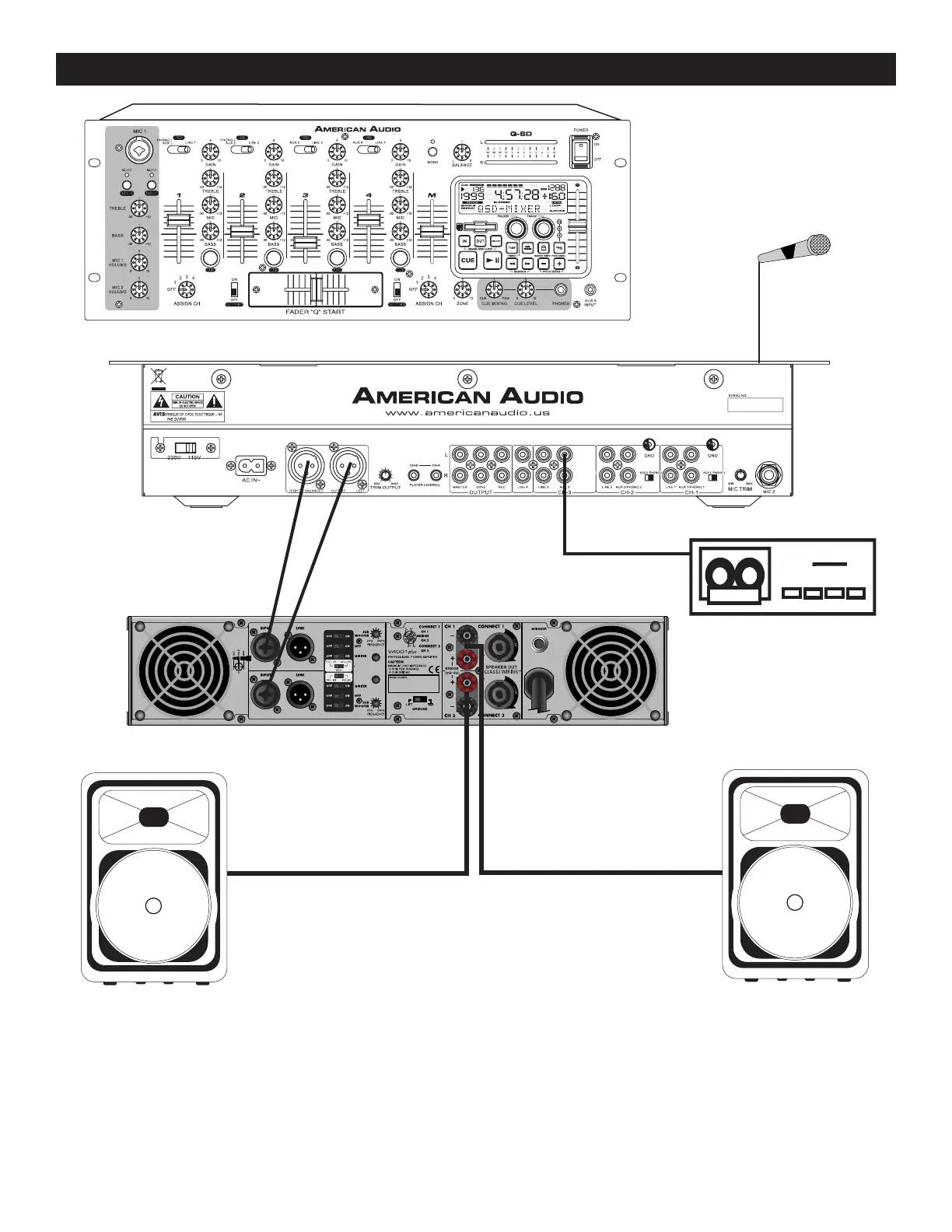

Q-SD TYPICAL MIXER SET-UP
Balanced XLR male to XLR female Cables
American Audio V4001™
Typical Balanced Output Set-up
This image details a typical stereo output layout. Note the use of the Balanced XLR Jacks on both
the mixer and the amplier. Always use the balanced output jacks whenever possible. The balanced
output jacks should always be used for cable runs in excess of 15 feet.
Using the balanced jacks will ensure a clean signal through out the entire audio system.
RCA to RCA Patch Cables
C A S S E T T E D E C K
Speaker Cables
