18. baLaNceD 1/4” Master OutPut Jacks - The Master Output includes a pair of 1/4”
Balanced jacks as well as a pair of rCa unbalanCed JaCks (27). The 3-pin XLR jacks send a
high current balanced output signal. These jacks should be used when you will be driving an amp or
other audio equipment with a balanced input, or whenever you will be running a signal line greater
than 15 feet. Always, use these jacks whenever possible.
19. PLaYer a cONtrOL - This jack is used to control the “Q-Start” function between the mixer
and a compatible American Audio® or American DJ® CD Player. Using the mini plug included with
your CD player, connect from the CD player controller out jack to this jack. Player A “Q-Start”
functionallity will be controlled by the left side of the CrossFader (12). For more information on
“Q-Start” functionallity refer to the user manual included with your CD player. Be sure to only use
the mono tip mini plug included with your CD player to avoid damage to the mixer and/or the CD
player.
20. PLaYer b cONtrOL - This jack is used to control the “Q-Start” function between the mixer
and a compatible American Audio® or American DJ® CD Player. Using the mini plug included with
your CD player, connect from the CD player controller out jack to this jack. Player B “Q-Start”
functionallity will be controlled by the left side of the CrossFader (12). For more information on
“Q-Start” functionallity refer to the user manual included with your CD player. Be sure to only use
the mono tip mini plug included with your CD player to avoid damage to the mixer and/or the CD
player.
21. cHaNNeL 1: PHONO 1 iNPut - Connect turntables equipped with MM pickup cartridge to
PHONO inputs (All DJ turntable use MM pick-up cartridges). The red colored RCA jack represents

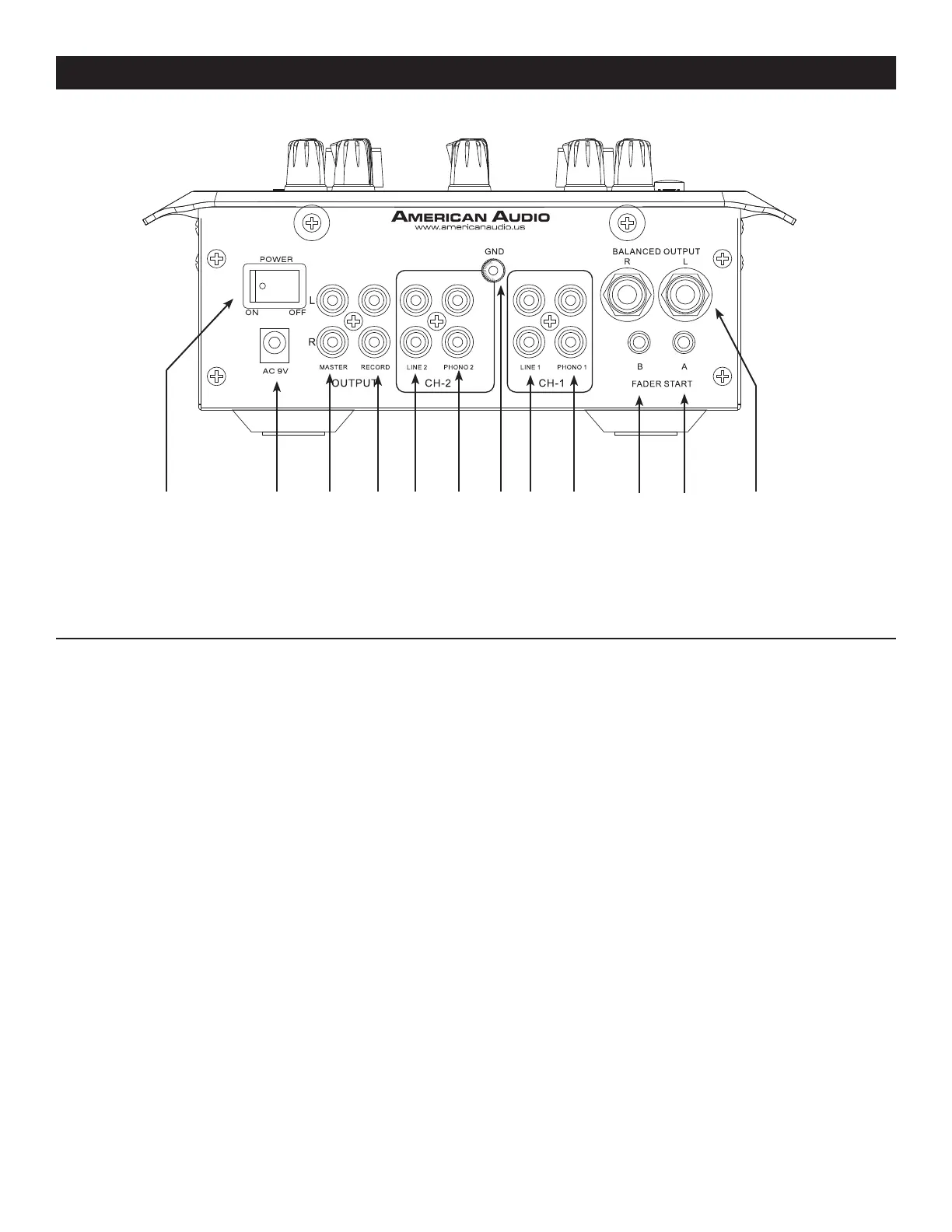

Rear Panel
Q-D1 PRO CONTROLS AND FEATURES CONT.
©American Audio® - www.AmericanAudio.us - Q-D1 PRO Instruction Manual Page 11
