PITCH ADJUSTMENTS
©American Audio® - www.americanaudio.us - PSX™ Instruction Manual Page 22
1. PITCH SLIDER:
This function will increase or decrease the tracks playback speed or "PITCH." The
maximum pitch percentage manipulation in this function is +/-16%. The
PITCH
SLIDER (17)
is used to decrease or increase the playback pitch. If the slider is
move up (towards the top of the unit) the pitch will decrease, if the slider is moved
down (towards the bottom of the unit) the pitch will increase. The PITCH SLIDER
(17) adjustment can be changed to range from +/-8%, +/-12%, or +/-16% (See
changing "PITCH SLIDER PERCENTAGE RANGE" on the next page). This pitch
adjustments will effect normal playback and loops only when the Pitch On/Off
Button (24) is turned on. The pitch adjustments will not effect your samples.
TRAN SECHOSCRA TCH FLA NGER
PARA METER
SGL/ CT
N
TIME AUTO
CUE
SAMP LE PIT CH
CUE
1 2 3 4 5 6 7 8 9 0
REL OOP
SIN GLE
LOO P
REM AIN
TOTA LELA PSED
M
T
S
.
F
PITC H
CUE
AUT O
HOLD
EJE CT/
STOP
8%/12%/ 16% ON/O FF

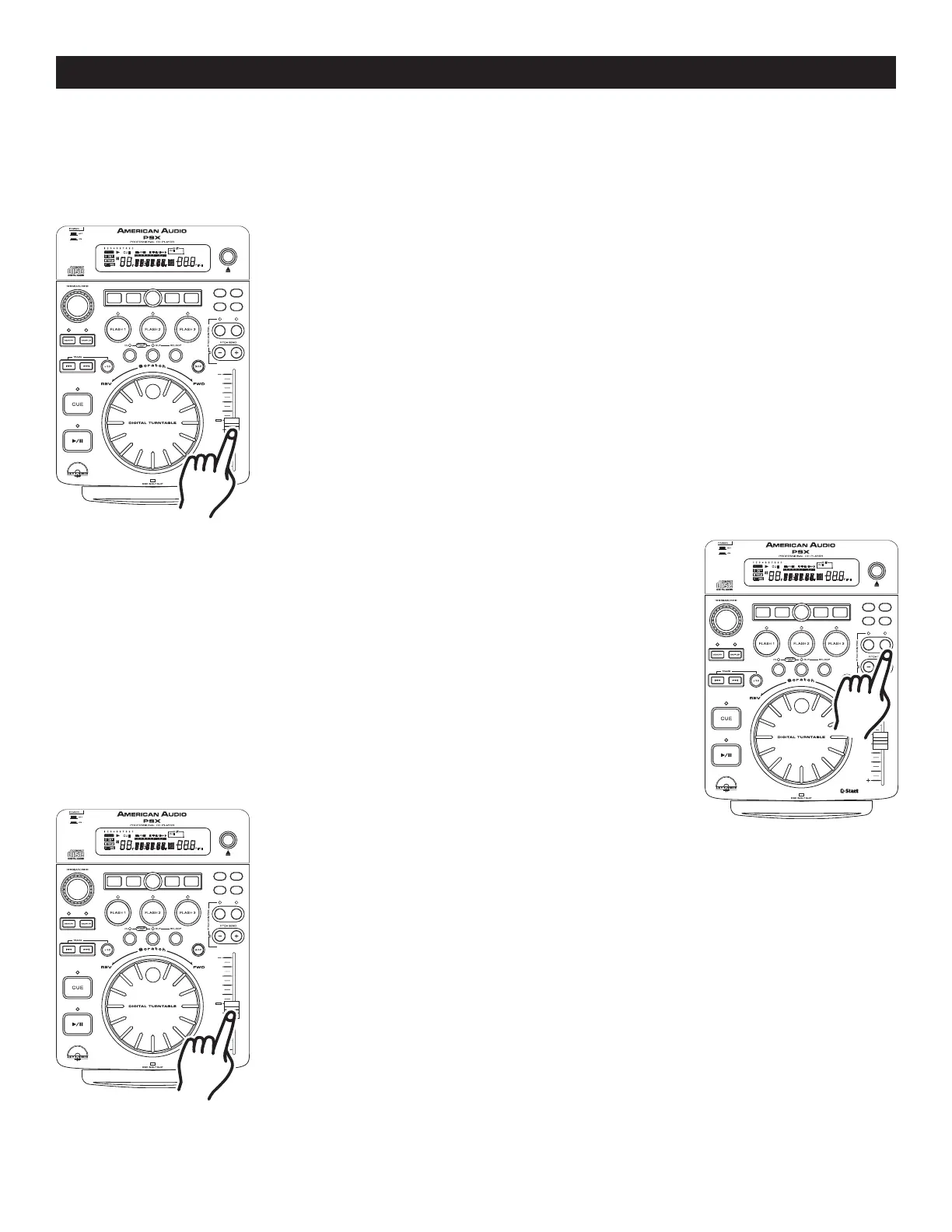

Figure 38
Figure 40
Figure 39
Using the Pitch Slider (17): Be sure the pitch function has been engaged
as described above. To use the pitch slider (17) slide the slider up and down.
Down will increase the pitch and up will decrease the pitch. When the slider
is in the center position, a green LED just left of the slider will glow. When this
slider is glowing there is zero pitch being applied to the track, regardless if the
pitch function is on or off.
Activating the Pitch Slider (17): To activate the PITCH SLIDER (17) you
must turn on the pitch adjustment function. Press the
ON/OFF BUTTON (24)
located in the pitch control section of the unit. The ON/OFF BUTTON (24)
LED
will glow when the function is activated. If the pitch function is not activated the
PITCH SLIDER (17)
will not function.
PITCH ADJUSTMENTS:
The different pitch adjustments allow a track's or a loop's playback speed to be manipulated. This speed manipu-
lations is commonly used to beat match between two or more music sources such as a turntable or another CD
played. The playback speed may be increased or decreased by a factor of +/-100. The next section details the
different pitch manipulation schemes.
TRAN SECHOSCRA TCH FLA NGER
PARA METER
SGL/ CT
N
TIME AUTO
CUE
SAMP LE PIT CH
CUE
1 2 3 4 5 6 7 8 9 0
REL OOP
SIN GLE
LOO P
REM AIN
TOTA LELA PSED
M
T
S
.
F
PITC H
CUE
AUT O
HOLD
EJE CT/
STOP
8%/12%/ 16% ON/O FF
TRAN SECHOSCRA TCH FLA NGER
PARA METER
SGL/ CT
N
TIME AUTO
CUE
SAMP LE PIT CH
CUE
1 2 3 4 5 6 7 8 9 0
REL OOP
SIN GLE
LOO P
REM AIN
TOTA LELA PSED
M
T
S
.
F
PITC H
CUE
AUT O
HOLD
EJE CT/
STOP
8%/12%/ 16% ON/O FF
