©American Audio® - www.americanaudio.us - M1224FX Instruction Manual Page 14
INPUT AND OUTPUT CONNECTIONS:
28. CHANNEL INPUT JACKS -
mIC JACKS - These are balanced 3-pin XLR-type input jacks.
BALANCED LINE IN JACKS - These standard 1/4” TRS phone jack are used for balanced or
unbalanced line level signals. Some examples of line level equipment include most electronic key-
boards, synthesizers, turntables (with appropriate pre-amps), tape decks and line outputs from
other mixers.
29. CHANNEL STEREO INPUT JACKS - These are unbalanced stereo line input jacks. The two
jacks provided are 1/4” and RCA.
30. TAPE INPUT JACKS - These RCA jacks are used to connect a stereo sound source. Use these
jacks when you want to connect a CD, cassette, or DAT, directly to the mixer for monitoring. Use
the TAPE IN CONTROL to adjust the signal level.
31. REC OUT JACKS - These jacks send the PRE FADER signal from the master bus to a tape
deck for recording.

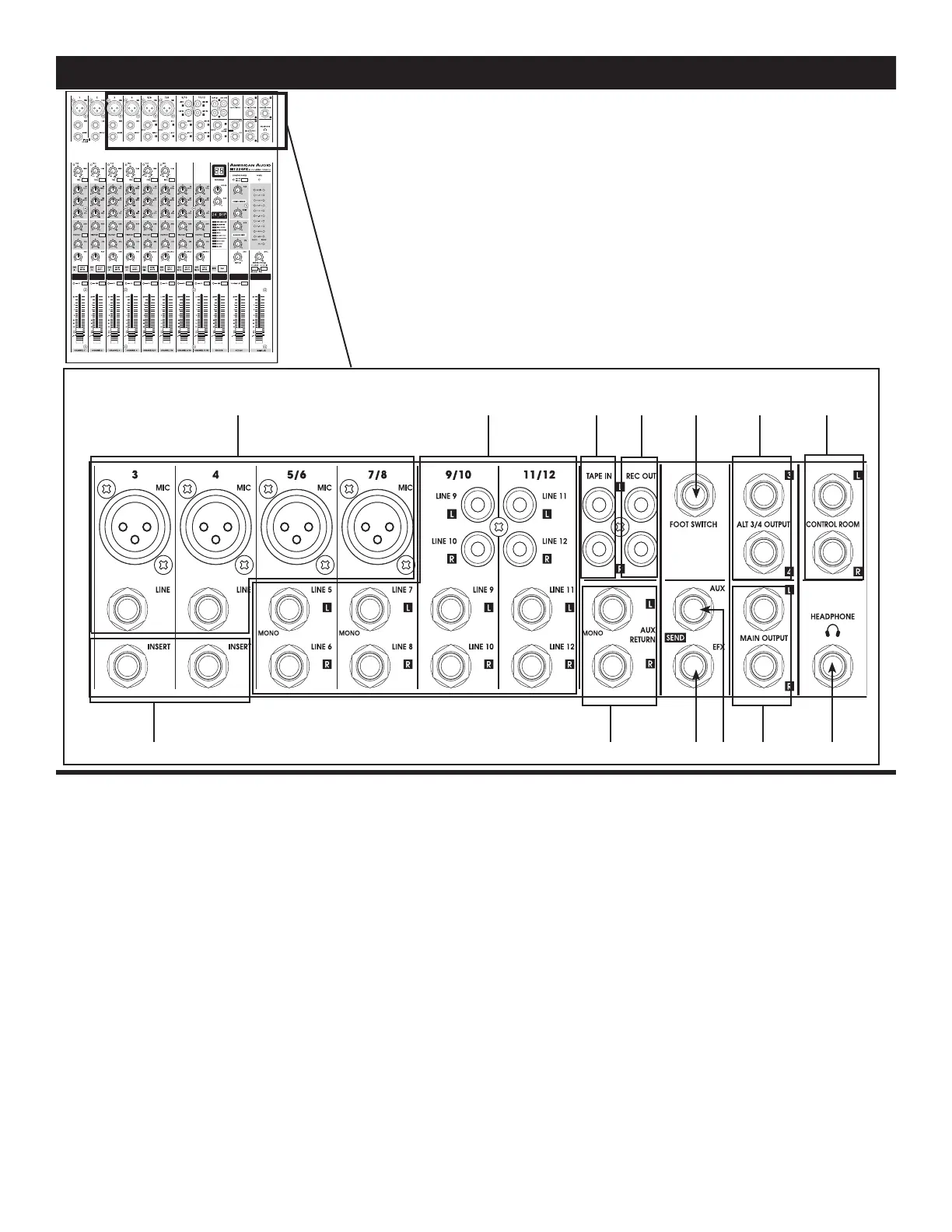

M1224FX iNPUT aNd OUTPUT CONNECTiONS
INPUT AND OUTPUT CONNECTIONS
33
3130
32
2928
40 363839 3537
34
