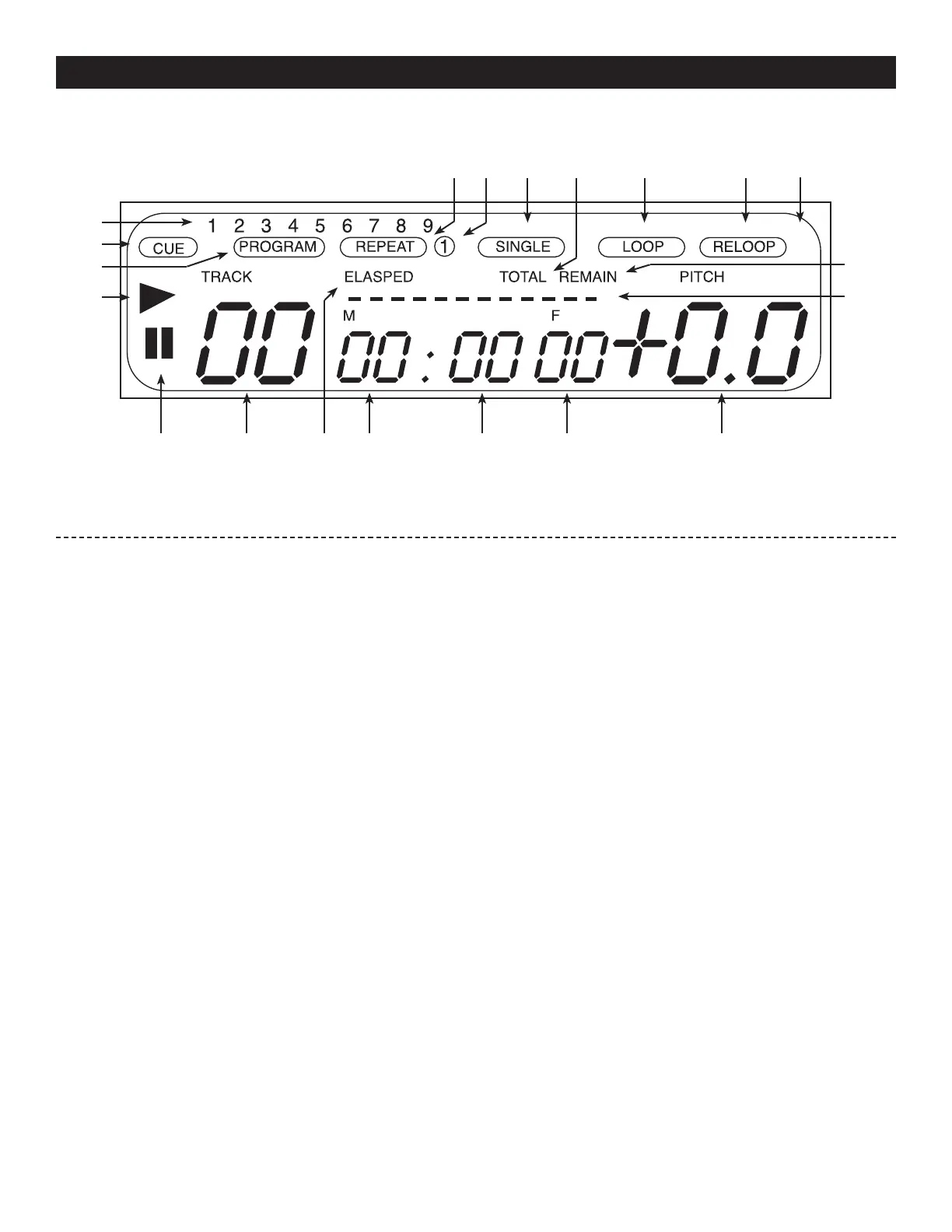

LIQUID CRYSTAL DISPLAY (LCD)
E. LCD DISPLAY (FIGURE 7)
50. FUNCTION INDICATORS - These indicators
serve two functions; Indicators 1-3 detail which
effect is active, Indicators 6-9 detail a cue point
stored in memory.
51. CUE INDICATOR - This indicator will glow
when the unit is in CUE mode and will flash every
time a new CUE POINT is recorded in memory
(see setting CUE POINTS on page 20
).
52. PROGRAM INDICATOR - This icon indicates
"Program Mode" is activated. See Program Play
on page 23 for more information on programing.
53. PLAY INDICATOR - This indicator will glow
when the unit is in play mode.
54
. PAUSE INDICATOR - This indicator will glow
when the unit is in pause or cue mode.
55. TRACK INDICATOR -
This double digit indi-
cator details a current track. The number dis
-
played in the track indicator is a direct reference
to a track being selected for programming or a
track in play, pause, or cue mode.
56. ELAPSE INDICATOR -
This indicator is in
direct reference to the TIME METER (57, 58, &
59
) When the ELAPSE indicator is displayed in
the LCD (14), the time defined will refer to a single
track's elapsed time. The time mode is changed
by the tapping on the TIME BUTTON (5).
57. MINUTES METER - This meter will display
the elapse, total, or remaining time in minutes.
The display time will be indirect referenc
e to the
current time mode.
58. SECONDS METER -
This meter will display
the elapse, total, or remaining time in seconds.
The display time will be indirect reference to the
current time mode.
59. FRAME METER -
This meter will display the
elapse, total, or frames. The displayed frames will
be indirect reference
to the current time mode.
60. PITCH METER -
This meter displays the
pitch percentage being applied to playback by
the PITCH SLIDER (23). If the meter read zero
regardless of the PITCH SLIDER'S (23
) position,
the PITCH (7) function is not activated.
61. TIME BAR INDICATOR - This bar visually
details the time defined in the TIME METER (57,
©American Audio® - www.americanaudio.us - DCD-PRO610™ Instruction Manual Page 14
LCD DISPLAY
s
69
Figure 7
54 55 56 57 58 59 60
61
62
636465666768
50
51
52
53
