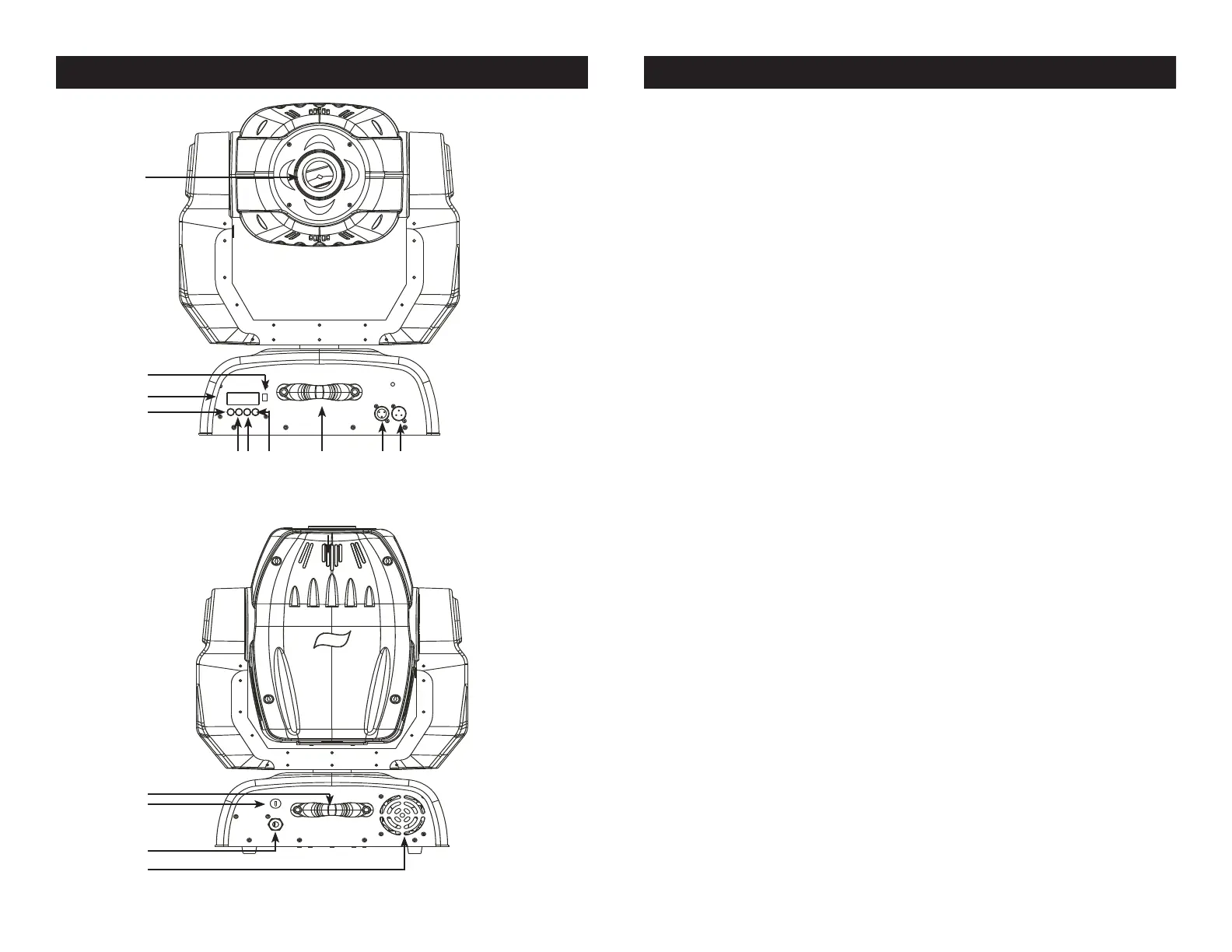

Accu Spot Pro Controls and Functions

REAR

FRONT

Accu Spot Pro Controls and Functions

1. Lens Assembly - This is a high quality lens that is focused by

using the Lamp Optimization in DMX Mode.

2. Software Update Input Jack - This jack is used to update the

latest software version into the unit.

3. Digital Display - This display shows the menu and operating func-

tions that you can choose from.

4. Mode/ESC Button - This button is used to exit menus and to scroll

backwards through certain menus only.

5. Up Button - This button is used to scroll forward when navigating

through the system menu.

6. Down Button - This button is used to scroll backwards when navi-

gating through the system menu.

7. Enter Button - This button is used to select and conrm a func-

tion when working in the system menu. It is also used to exit certain

menus.

8. Carrying Handles - The includes built-in carrying handles. Be sure

to always handle the unit by the built-in handles. Never lift or carry-

ing the unit by head or yoke. Pulling on or transporting the unit by the

moving head may severely damage the unit and will void the unit war-

ranty.

7. Microphone - This microphone receives external low frequencies

to trigger the unit in Sound-Active mode. This microphone is designed

to receive low frequency sounds only, tapping on the microphone and

high pitch sounds may not trigger the unit.

9. XLR Output Jack - This jack is used to transmit the incoming

DMX signal to another DMX xture, or transmit a Master/Slave signal

to the next Accu Spot Pro in the chain. For best results in DMX or

Master/Slave mode terminate this jack if it is the last unit in the chain.

See “Terminator” on page 11.

10. XLR DMX Input Jack - This jack is used to receive an incoming

DMX signal or Master/Slave signal.

11. Fuse Holder - This housing stores a 8 amp (4 amp 220v) GMA pro-

tective fuse. Never defeat the fuse, the fuse is designed to protect the

65 7 9 108
