23Lockit+ Users Manual |

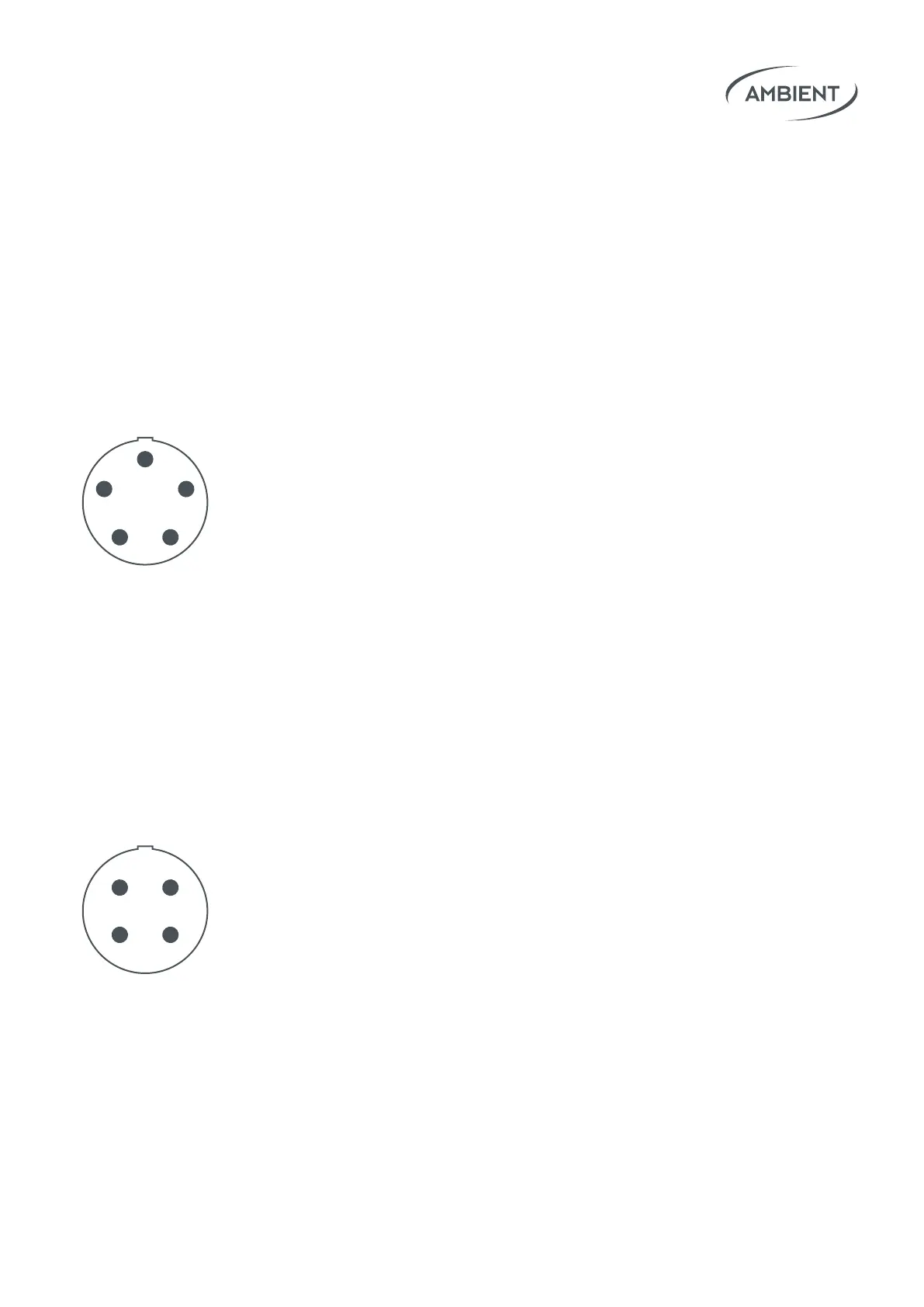

11.2 Connector Pinouts

Blue ACN Connector and Yellow Sync Connector

Accept LEMO FGG.0B.305 and compatible push-pull plugs

Connectors carry TC in and out as per industry standard,

plus sync on one and ACN metadata on the other.

They accept Lemo FGG.0B.305 compatible push-pull plugs.

Hirose

Primary DC port, connect your external power supply here.

Trilevel Sync Out Impedance 75Ω / Dual Load: 38Ω

LTC Out Impedance 1kΩ

LTC In Impedance 15kΩ

Antennas

SMA type F, leave supplied antenna attached, only substitute with

original replacements ANT-2.4-SMA-M(90)

ACN SYNC (yellow cable)

1 GND GND

2 TC in TC in

3 ACN TX PPF out

4 ACN RX Sync out

5 TC out TC out

Hirose HR10-7P-4P or compatible

1 GND

2 NC

3 NC

4 6-24V DC

1

5

4

2

3

2

1

3

4
