9

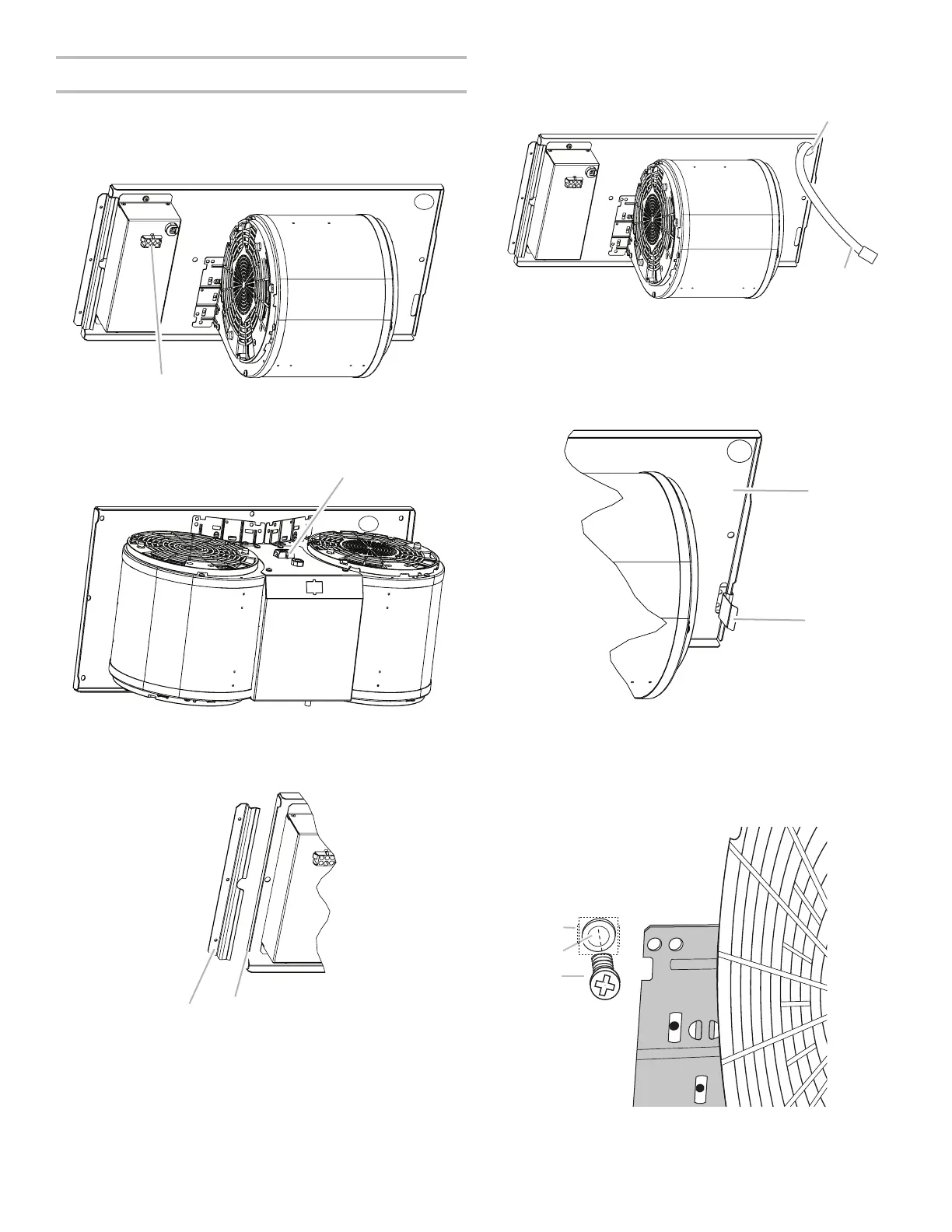

Install Hood Liner Internal Blower Motor
1. Install the hood liner blower motor assembly inside the hood
liner canopy with the wiring connection to the left for the
single motor system and to the front or top for the dual motor
system.
Single Blower Motor Assembly
Dual Blower Motor Assembly
2. Slide the left mounting plate ange under the motor mounting
bracket.
3. Run the power supply wires and connector from the range
hood through the hole in the right end of the motor mounting
plate.
4. Push the right end of the motor mounting plate up and snap it
into the spring tab.
NOTE: The spring tab should be outside the slot in the mounting
plate.
5. Align mounting holes in motor mounting plate with motor
mounting clip nuts and install 6 x 16 mm screws and 6.4 mm
lock washers (quantity 2 for single motor; quantity 5 for dual
motor).
A
A. Wiring connection
A
A. Wiring connection
A. Motor mounting bracket
B. Mounting plate left flange
BA
A
B
A. Motor mounting plate hole
B. Power supply wires and connector
A
B
A. Motor mounting plate
B. Spring clip
A
B
C
A. Screw with lock washer
B. Mounting hole in motor mounting plate
C. Clip nut (6 mm)
