Parts Needed: (if not supplied with washer)
Inlet hoses with flat washers
NOTE: Various inlet hose
options are available; check
your Quick Start Guide for
ordering information.
Alternate Parts: (not supplied with washer)
Your installation may require additional parts. To order, please
refer to the contact information referenced in your Quick Start
Guide.
If you have:
You will need:
Overhead sewer Standard 20 gallon (76 L) 39" (990 mm)
tall drain tub or utility sink, sump pump,
and connectors (available from local
plumbing suppliers)
1" (25 mm) standpipe 2" (51 mm) diameter to 1" (25mm)
diameter standpipe adapter and
connector kit
Drain hose too short Extension drain hose and connector kit
Lint-clogged drain Drain protector and connector kit
Location Requirements
Select proper location for your washer to improve performance
and minimize noise and possible “washer walk.” Install your
washer in a basement, laundry room, closet, or recessed area.
IMPORTANT: Do not install, store, or operate washer where it will
be exposed to weather or in temperatures below 32°F (0°C).
Water remaining in washer after use may cause damage in low
temperatures. See “Washer Maintenance and Care” for
winterizing information.
Proper installation is your responsibility.
You will need:
� A water heater set to 120°F (49°C).
� A grounded electrical outlet located within 4 ft (1.2 m) of power
cord on back of washer.
� Hot and cold water faucets located within 3 ft (0.9 m) of hot
and cold water fill valves on washer, and water pressure of
20–100 psi (138–690 kPa).
� A level floor with maximum slope of 1" (25 mm) under entire
washer. Installing on carpet or surfaces with foam backing is
not recommended.
� Floor must support washer’s total weight (with water and load)
of 315 lbs. (143 kgs).

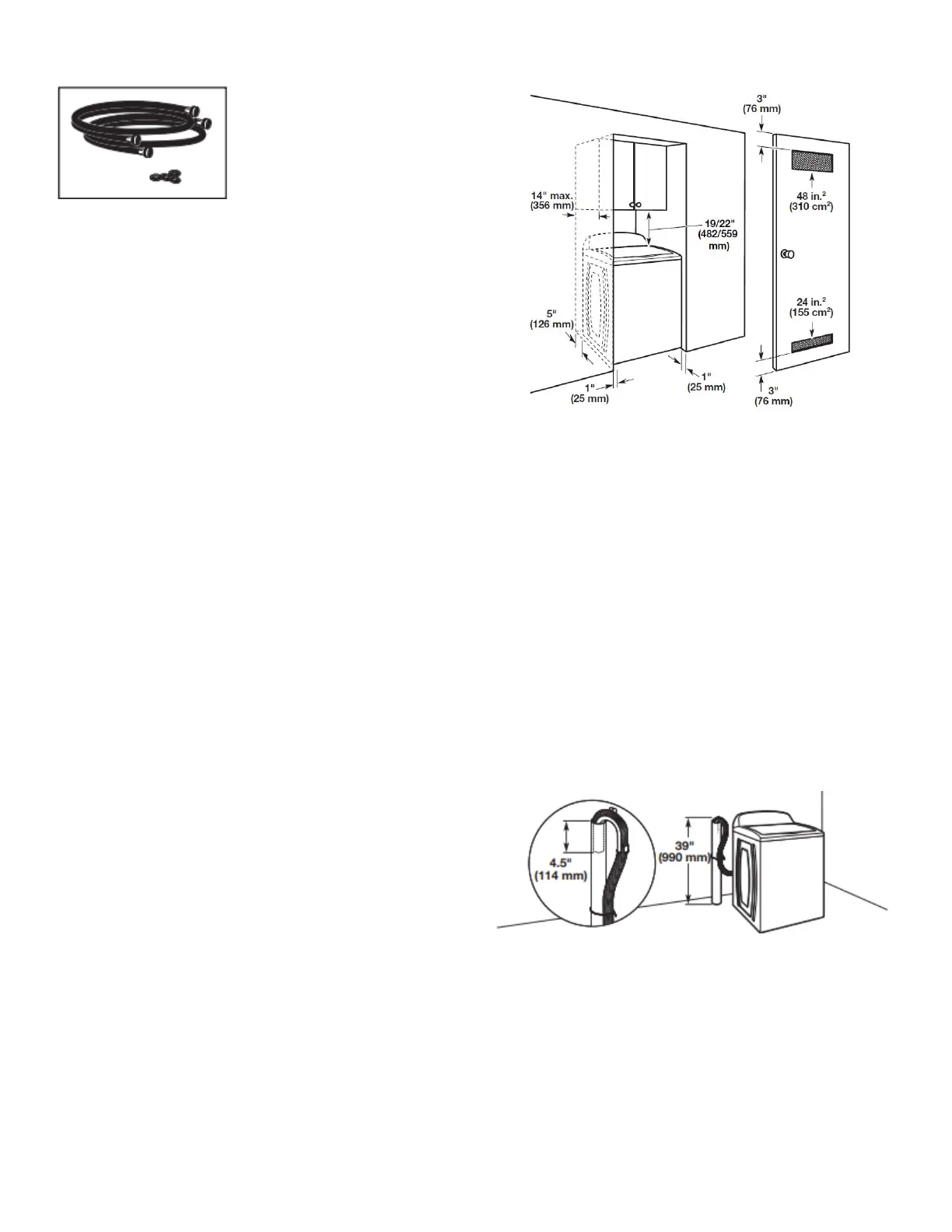

Recessed area or closet installation
NOTE: All 27" wide washers should have 19" clearance, while all
29" wide washers should have 22" clearance.
All dimensions show recommended spacing allowed, except for
closet door ventilation openings, which are the minimum required.
This washer has been tested for installation with spacing of 0"
(0 mm) clearance on the sides. Consider allowing more space for
ease of installation and servicing, and spacing for companion
appliances and clearances for walls, doors, and floor moldings.
Add spacing of 1" (25 mm) on all sides of washer to reduce noise
transfer. If a closet door or louvered door is installed, top and
bottom air openings in door are required.
*For additional details (or information) specific to your model, refer
to your Quick Start Guide.
Drain System
Drain system can be installed using a floor drain, wall standpipe,
floor standpipe, or laundry tub. Select the method you need.
IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm) of
drain hose should be inside standpipe or below the top of wash
tub. Secure drain hose with cable tie.
Floor standpipe drain system
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gallon (64 L) per minute. Top of standpipe
must be at least 39" (990 mm) high; install no higher than
96" (2.44 m) from bottom of washer. If you must install higher than
96" (2.44 m), you will need a sump pump system.
