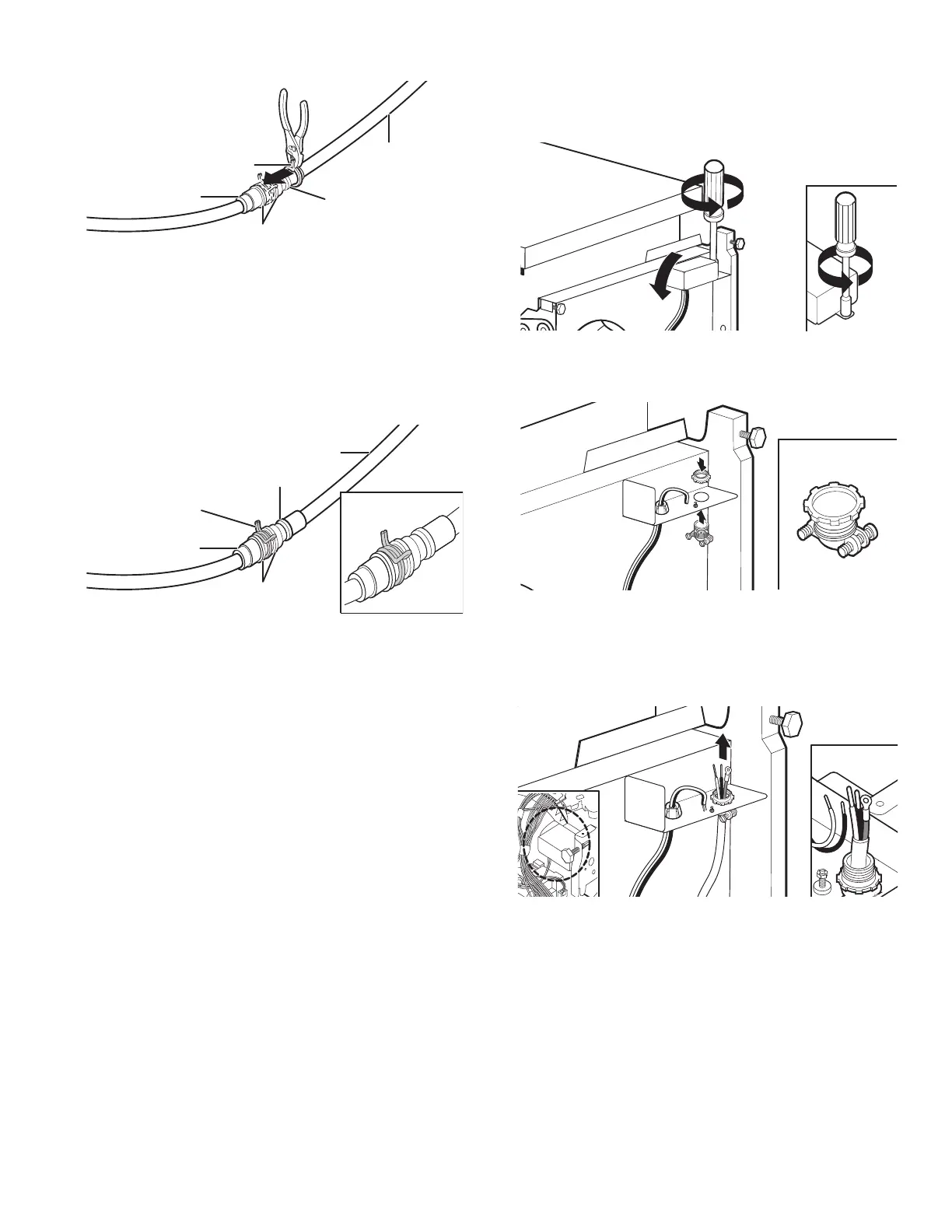

20. Slide clamp onto connector
A
B
C
D
E
A. Small clamp
B. Rubber drain
hose connector
C. Stop
D. Drain hose stop
E. Drain hose
Using pliers, squeeze open the small drain hose clamp, and
slide it onto the connector between stops.
21. Hose clamp final position
A
B
C
D
E
A. Drain hose
B. Drain hose stop
C. Small clamp
D. Rubber drain hose
connector
E. Stop
NOTE: Route drain hose out the rear of the dishwasher.
Power Cord Connection
NOTE: If removing a previous dishwasher with a power cord, you
will need to transfer the power cord to the new dishwasher.
22. Remove terminal box cover
Using a 1/4" hex-head socket, nut driver, or Torx
®
T20
®
screwdriver, remove terminal box cover. Retain for later use.
23. Install strain relief
Install the metallic strain relief provided in this kit (Straight:
Whirlpool Part Number 4317824, 90°: Whirlpool Part Number
W10278923RP). Make sure screw heads are facing to the
left when tightening conduit nut. Strain relief is provided with
the power cord kit.
24. Power cord – route cord into terminal box
Route cord so that it does not touch dishwasher motor or
lower part of dishwasher tub. Pull cord through strain relief in
terminal box.
NOTE: A maximum of 2 power cord supply conductors (12
AWG largest size) plus 1 grounding conductor are permitted
in the terminal box.
