INSTALLATION
Vect or H™ Seri es ▪ Ope rato r’s Man ual ▪ MN-462 95 ▪ R ev 1 ▪ 1 1/19
37
Continued from previous page

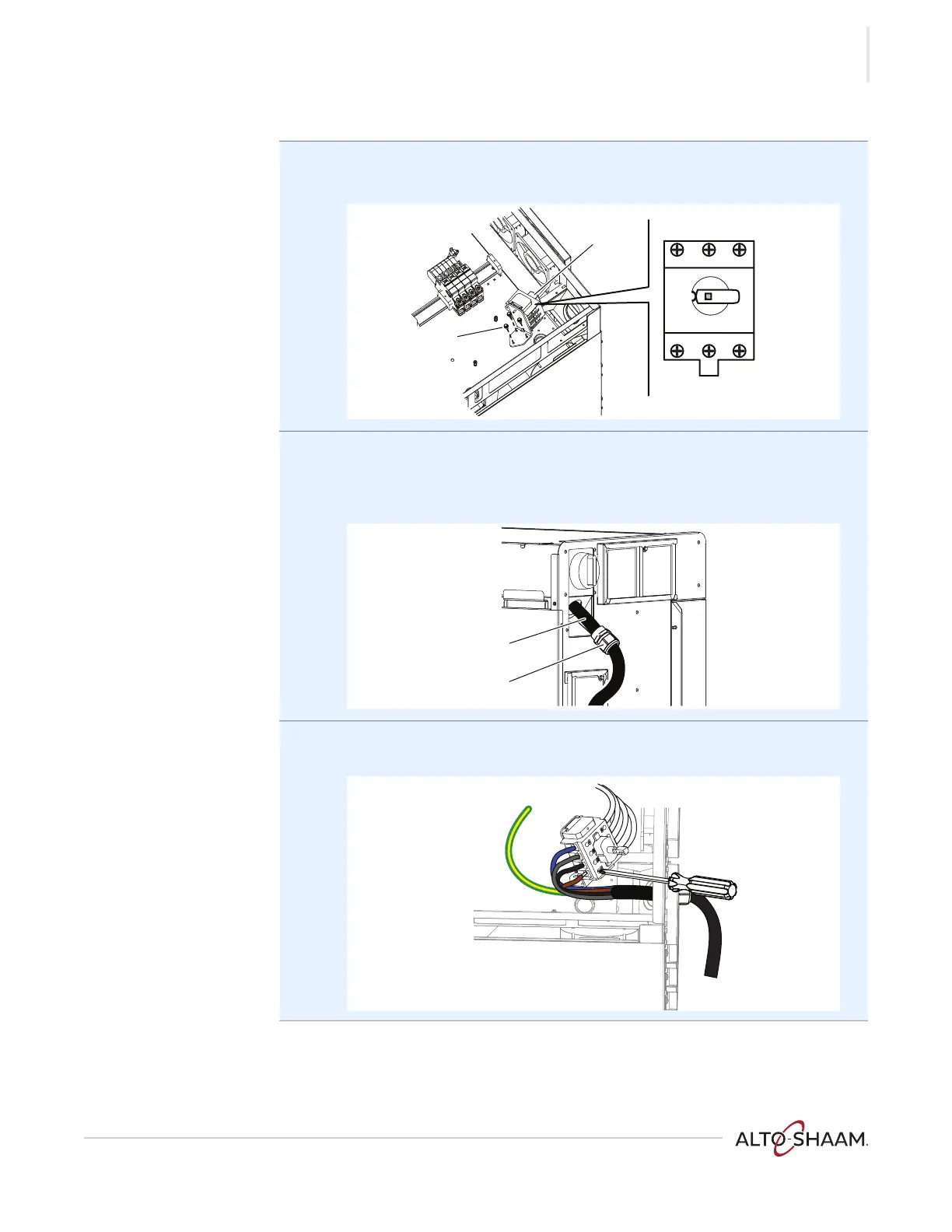

5. Remove the bottom 3 screws b from the mounting bracket.
Remove the main disconnect switch c from the mounting bracket.
6. Install the cord d through the cord grip e.
Install the cord and cord grip into the oven.
Install the lock nut onto the cord grip.
7. Connect the supply cord to the appropriate terminals (L1, L2, L3, etc.) in
accordance with local codes and regulations.
Continued on next page
VMC-TS-001815
1L1
2T1
3L2
4T2
5L3
6T3
c
b
VMC-TS-007946
d
e
VMC-TS-002872
VMC-H4 VMC-H4H
VMC-H3 VMC-H3H
