INSTALLATION
Vector™ F Series ▪ Operator’s Manual ▪ MN-39279 ▪ Rev 01 ▪ 1/18
31
Continued from previous page

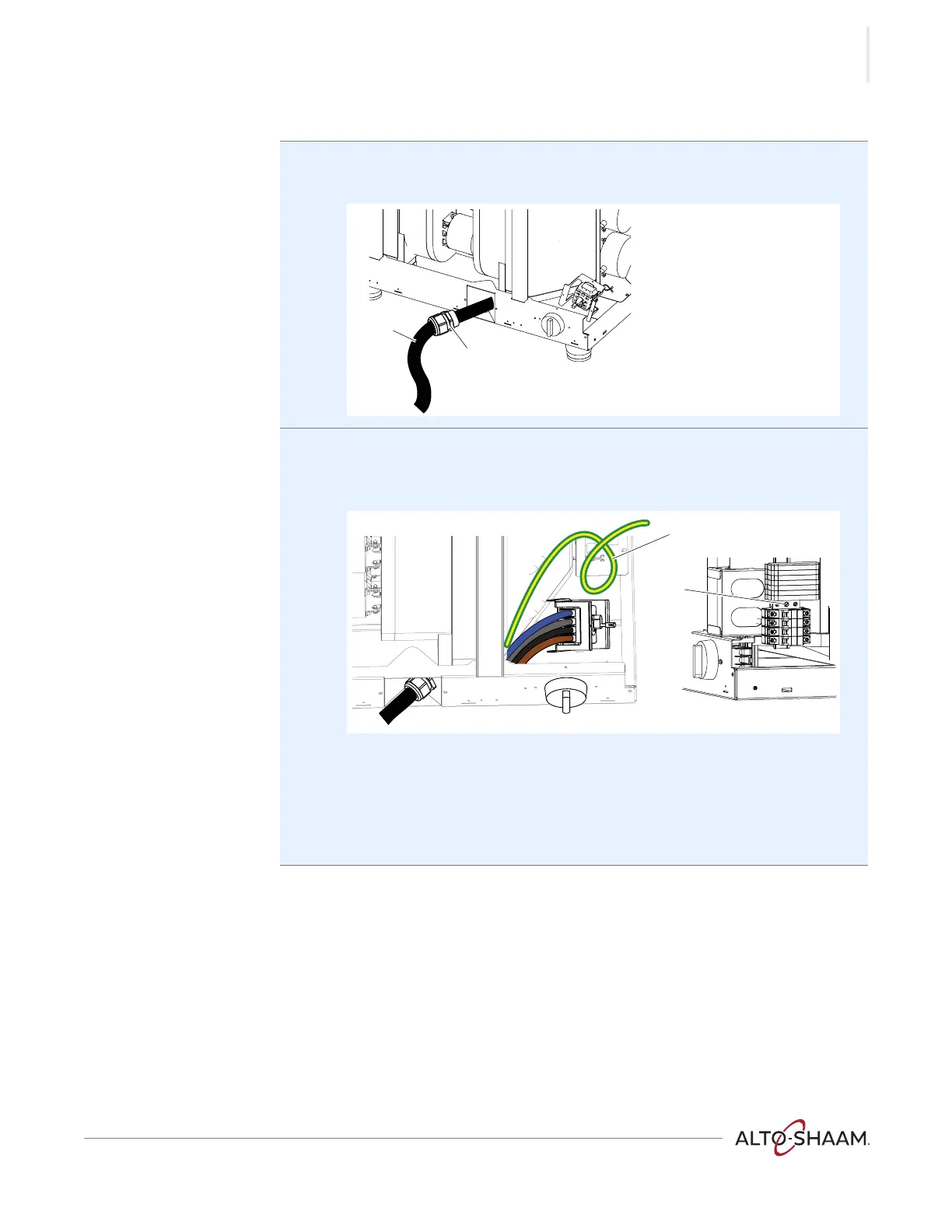

9. Install the cord f through the cord grip g.
Install the cord and cord grip into the oven.
10. Install the lock nut onto the cord grip.
Connect the supply cord to the appropriate terminals (L1, L2, L3, etc.) in
accordance with local codes and regulations.
Install the ground wire to the ground terminal h.
Leave an extra loop i so that current-carrying conductors become taut
before the ground wire if the cord is accidentally pulled. Follow applicable
regulations.
Tighten the cord grip sealing nut onto the supply cord.
Continued on next page
VMC-TS-003109
f
g
VMC-TS-003112
i
h
