INSTALLATION
Converge® ▪ Operator’s Manual ▪ MN-47239 ▪ Rev 4 ▪ 4/24
46

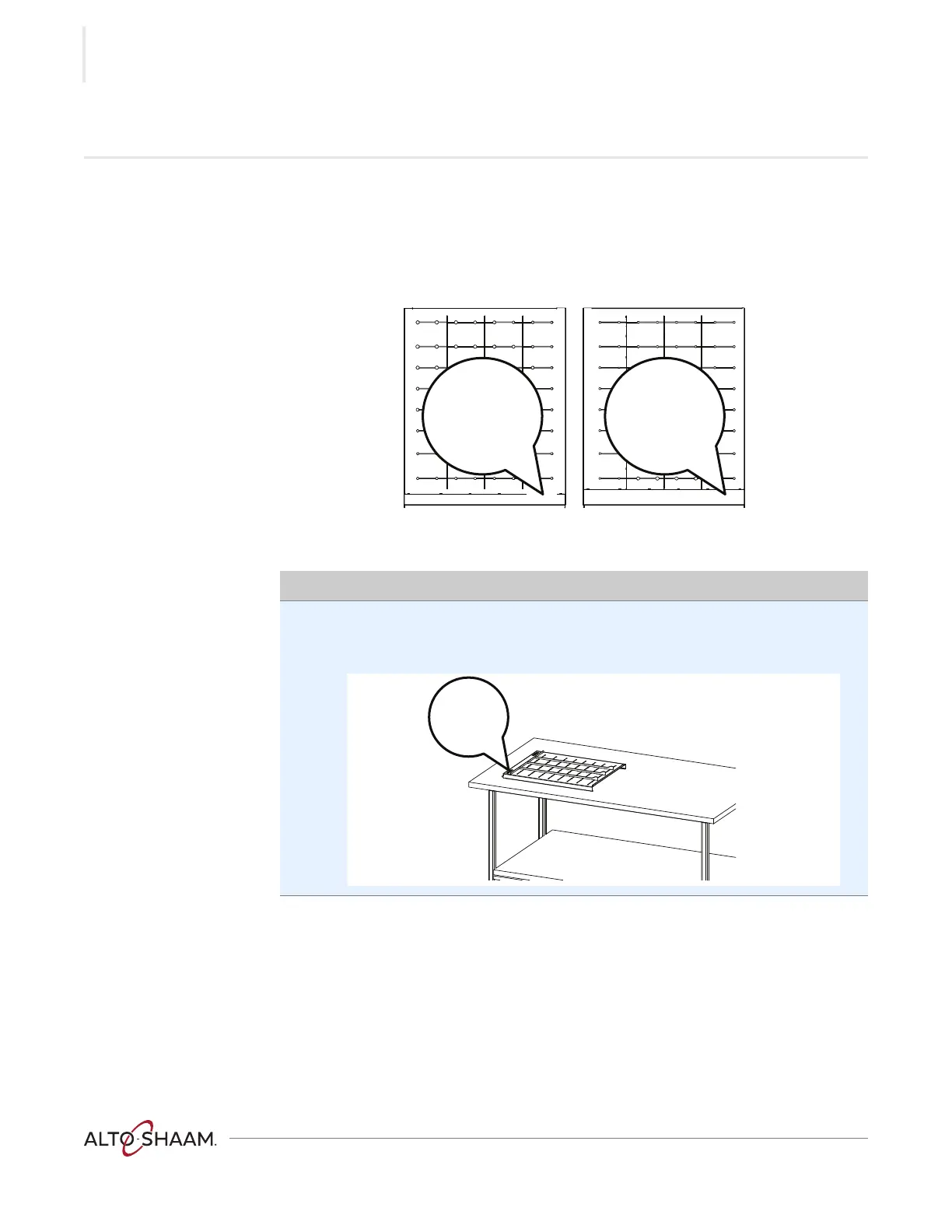

How to Install the Jet Plates
Background Each jet plate assembly consists of one inner panel and one outer panel. There
are two unique jet plate assemblies used on the Converge oven. The difference is
in the outer panel used. One type (5034275) is used on the lower section of each
chamber. The other type (5029717) is used on the upper section of each
chamber. The inner panels used are the same for both types of assemblies.
Procedure
To install the jet plates, do the following.
Step Action
1. Each outer panel has the part number etched into the right corner. Locate
the part number on all outer panels. Place an outer panel on a table with the
part number facing up.
Continued on next page
CT-TS-016595
50297175034275
50297175034275CONVERGE CONVERGE
CT-TS-016599
5034275
5029717
