AR-7H Hot Holding Rotisserie Companion Operation & Care Manual • 4
InstallatIon
AR-7H Hot Holding Rotisserie Companion Operation & Care Manual • 4

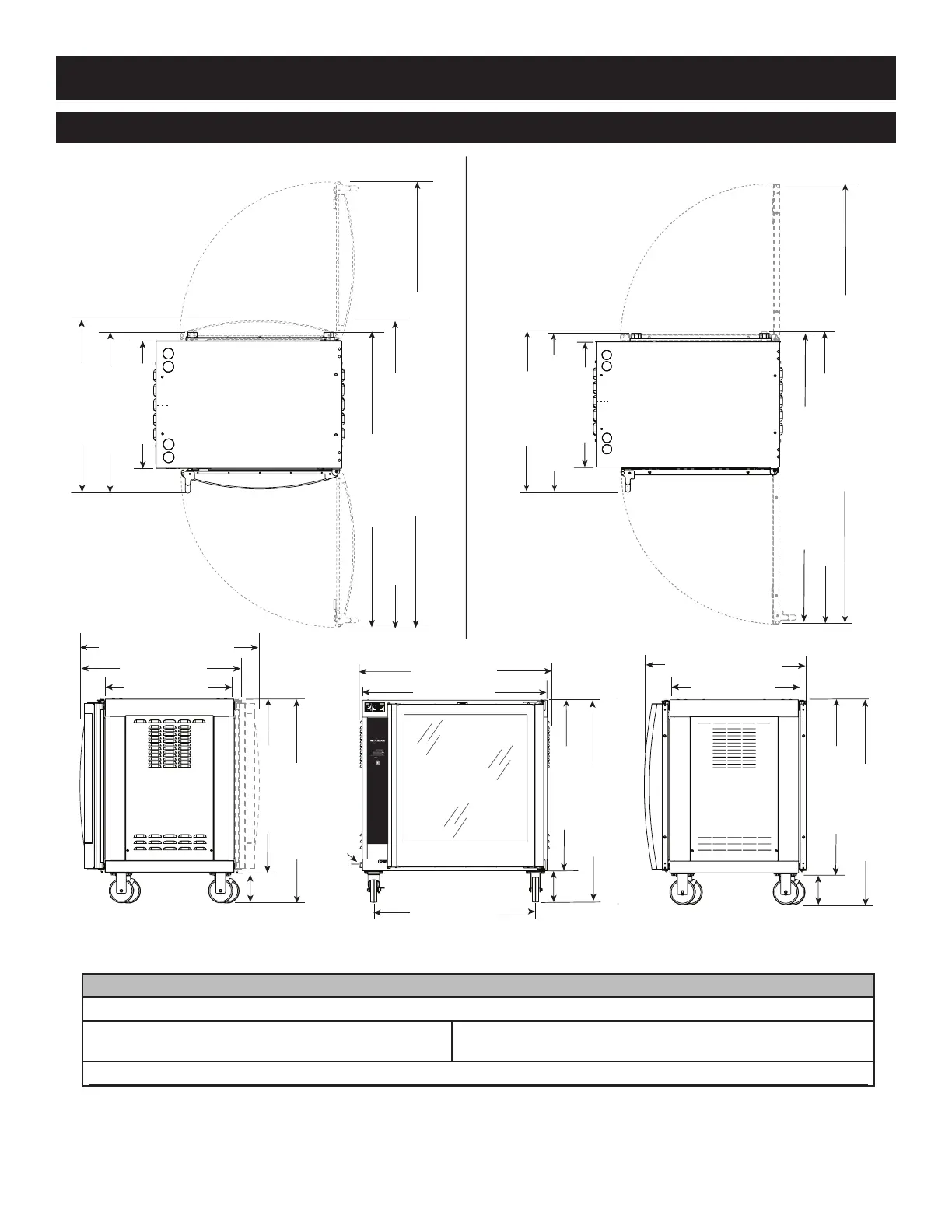

sItE InstallatIon
37-1/8" (942mm)
38-1/8" (968mm)
Electrical Connection
on side at base of unit
32-1/16" (814mm)
WITH SOLID BACK
25-1/2" (646mm)
58-3/4" (1491mm)
WITH SOLID BACK
PASS-THROUGH OPTION
88-11-/16" (2252mm) WITH PASS-THROUGH OPTION
61-3/16" (1554mm) WITH PASS-THROUGH OPTION
25-1/2" (646mm)
34-1/2" (876 mm)
WITH PASS-THROUGH OPTION
40-1/2" (1028mm)
34-1/4" (869mm)
6-1/4"
(159mm)
32-7/16" (824mm)
34-1/2" (876mm)
WITH PASS-THROUGH OPTION
6-1/4"
(159mm)
40-1/2" (1028mm)
34-1/4" (869mm)
Electrical Connection
C
L
32-1/16" (814mm)
WITH SOLID BACK
CORD LENGTH
120V - 72" (1829mm)
208-240V - 108" (2743mm)
230V - 108" (2743mm)
37-1/8" (942mm)
38-1/8" (968mm)
Electrical Connection
on side at base of unit
32-1/16" (814mm)
WITH SOLID BACK
25-1/2" (646mm)
58-3/4" (1491mm)
WITH SOLID BACK
PASS-THROUGH OPTION
88-11-/16" (2252mm) WITH PASS-THROUGH OPTION
61-3/16" (1554mm) WITH PASS-THROUGH OPTION
25-1/2" (646mm)
34-1/2" (876 mm)
WITH PASS-THROUGH OPTION
40-1/2" (1028mm)
34-1/4" (869mm)
6-1/4"
(159mm)
32-7/16" (824mm)
34-1/2" (876mm)
WITH PASS-THROUGH OPTION
6-1/4"
(159mm)
40-1/2" (1028mm)
34-1/4" (869mm)
Electrical Connection
C
L
32-1/16" (814mm)
WITH SOLID BACK
CORD LENGTH
120V - 72" (1829mm)
208-240V - 108" (2743mm)
230V - 108" (2743mm)
38-1/8" (968mm)
25-1/2" (646mm)
40-1/2" (1028mm)
34-1/4" (869mm)
6-1/4"
(159mm)
32-1/16" (816mm)
WITH PASS-THROUGH OPTION
6-1/4"
(159mm)
40-1/2" (1028mm)
34-1/4" (869mm)
Electrical Connection
25-1/2" (649mm)
87-5/8" (2224mm) WITH PASS-THROUGH OPTION
32-1/8" (816mm)
WITH PASS-THROUGH OPTION
PASS-THROUGH OPTION
58-3/16" (1477mm)
WITH SOLID BACK
32" (813mm)
WITH SOLID BACK
61-3/16 (1554mm) WITH PASS-THROUGH OPTION
C
L
Electrical Connection
on side at base of unit
37-1/8" (942mm)
32-7/16" (824mm)
CORD LENGTH
120V - 72" (1829mm)
208-240V - 108" (2743mm)
230V - 108" (2743mm)
38-1/8" (968mm)
25-1/2" (646mm)
40-1/2" (1028mm)
34-1/4" (869mm)
6-1/4"
(159mm)
32-1/16" (816mm)
WITH PASS-THROUGH OPTION
6-1/4"
(159mm)
40-1/2" (1028mm)
34-1/4" (869mm)
Electrical Connection
25-1/2" (649mm)
87-5/8" (2224mm) WITH PASS-THROUGH OPTION
32-1/8" (816mm)
WITH PASS-THROUGH OPTION
PASS-THROUGH OPTION
58-3/16" (1477mm)
WITH SOLID BACK
32" (813mm)
WITH SOLID BACK
61-3/16 (1554mm) WITH PASS-THROUGH OPTION
C
L
Electrical Connection
on side at base of unit
37-1/8" (942mm)
32-7/16" (824mm)
CORD LENGTH
120V - 72" (1829mm)
208-240V - 108" (2743mm)
230V - 108" (2743mm)
single pane flat glass Door
Double pane CurveD glass Door
37-1/8" (942mm)
38-1/8" (968mm)
Electrical Connection
on side at base of unit
32-1/16" (814mm)
WITH SOLID BACK
25-1/2" (646mm)
58-3/4" (1491mm)
WITH SOLID BACK
PASS-THROUGH OPTION
88-11-/16" (2252mm) WITH PASS-THROUGH OPTION
61-3/16" (1554mm) WITH PASS-THROUGH OPTION
25-1/2" (646mm)
34-1/2" (876 mm)
WITH PASS-THROUGH OPTION
40-1/2" (1028mm)
34-1/4" (869mm)
6-1/4"
(159mm)
32-7/16" (824mm)
34-1/2" (876mm)
WITH PASS-THROUGH OPTION
6-1/4"
(159mm)
40-1/2" (1028mm)
34-1/4" (869mm)
Electrical Connection
C
L
32-1/16" (814mm)
WITH SOLID BACK
CORD LENGTH
120V - 72" (1829mm)
208-240V - 108" (2743mm)
230V - 108" (2743mm)
siDe view
front view
siDe view
*with additional wire shelves
product\pan capacIty
60 lbs (27 kg)
max imu m
FULL-SIZE SHEET PANS*:
Eight (8) 18" x 26" x 1" (457mm x 660mm x 25mm)
HALF-SIZE SHEET PANS*:
Up to Sixteen (16) 18" x 13" x 1" (457mm x 330mm x 25mm)
CHICKEN BOATS: Up to 24 (6 per shelf)
