serVIce
AR-6G Rotisserie Operation & Care Manual • 25
Part numbers and drawings are subject to change without notice.
AR-6G Rotisserie Operation & Care Manual • 25

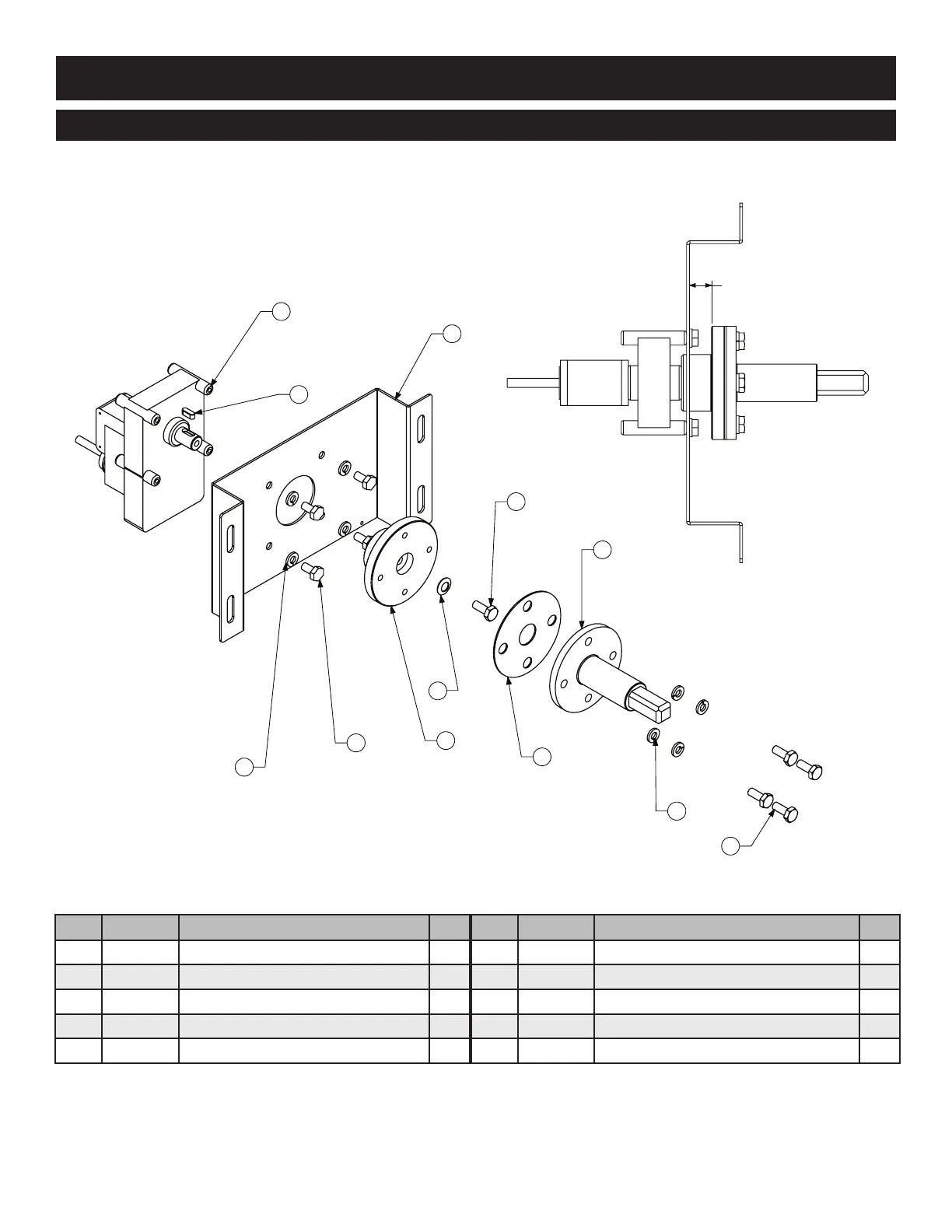

motor moUnt assembly
1
3
2
5
6
10
8
6
4
4
7
9
.59
"
(15 mm)
Notes:
• Must use arbor press or vise clamp press to fit
motor shaft to motor (see drawing for spacing).
• Use Locktite on screws #6 & #10.
Item part no. DescrIptIon Qty Item part no. DescrIptIon Qty
1 MO-34412 MOTOR 1 6 WS-2294 LOCK WASHER 1/4" 8
2 DV-27620 KEY 3/16" Sq X 0.5" 1 7 1010023 MOTOR SPACER 1
3 1006817 MOTOR MOUNT BRACKET 1 8 WS-24396 WASHER M8 S/S SERRATED BEVEL 1
4 SC-27385 SCREW 1/4-20 X 3/4" LG HEX HEAD 5 9 CR-27580 MOTOR SHAFT CONNECTOR 1
5 SI-27589 SPIT, COUPLING 1 10 SC-22729 SCREW 1/4-20 X 1/2" HEX HEAD 4
