MN-35890 (Rev. 3) 04/16 • Round Wells • 15
1
2
3
15
16
4
5
6
7
8
9
10
11
12
13
14

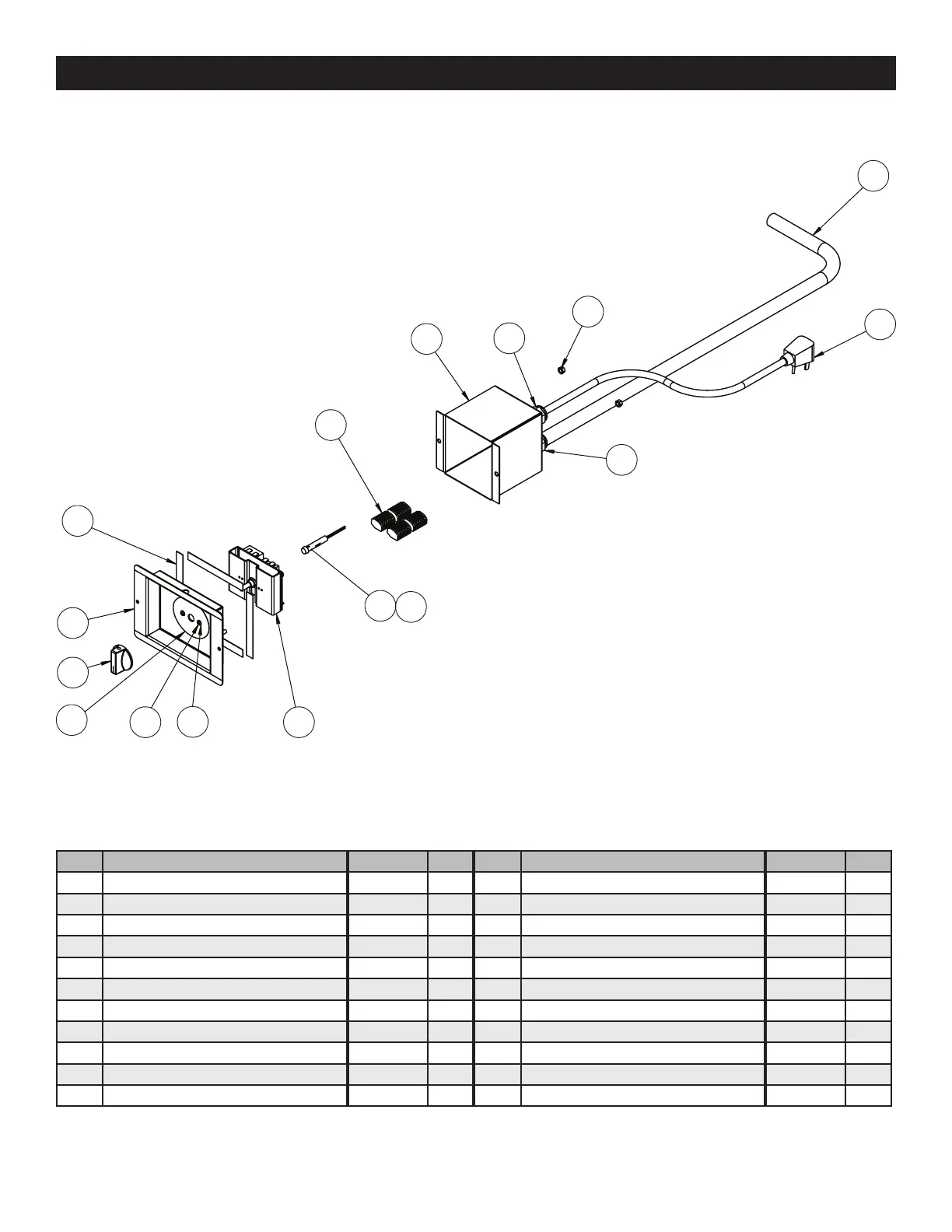

SERVICE
ELECTRICAL COMPONENTS
Part numbers and drawings are subject to change without notice.
ITEM DESCRIPTION PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1
CONDUIT, 6FT (1829mm) TU-33178
1 6
CONTROL CC-36441
1
2
CORDSET* 120V (90° plug) CD-3232
1 7
WASHER, #6, LOCK, INT., #410 S/S WS-2768
2
120V (straight plug) CD-34094
1 8
SCREW, 6-32 X 1/4 PAN HD SC-22500
2
208-240V CD-33840
1 9
PANEL OVERLAY PE-36566
1
230V (cee 7/7) CD-3922
1 10
KNOB KN-36424
1
230V (ch2-16p) CD-36231
1 11
DECOR FACE ASSEMBLY 5016206
1
230V (bs-1363) CD-33925
1 12
TAPE, VHB FOAM, 1/2" X 72 YD TA-24637
4
3
BUSHING, STRAIGHT, STRAIN RELIEF BU-34606
1 13
CONNECTOR-5 CONDUCTOR CR-34646
4
4
INDICATOR LIGHT 120V LI-35869
1 14
CONTROL POD SHELL ASSEMBLY 5016269
1
208-240V, 230V LI-35870
5 15
BUSHING, STRAIGHT, STRAIN RELIEF BU-3964
1
5
CONNECTOR, TERM, 25" INSULATED CR-3806
1 16
NUT, HEX 5MM WITH STAR WASHER NU-27851
2
*Other plugs are available. Contact factory for more information.
