MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 40
SERVICE

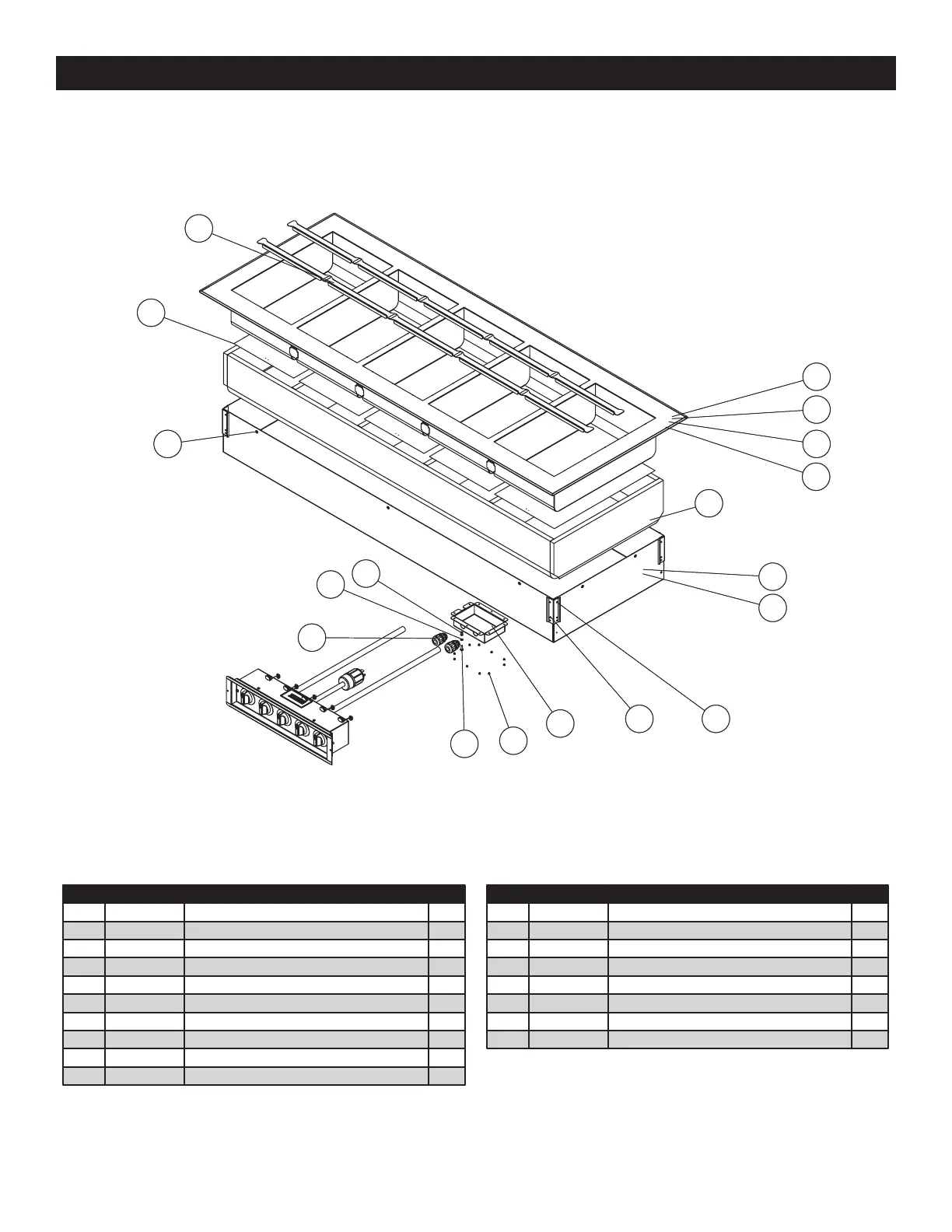

EXTERIOR SERVICE VIEW (500-HWI shown)
Item Part Description Qty
1 11318 DIVIDER, PAN, SHORT 10
2 5017707 WELDMENT, D6, WIDE FLANGE 1
2a 5017712 WELDMENT, D4, WIDE FLANGE 1
2b 5017270 WELDMENT, D6 STD FLANGE 1
2c 5017617 WELDMENT, D4 STD FLANGE 1
3 EL-36317 ELEMENT, FOIL HEATING PAD 5
IN-24588 INSULATION, 33.4" x 78" 1
5 1015717 WRAPPER, 5 WELL, 6" DEEP 1
5a 1016196 WRAPPER, 5 WELL, 4" DEEP 1
6 1016034 BOX, CONNECTION 1
Item Part Description Qty
RI-2097 #42 STAINLESS RIVET 10
8
7
BU-34606 BUSHING, STRAIN RELIEF 2
9 WS-22301 WASHER, M5 SPLIT LOCK 1
10 NU-23909 NUT, HEX INSERT M5 1
11 SC-36973 SCREW, PAN PH, METRIC, M5 1
12 RI-27108 RIVET, SEALED 12
13 SC-22281 SCREW, M5 x 0.8 x 16mm FLAT 8
14 1017049 BRACKET, STANDOFF, 230V ONLY
4
4
11
9
10
6
7
8
13
3
1
5a
5
4
14
2
2a
12
2b
2c
11
9
10
6
7
8
13
3
1
5a
5
4
14
2
2a
12
2b
2c
Part numbers and drawings are
subject to change without notice.
