MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 29
SERVICE

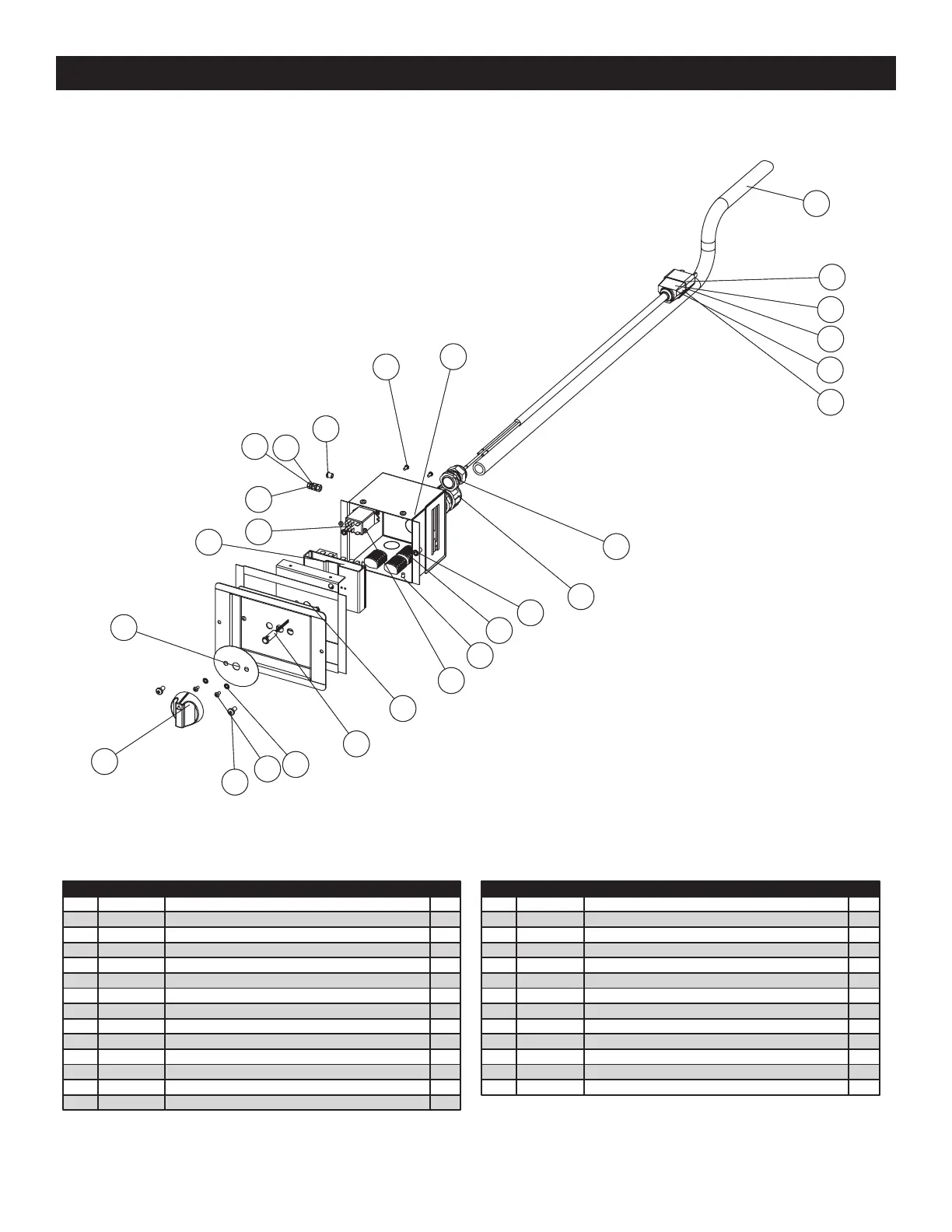

CONTROL SERVICE VIEW (300-HW shown)
Item Part Description Qty
1 5014997 BS 1363 CORDSET FERRULE ASSEMBLY 1
1a 5016998 CH2-16P CORDSET FERRULE ASSEMBLY 1
1b 5017529 NEMA 5-20P CORDSET FERRULE ASSEMBLY 1
1c CD-33840 CORDSET 15A 208-240V 1
1d CD-3922 CORDSET-16AWG, 3/C, INT’L HARM 1
2 TU-33178 CONDUIT FLEX LIQUID TIGHT, 3FT 1
3 BU-3964 BUSHING, STRAIGHT, STRAIN RELIEF 1
4 BU-34606 BUSHING, STRAIGHT, STRAIN RELIEF 1
5 1017312 SHELL, CONTROL POD, 1 KNOB 1
6 CR-34646 CONNECTOR-5 CONDUCTOR 3
7 CC-36859 CONTROL 1
8 1017287 PLATE, FACE 1
9 PG-35411 1/4" HOLE PLUG 1
10 RL-34279 RELAY, 120V 1
Item Part Description Qty
11 NU-22285 NUT, M3-0.5 HEX NUT 2
12 SC-22266 SCREW, M3 x 0.5 x 6mm PAN 2
13 KN-36424 KNOB, T-STAT CONTROL 1
14 LI-37215 LIGHT, INDICATOR 1
15 PE-36566 PANEL OVERLAY 1
16 WS-2768 WASHER, #6, LOCK 2
17 SC-22500 SCREW 6-32 x 1/4" PAN 2
18 SC-22766 SCREW, M5 x 0.8 x 10mm PAN 2
19 SC-22926 SCREW, M5 x 0.8 x 16mm HEX 1
20 NU-36234 NUT, M5, KEPS 2
21 WS-22295 WASHER, FLAT M5 S/S 1
22 NU-23909 NUT, HEX INSERT M5 2
23 SC-22271 SCREW, M4 x 0.7 x 6mm PAN 4
2
1a
1c
1b
4
3
19
21
20
12
9
1d
5
6
23
1
22
10
11
7
8
15
14
16
17
13
18
2
1a
1c
1b
4
3
19
21
20
12
9
1d
5
6
23
1
22
10
11
7
8
15
14
16
17
13
18
Part numbers and drawings are
subject to change without notice.
