MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 25
SERVICE

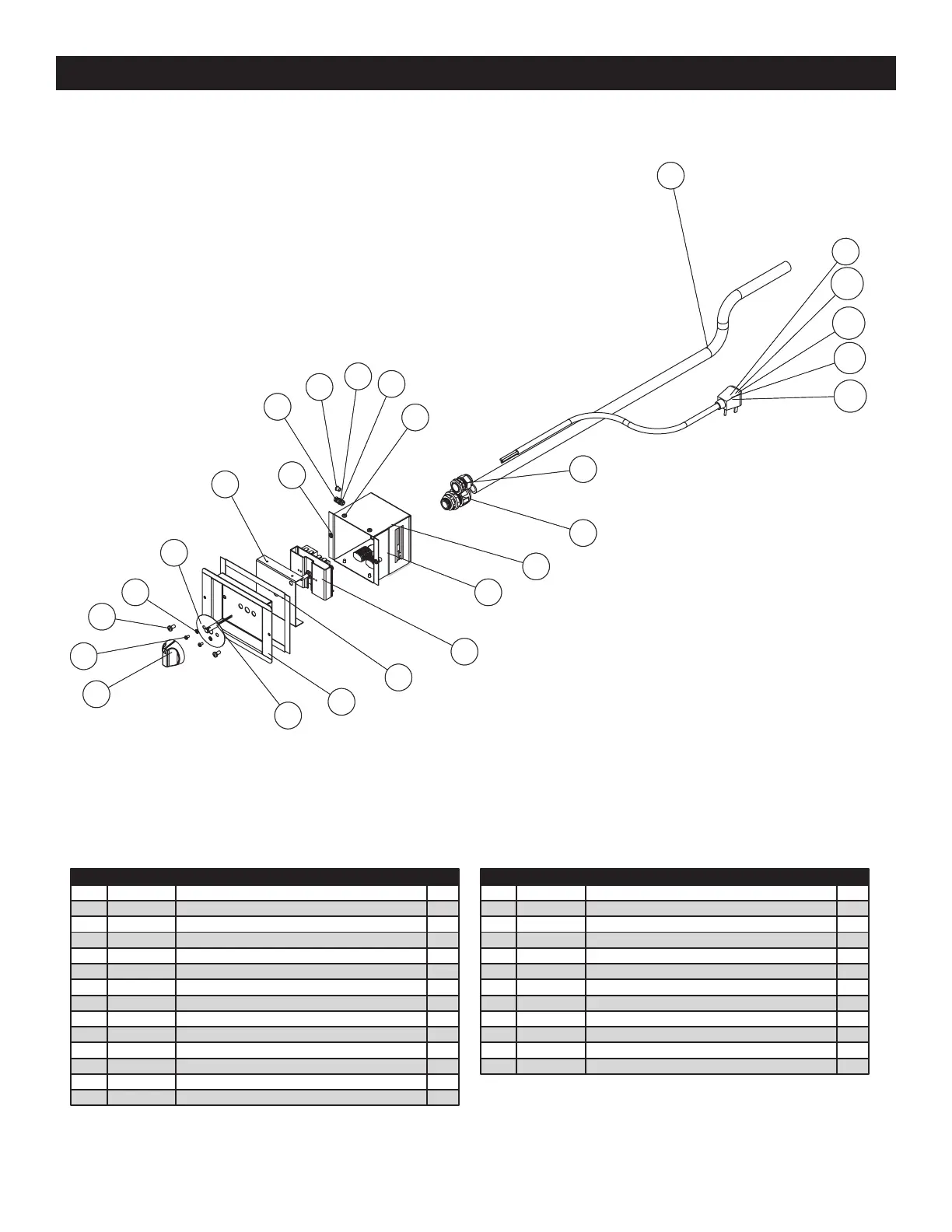

CONTROL SERVICE VIEW (200-HW shown)
Item Part Description Qty
1 1017287 PLATE, FACE 1
2 1017303 SHELL, CONTROL POD DEEP, 1 KNOB 1
3 CC-36859 CONTROL 1
4 1015805 BOX, REMOTE, DECOR FACE, 1 KNOB 1
5 BU-34606 BUSHING, STRAIGHT, STRAIN RELIEF 1
6 BU-3964 BUSHING, STRAIGHT, STRAIN RELIEF 1
7 KN-36424 KNOB, T-STAT CONTROL 1
8LI-37215 LIGHT, INDICATOR 1
9 PE-36566 PANEL OVERLAY 1
10 TU-33178 CONDUIT FLEX LIQUID TIGHT, 3' 1
11 CR-34646 CONNECTOR-5 CONDUCTOR 3
12 TA-24637 TAPE, VHB, FOAM, 1/2" 4
13 CD-3232 CORDSET, 14/3 SJTOW, 125V 1
13a 5014997 BS 1363 CORDSET FERRULE ASSEMBLY 1
Item Part Description Qty
13b 5016998 CH2-16P CORDSET FERRULE ASSEMBLY 1
13c CD-33840 CORDSET 15A 208-240V 1
13d CD-3922 CORDSET-16AWG, 3/C, INT’L HARM 1
14 SC-22766 SCREW, M5 x 0.8 x 10mm PAN 2
15 SC-22500 SCREW 6-32 X 1/4" PAN HD 2
16 SC-22271 SCREW, M4 x 0.7 x 6mm PAN 4
17 NU-23909 NUT, HEX INSERT M5 2
18 WS-2768 WASHER, #6, LOCK 2
19 PG-35411 1/4" HOLE PLUG 1
20 SC-22926 SCREW, M5 x 0.8 x 16mm HEX 1
21 NU-36234 NUT, M5, KEPS 2
22 WS-22295 WASHER, FLAT M5 S/S 1
10
13b
13a
13
13d
13c
5
6
20
22
21
19
11
2
17
16
3
1
4
9
14
18
12
15
8
7
10
13b
13a
13
13d
13c
5
6
20
22
21
19
11
2
17
16
3
1
4
9
14
18
12
15
8
7
Part numbers and drawings are
subject to change without notice.
