MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 23
SERVICE

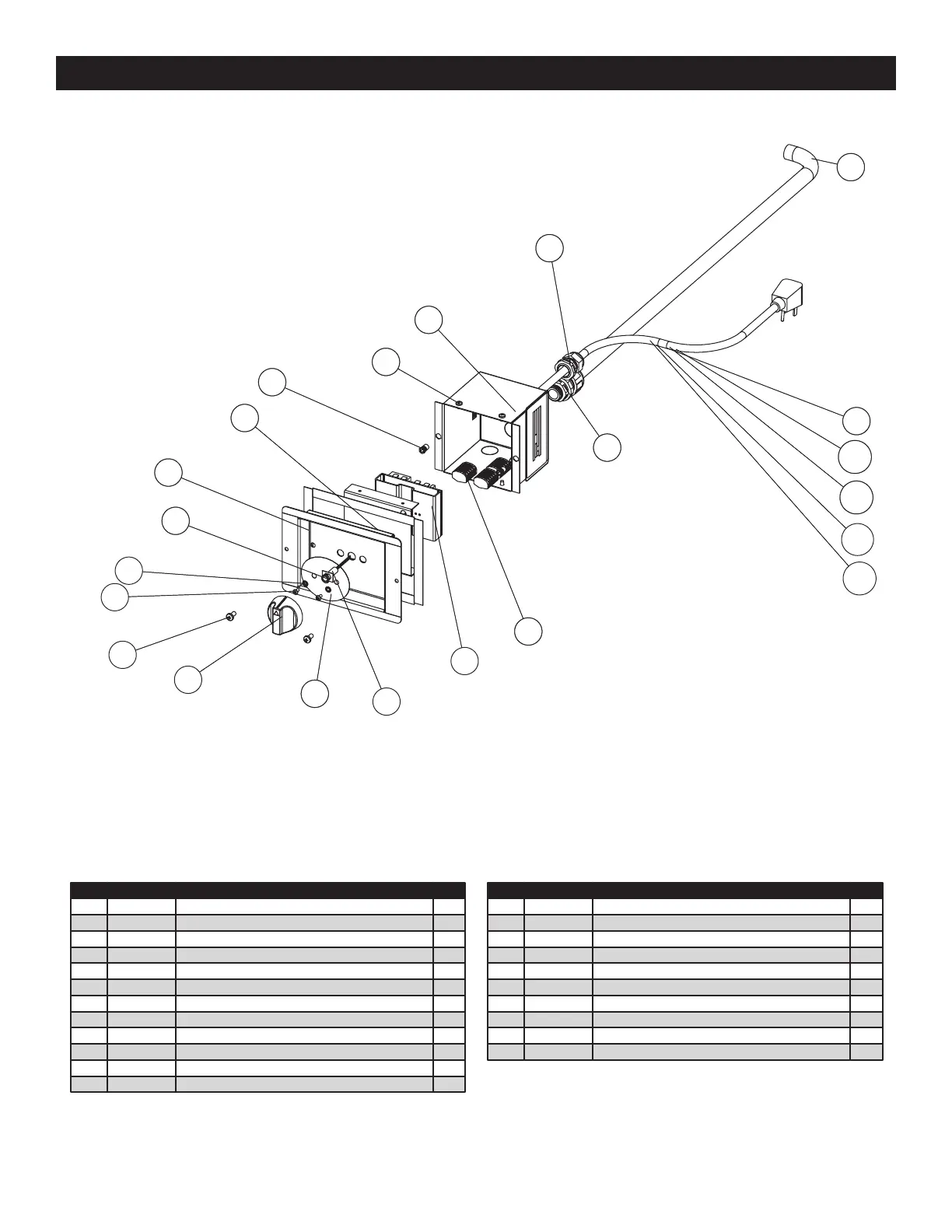

CONTROL SERVICE VIEW (100-HW shown)
Item Part Description Qty
1 KN-36424 KNOB, T-STAT CONTROL 1
2 1015723 SHELL, CONTROL POD, 1 KNOB 1
3 TU-33178 CONDUIT, FLEXIBLE, 6 FT 1
4 CC-36859 CONTROL 1
5 1017287 PLATE, FACE 1
6LI-37215 LIGHT, INDICATOR 1
7 PE-36566 PANEL OVERLAY, CONTROL 1
8 TA-24637 TAPE, VHB, FOAM, 1/2" WIDE 1
9 CR-34646 CONNECTOR-5 CONDUCTOR 3
10 SC-22500 SCREW 6-32 x 1/4" PAN HD 2
11 WS-2768 WASHER, #6, LOCK 2
12 NU-23909 NUT, HEX INSERT M5 2
Item Part Description Qty
13 BU-34606 BUSHING, STRAIGHT, STRAIN RELIEF 1
14 BU-3964 BUSHING, STRAIGHT, STRAIN RELIEF 1
15 SC-22766 SCREW, M5 x 0.8 x 10mm PAN 2
17 CD-3232 CORDSET, 14/3 SJTOW, 125V 1
17a 5014997 BS 1363 CORDSET FERRULE ASSEMBLY 1
17b 5016998 CH2-16P CORDSET FERRULE ASSEMBLY 1
17c CD-33840 CORDSET 15A 208-240V 1
17d CD-3922 CORDSET-16AWG, 3/C, INT’L HARM 1
18 CL-37245 CLIP, LIGHT MOUNTING 1
19 SC-22271 SCREW, M4 x 0.7 x 6mm PAN 4
17b
17a
2
19
18
17b
17a
3
17d
17c
17
13
14
2
9
19
12
4
8
5
7
11
10
18
1
15
6
Part numbers and drawings are
subject to change without notice.
