MN-35890 (Rev. 3) 04/16 • Round Wells • 14
SERVICE
1
2
3
4
5
6
7
9
8
8
10
11
12
13
14
15
16
17
18
ITEM DESCRIPTION PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1
KETTLE ASSEMBLY 700-RW 5016027 1
11
NUT, HEX 5mm WITH STAR WASHER NU-35851 6
1100-RW 5016026 1
12
WIRE COVER 1014242 1
2
ELEMENT, FOIL PAD HEATER 700-RW EL-35799 1
13
CONNECTOR FLEX NYLON SWEEP CR-33179 1
1100-RW EL-35798 1
14
SHEATH, BOTTOM 700-RW 1014438 1
3
NUT, HEX 5mm WITH STAR WASHER NU-27851 3 1100-RW 1014207 1
4
CLIP, RTD 1014305 1
15
NUT, FLG, M6 X 1.0, LOCK, NYLON INS NU-35842 3
5
PROBE, TEMPERATURE PR-34494 1
16
CONNECTOR, TEMP PROBE, HOUSING CR-34500 1
6
INSULATION IN-22364 2
17
SCREW, M5 X 0.8 X 10mm HEX SC-23737 2
7
STANDOFF BRACKET 1014696 3
18
NUT, KEPS, M6X1.0, S/S NU-35844 1
8
RIVET, BLIND, #43, LRG FLG, S/S RI-2094 14
19*
MOUNTING KIT 5016693
1
9
SHEATH, OUTER 700-RW 1014437 1 - MOUNTING BRACKET 1014216 2
1100-RW 1014206 1 - SCREW, THUMB, 10-32 X 1-1/2", S/S SC-36056
2
10
SCREW, M5 X 0.8 X 10mm PAN SC-22766 14
20*
TAPE, ELECTRICAL, INSULATING 2" TA-3621
7
Part numbers and drawings are subject to change without notice.

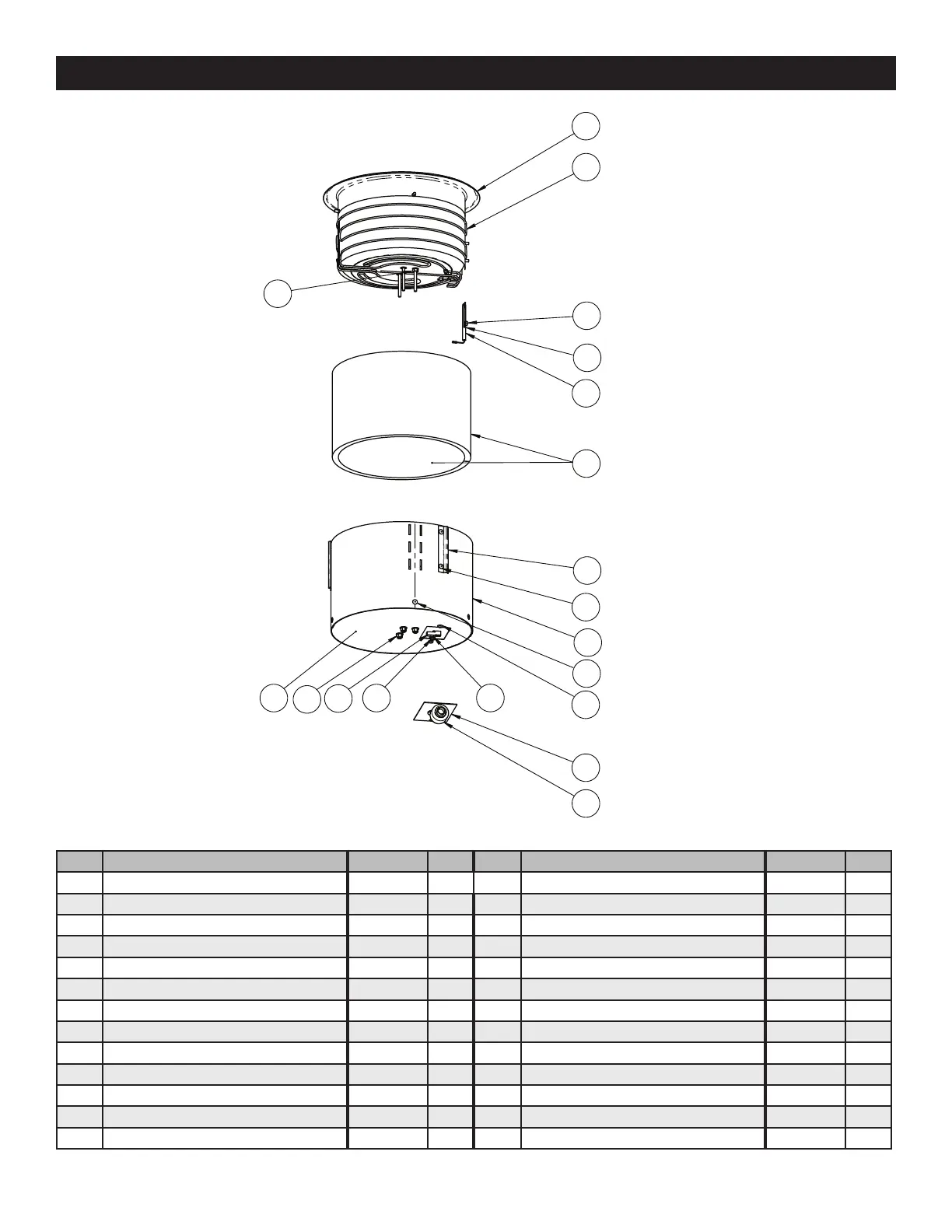

ROUND WELL
(1100-RW shoWn)
*not shown
