Tesla Model Y
PSS-TSLA 20240320v3
5/14

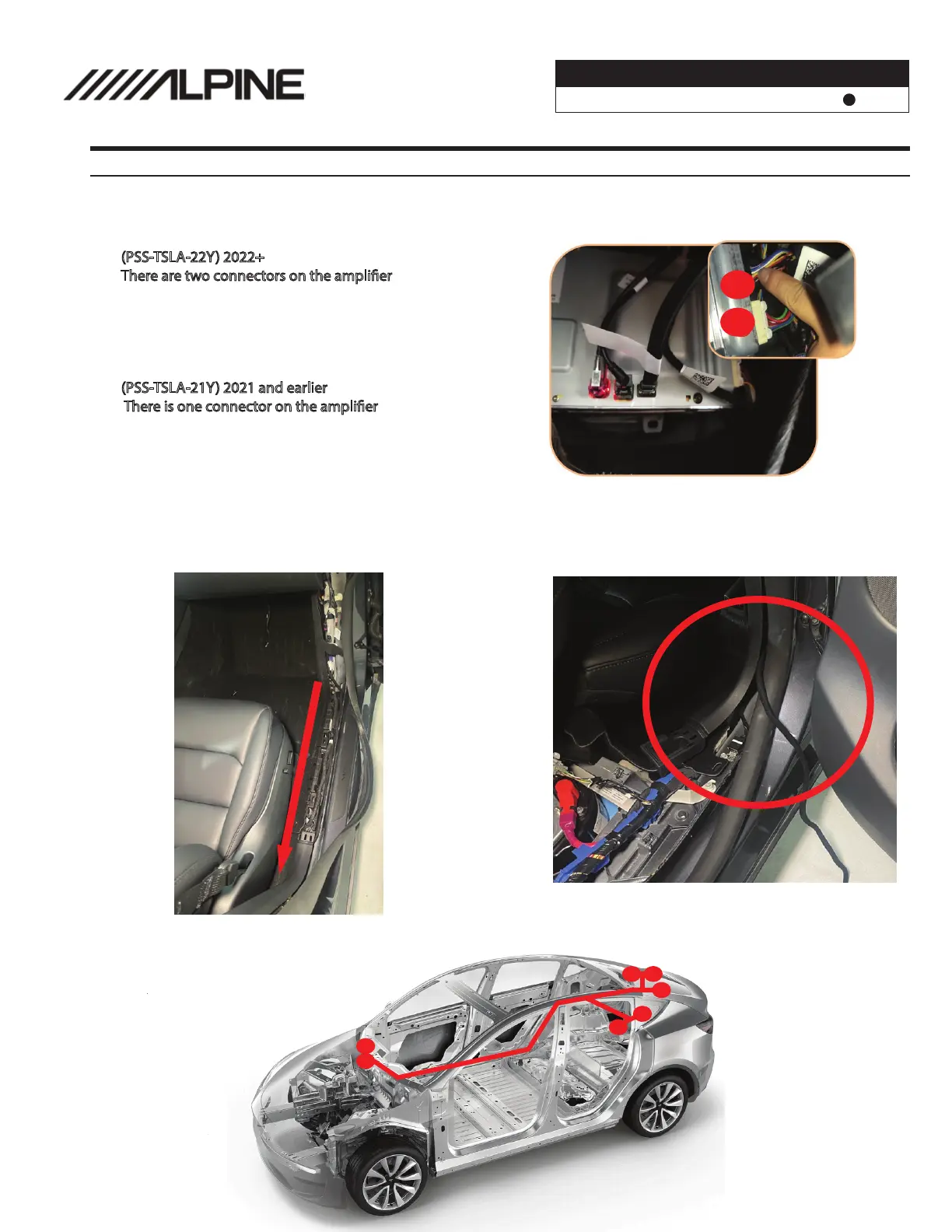

Installation Instructions (Integration Harness)
3
4
2
Inside of the upper passenger footwell locate the factory ampli-
er pictured.
(PSS-TSLA-22Y) 2022+
There are two connectors on the amplier
Disconnect the 2 bottom male connectors from factory amp and
replace with plugs (A + B) from the Alpine Tesla Harness. Transfer
the disconnected factory connectors into the open ends of the
Alpine Harness.
(PSS-TSLA-21Y) 2021 and earlier
There is one connector on the amplier
Disconnect the single bottom male connector from factory amp
and replace with Plug (B). Transfer the disconnected factory plug
into the open end of the Alpine Harness.
A
B
Route the Alpine harness cable along the factory wire
channel, toward the B-Pillar. Make sure the wire is
properly tucked
Loosen the base of the B-Pillar Panel and route the
harness from the front half of the vehicle towards the
rear cabin of the vehicle.
2022+ Model Shown
(Dual Plug Factory Amplier)
A
B
C
E
D
F
G
