15-EN
14
RCA Extension Cable (Sold Separately)
15
Fuse (80A, Included), Fuse Box (Included)

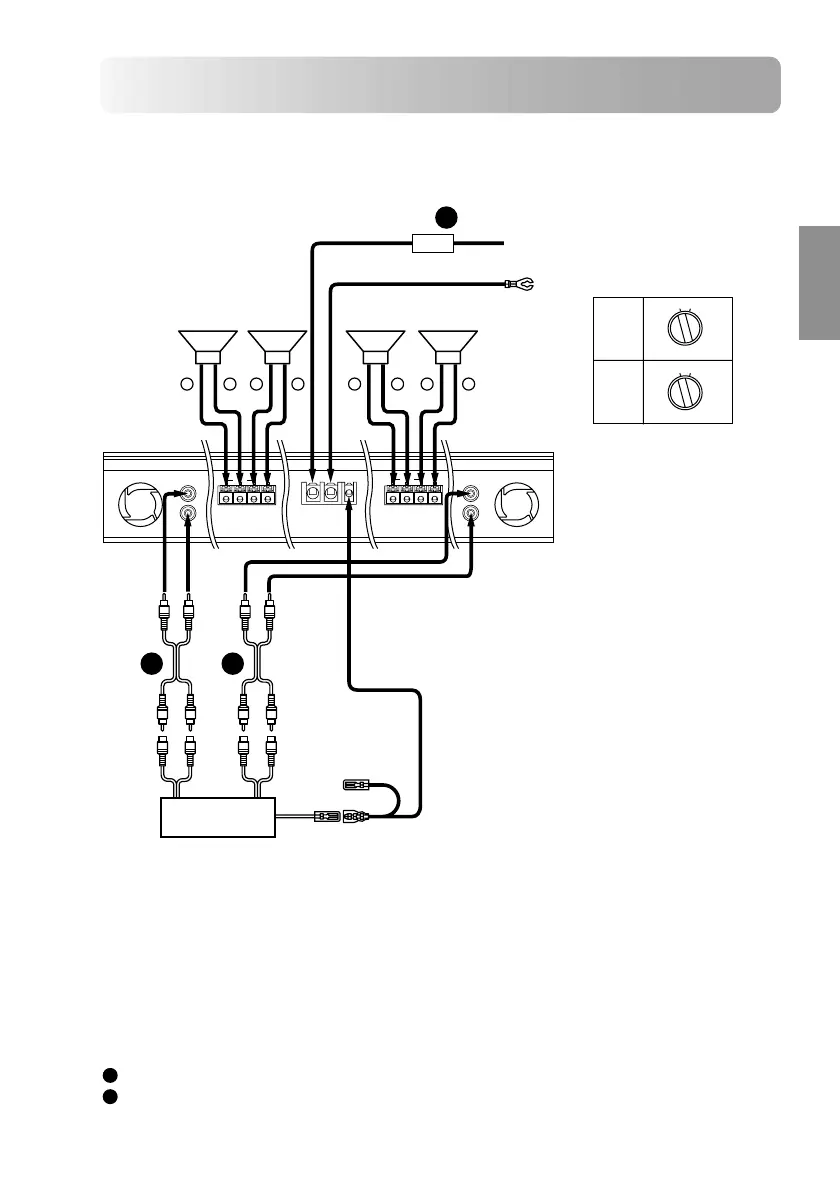

Examples of System Expansion
BATTERY GND RENOTE
POWER SUPPLY
BRIDGED
CH-1 CH-2
SPEAKER OUTPUT
CH-2
CH-1
INPUT
CH-4
CH-3
INPUT
+
++
–
––
CH-3 CH-4
SPEAKER OUTPUT
BRIDGED
+
++
–
––
–
+
(L) (R)
LR L R
(L) (R)
14
(L) (R)
(L) (R)
14
–
+
–
+
–
+
Head Unit
Remote Turn-On Lead
SPEAKER SPEAKER
Battery Lead*
Ground Lead
80A
To the vehicle's battery
15
• SYSTEM A
(4ch input, 4ch output)
CH-1/
CH-2
CH-3/
CH-4
MODE
BRIDGEDNORMAL
MODE
BRIDGEDNORMAL
* NOTES:
• Please make sure not to short the exposed connector
to any grounded metal surface when
replacing the fuse or making initial connection.
• When adding a fuse to the battery lead, be sure to
use the 80A fuse (supplied) with its fuse holder
(supplied).
• Do not place the fuse holder (supplied) in the
vehicle’s engine compartment because of the high
temperatures reached in this area.
• In order to protect the vehicle’s battery and the wiring,
be sure to use an equivalent replacement for the
supplied (80A) fuse.
• The fuse holder (supplied) corresponds to an 80A
fuse or lower. It is not suitable for a fuse rated higher
than 80A.
