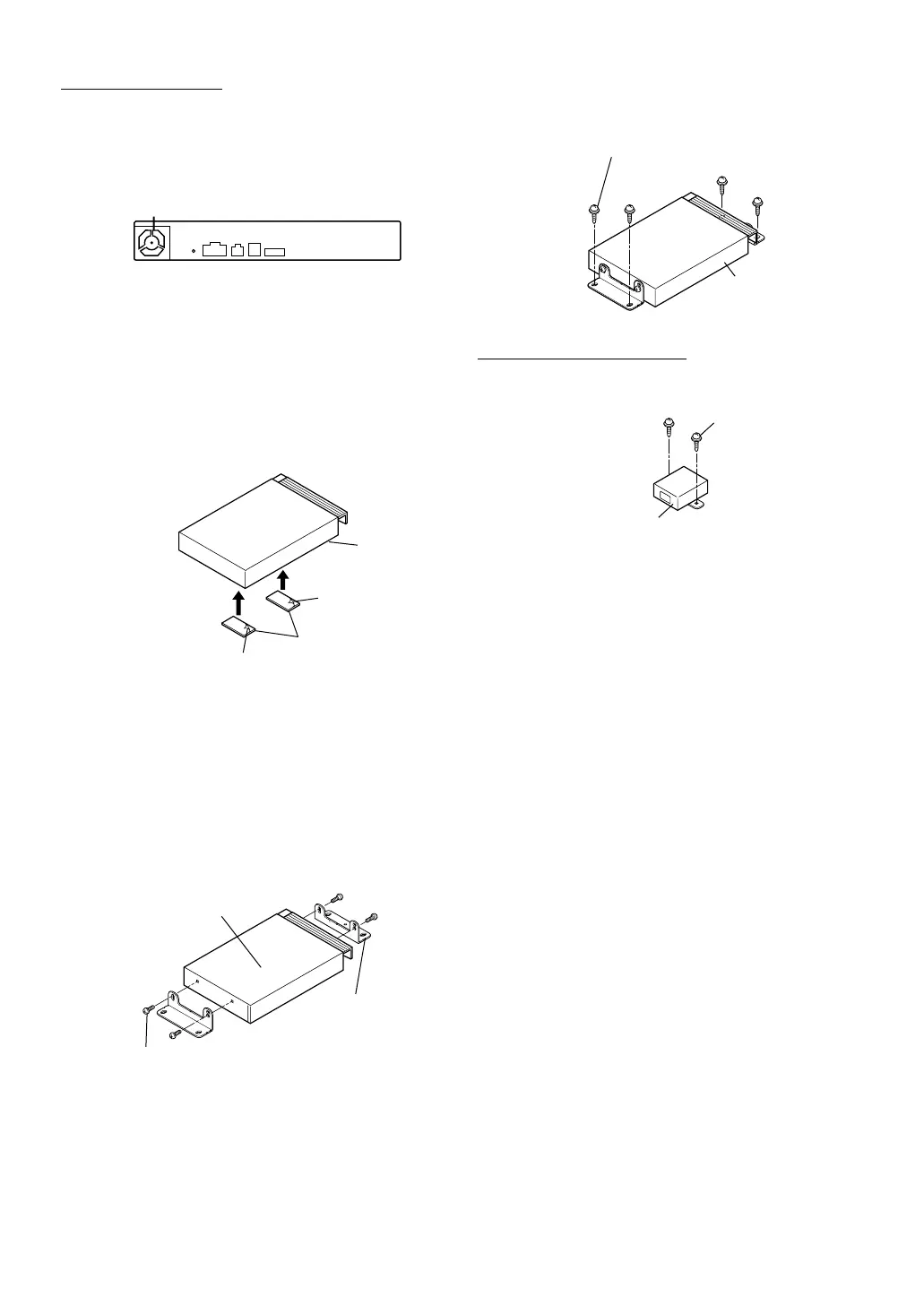

Installing the Tuner Box
When mounting with Velcro fasteners
When mounting the tuner with the Velcro fasteners, be sure to choose a
flat location.
Do not hang the unit from the bottom of the dashboard or rear deck with
the Velcro fasteners.
1
Remove the Protective paper and attach two pieces
of Velcro fastener to the bottom of the Tuner.
2
Check the position, and then fix the Tuner to the
floor carpet.
When mounting with Screws
When mounting the tuner with the screws, be sure to choose a flat
location.
When making holes, be careful not to scratch any pipes or wires.
1
Connect the bracket to both the flanks of the tuner
with the supplied pan screws (M4 × 8).
2
Install the tuner on the floor with the supplied flange-
head tapping screws (M4 × 14).
Installing the DC/DC Converter
Install the DC/DC Converter on the floor with the
supplied flange-head tapping screws (M4 × 14).
Caution
Do not block the unit’s fan or heat sink, thus preventing air
circulation. If blocked, heat will accumulate inside the unit and
may cause a fire.
Air ventilation hole
<Side of the tuner box>
Tuner Box
Protective paper
Velcro Fasteners
(Included)
Protective paper
Tuner Box
Pan screws (M4 × 8) (Included)
Bracket (Included)
Tuner Box
Flange-head tapping screws
(M4 × 14) (Included)
DC/DC Converter
Flange-head tapping
screws (M4 × 14)
(Included)
