8-EN
ALPINE HCE-C200R 68-09359Z09-A (EN)

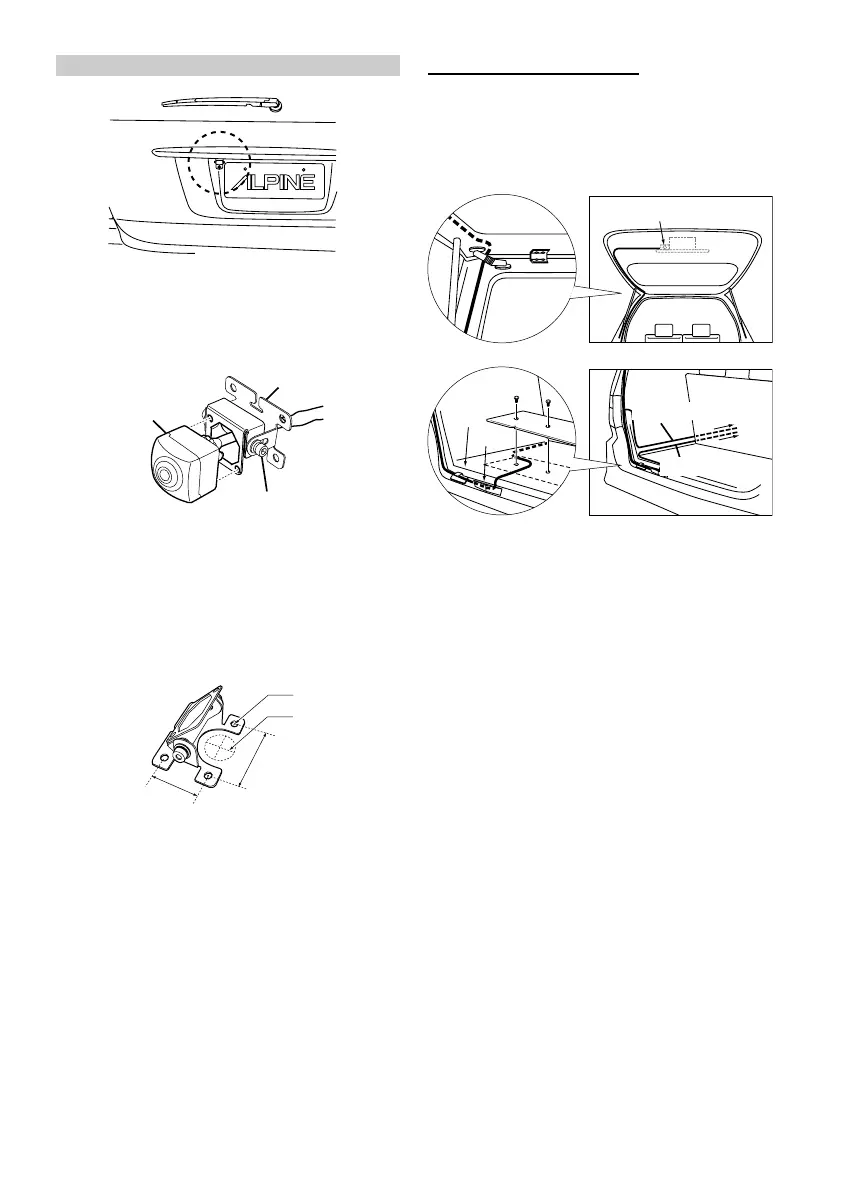

Install to the Rear Garnish
1
Attach the camera 1 to the camera mounting
3.
Pull the camera cable through to the camera
mounting 3, and secure with the hex screws
4.
2
Use the hexagonal wrench 5 to loosen the
camera mounting 3 and angle adjustment
screw. Determine the attachment angle, and
carefully tighten the angle adjustment screw.
3
Make a 13 mm hole in the rear garnish
camera mounting.
* If the tapping screw ! is used, make a hole.
4
Pull the camera cable inside the car through
the hole made in step 3.
5
Remove the adhesive seal from the camera
mounting 3, and attach the camera
mounting while ensuring the camera cable
remains inside the grommet.
• Attach the camera in a position where it does not touch the
number plate.
• Use retail touch-up paint to paint the surface and
surrounding area when a hole has been made in a metal
surface.
• If necessary, use a tapping screw " to fix the camera
mounting (In the case of a plastic mount area).
• Install the camera facing up so that the serial label on the
rear of the camera is visible.
Securing the Camera Cable
1
Secure the camera cable.
Attach the waterproof pad 7 with the
waterproof pad adhesive sheet 8, and
secure any slack cable around the waterproof
pad 7 using the cord clamp 9.
• Ensure the cable does not get caught in the trunk, rear
door(s) or any hinges.
• The cable should go on the outside of car hinges and
harness covers.
• After completing wiring, open and close the trunk and the
rear doors several times to confirm the cable is not getting
caught or rubbing anywhere.
1
3
2.5
*
13
30
21
1
9
7
Reverse In
Camera cable
Angle adjustment screw
