4. Remove the wireless card.
5. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
6. Remove the fans.
7. Remove the rear I/O-cover.
8. Remove the
solid-state drive bracket.
9. Remove the display assembly.
About this task
NOTE: When installing this component, please refer to the techsheet bundled with the service kit. This is only applicable for
computers with the following Graphics Processing Unit (GPU) configurations that have Element 31 grease is applied to the CPU.
● NVIDIA GeForce RTX 3070
● NVIDIA GeForce RTX 3080

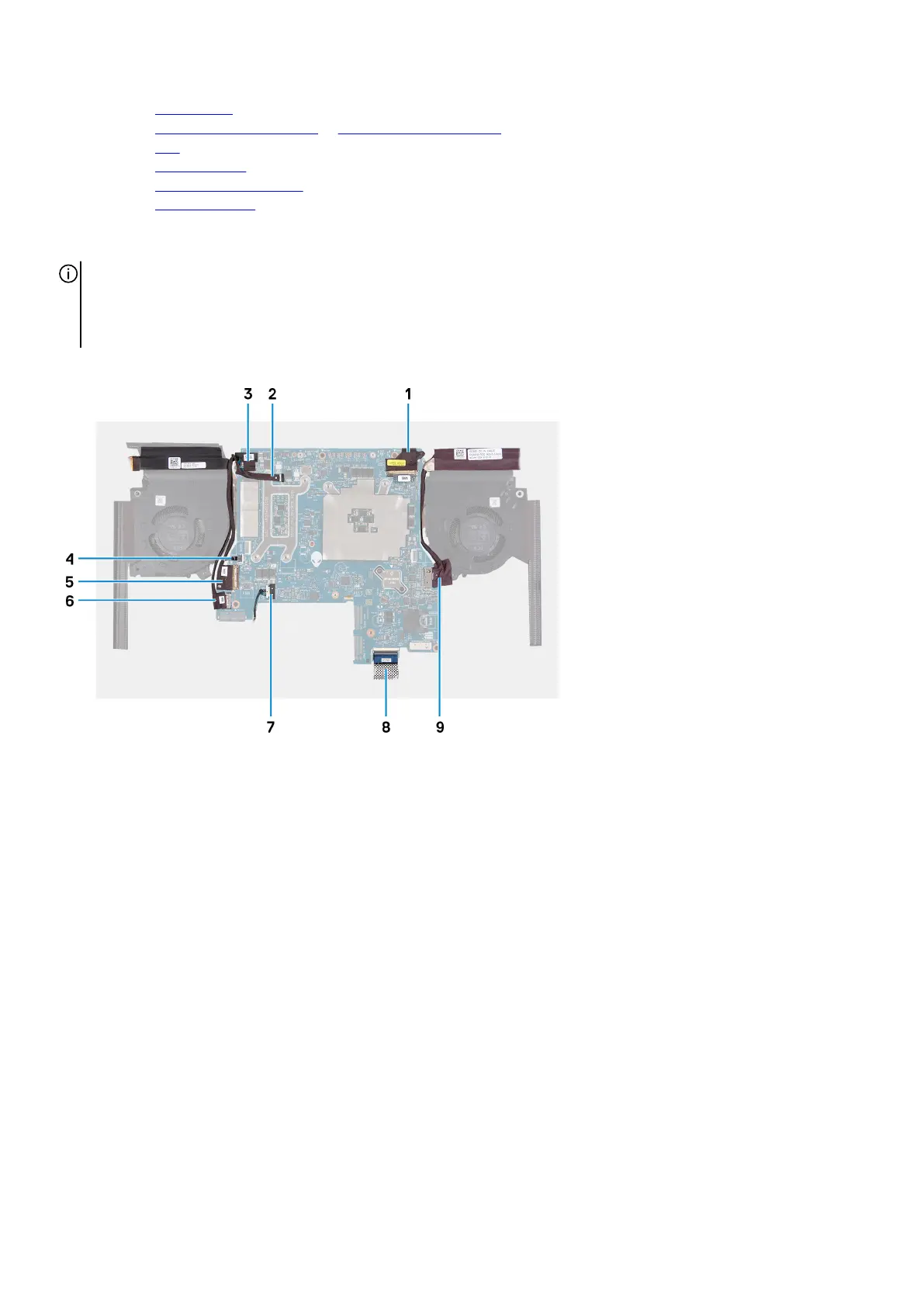

The following image indicates the connectors on your system board.
1.
Display cable 2. Alien head LED cable
3. Camera cable 4. Power-button cable
5. I/O-board cable 6. Headset port cable
7. Speaker cable 8. Keyboard-controller board cable
9. Power-adapter port cable
The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
