About this task

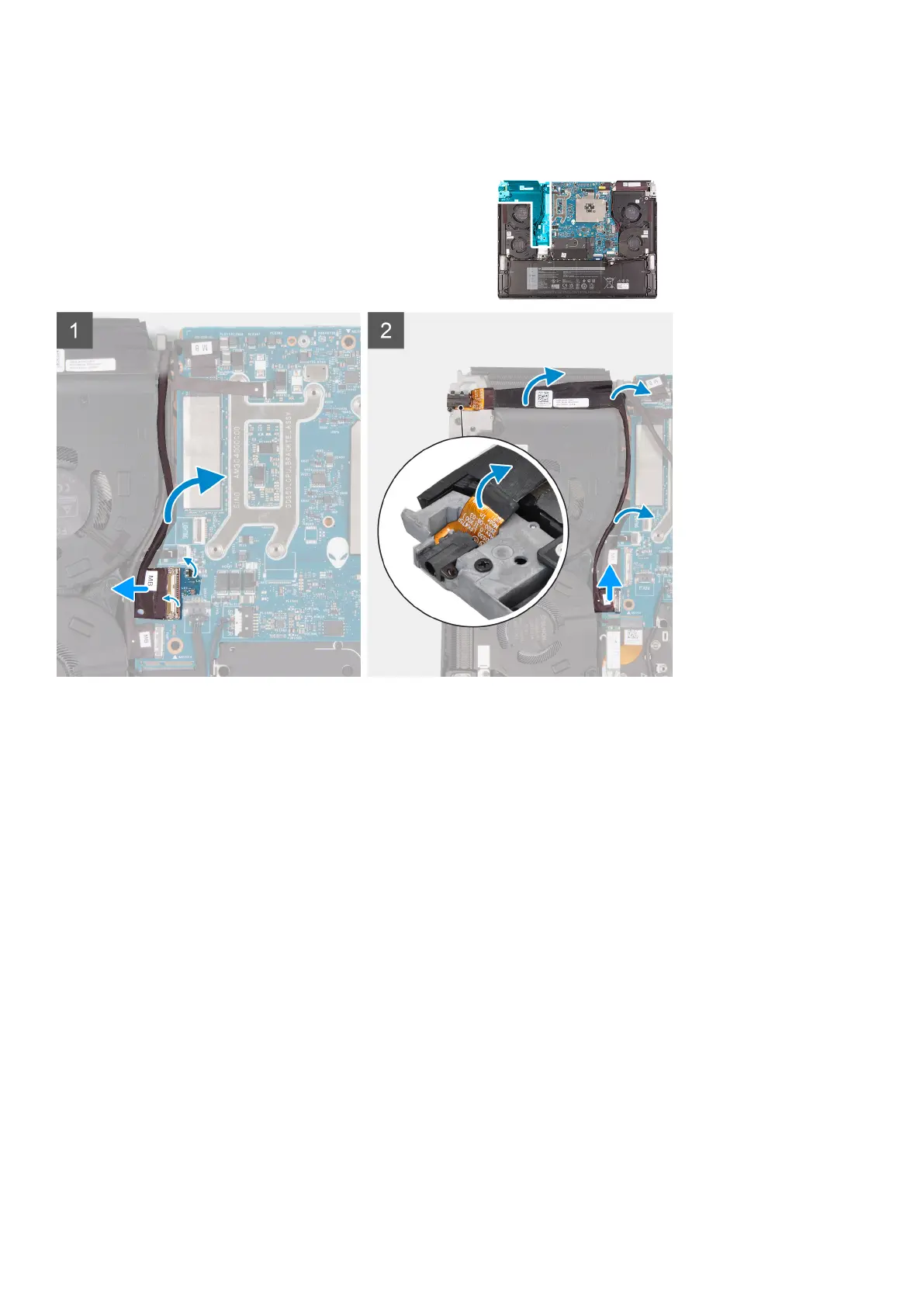

The following image(s) indicate the location of the headset port and provides a visual representation of the removal procedure.
Steps
1. Peel the tape that secures the I/O-board cable to the system board.
2. Open the latch and disconnect the I/O-board cable from the system board.
3. Remove the I/O-board cable from the routing guides on the fan and heat-sink assembly.
4. Disconnect the headset-port cable from the system board.
5. Remove the headset-port cable from the routing guides on the fan and heat-sink assembly.
6. Peel off the headset-port cable from the fan and heat-sink assembly.
7. Lift the headset port along with its cable from the slot on the palm-rest and keyboard assembly.
Installing the headset port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the headset port and provides a visual representation of the installation procedure.
37
