About this task
NOTE: The following procedure applies only to computers shipped with an M.2 2280 solid-state drive.
NOTE: The M.2 card installed on M.2 slot will depend on the configuration ordered. Supported card configurations:
● M.2 2230 solid-state drive + 2230 mounting bracket
● M.2 2280 solid-state drive

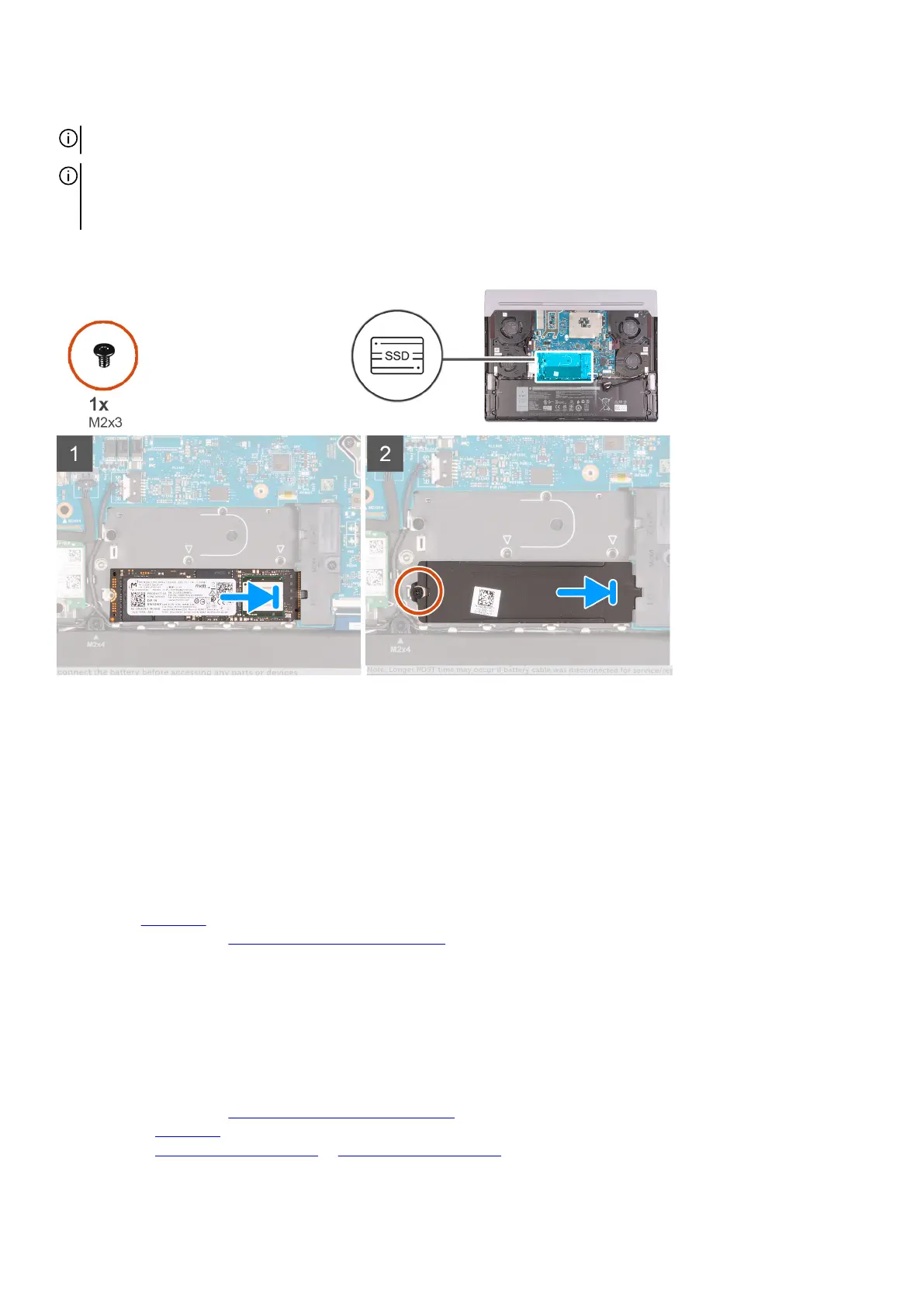

The following image(s) indicate the location of the solid-state drive and provides a visual representation of the installation procedure.
Steps
1. Align the notch on the solid-state drive with the tab on the solid-state drive slot.
2. Slide the solid-state drive into the solid-state drive slot.
3. Slide the solid-state drive thermal shield into the solid-state drive slot.
4. Align the screw hole on the solid-state drive thermal shield with the screw hole on the solid-state drive and palm-rest and
keyboard assembly.
5. Replace the screw (M2x3) that secures the M.2 2280 solid-state drive thermal shield to the solid-state drive and palm-rest and
keyboard assembly.
Next steps
1. Install the
base cover.
2. Follow the procedure in After working inside your computer.
Solid-state drive bracket
Removing the solid-state drive bracket
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
