5. Lift the solid-state drive mounting bracket off the palm-rest and keyboard assembly.
Installing the M.2 2230 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: The following procedure applies only to computers shipped with an M.2 2230 solid-state drive.
NOTE: The M.2 card installed on M.2 slot will depend on the configuration ordered. Supported card configurations:
● M.2 2230 solid-state drive + 2230 mounting bracket
● M.2 2280 solid-state drive

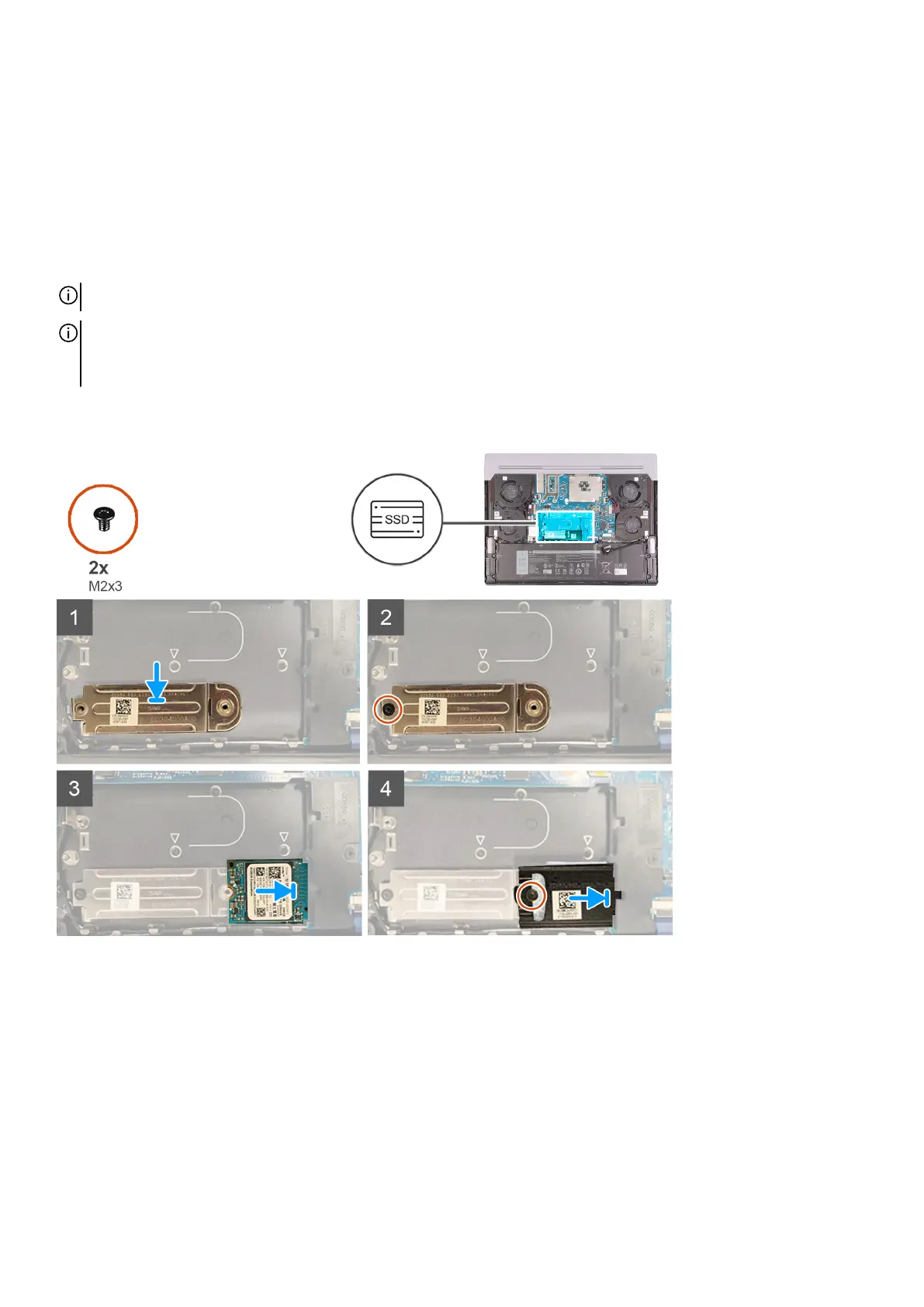

The following image(s) indicate the location of the M.2 2230 solid-state drive and provides a visual representation of the installation
procedure.
Steps
1. Align and place the solid-state drive mounting bracket on the palm-rest and keyboard assembly.
2. Replace the screw (M2x3) that secures the solid-state drive mounting bracket to the palm-rest and keyboard assembly.
3. Align the notch on the solid-state drive with the tab on the solid-state drive slot.
4. Slide the solid-state drive into the solid-state drive slot.
5. Slide the solid-state drive thermal shield into the solid-state drive slot.
6. Align the screw hole on the solid-state drive thermal shield with the screw hole on the solid-state drive and palm-rest and
keyboard assembly.
7. Replace the screw (M2x3) that secures the M.2 2230 solid-state drive thermal shield to the solid-state drive and palm-rest and
keyboard assembly.
