About this task

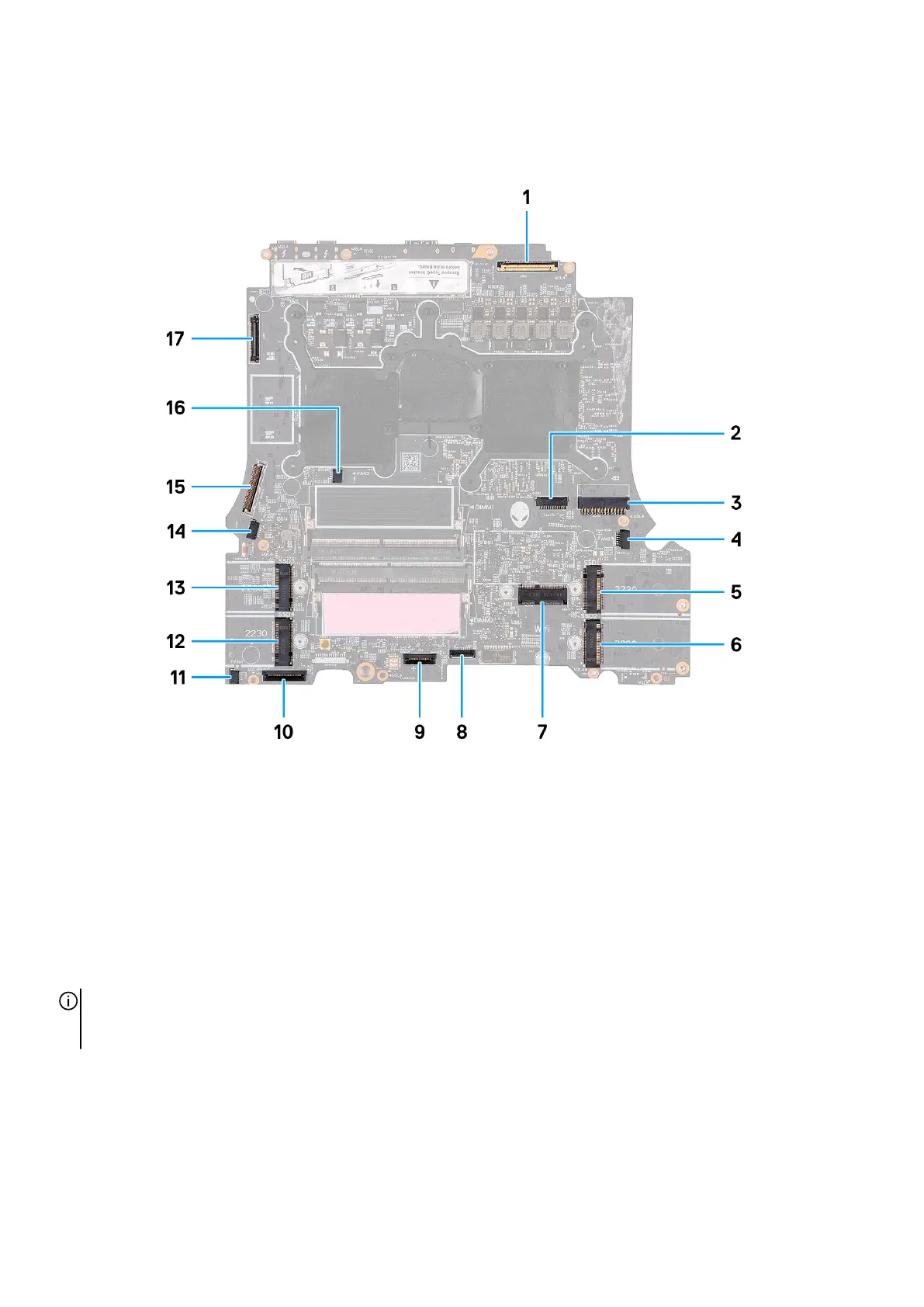

The following image indicates the connectors on your system board.
1. Display cable 2. Alien head LED-cable
3. Power-adapter port cable 4. Right-fan cable
5. M.2 card slot for solid-state drive 1 6. M.2 card slot for solid-state drive 2
7. Wireless-card slot 8. Touchpad connector
9. Keyboard controller and keyboard backlight 10. Left I/O board cable
11. Left-fan cable 1 12. M.2 card slot for solid-state drive 4
13. M.2 card slot for solid-state drive 3 14. Left-fan cable 2
15. Rear I/O board cable 16. Left-fan cable 3
17. Camera cable
NOTE: Computers shipped with NVIDIA GeForce RTX 4080/4090 graphics card have two M.2 2230 and two M.2 2280
solid-state drive slots, whereas computers shipped with NVIDIA GeForce RTX 4050/4060/4070 graphics card have only two
M.2 2280 solid-state drive slots.
The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
55
