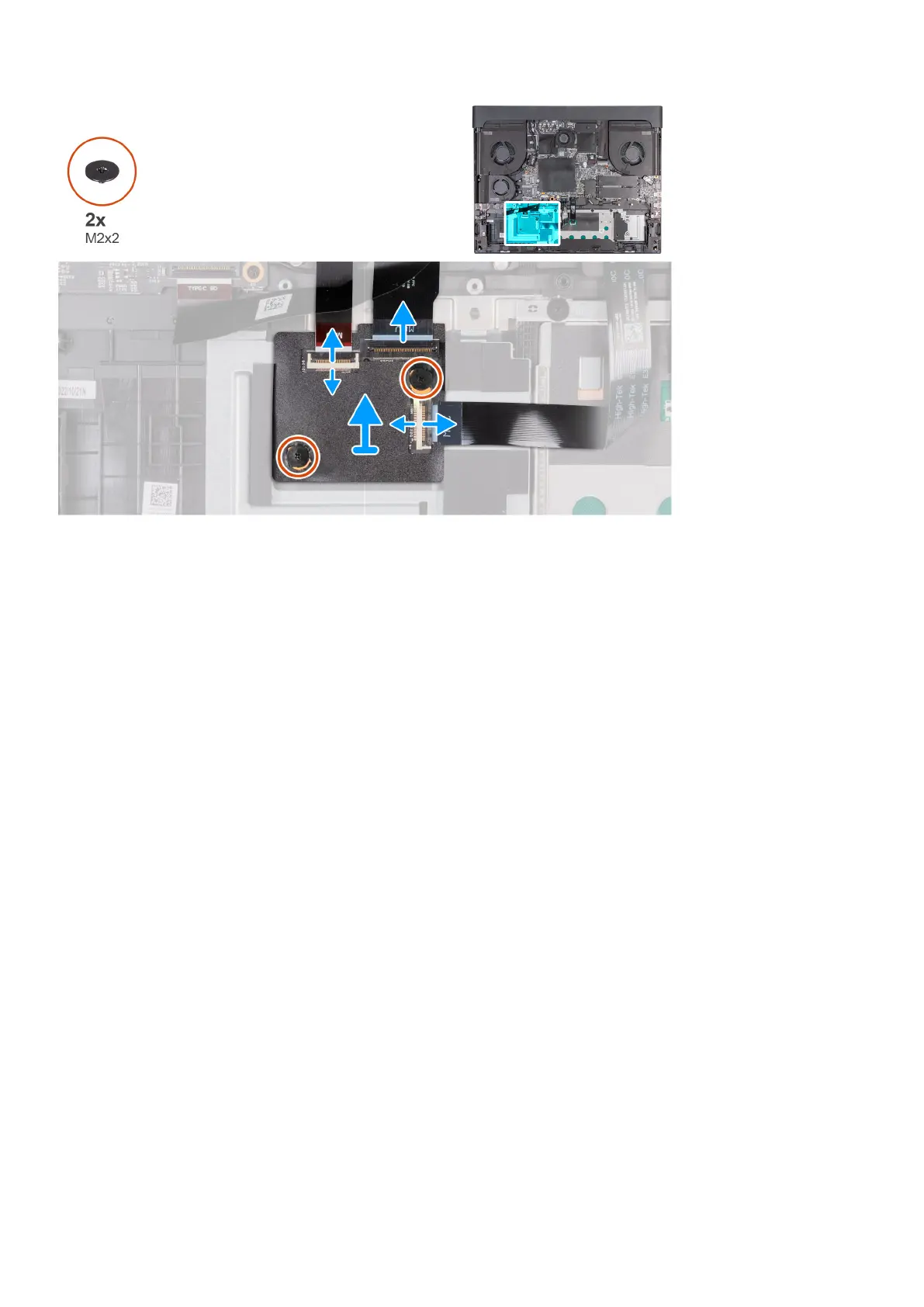

Steps
1. Open the latch and disconnect the keyboard cable from the keyboard-controller board.
2. Open the latch and disconnect the keyboard-backlight cable from the keyboard-controller board.
3. Open the latch and disconnect the keyboard-controller board cable from the system board.
4. Remove the two screws (M2x2) that secures the keyboard-controller board to the palm-rest and keyboard assembly.
5. Lift the keyboard-controller board off the palm-rest and keyboard assembly.
Installing the keyboard-controller board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the keyboard-controller board and provides a visual representation of the installation
procedure.
53
