Steps

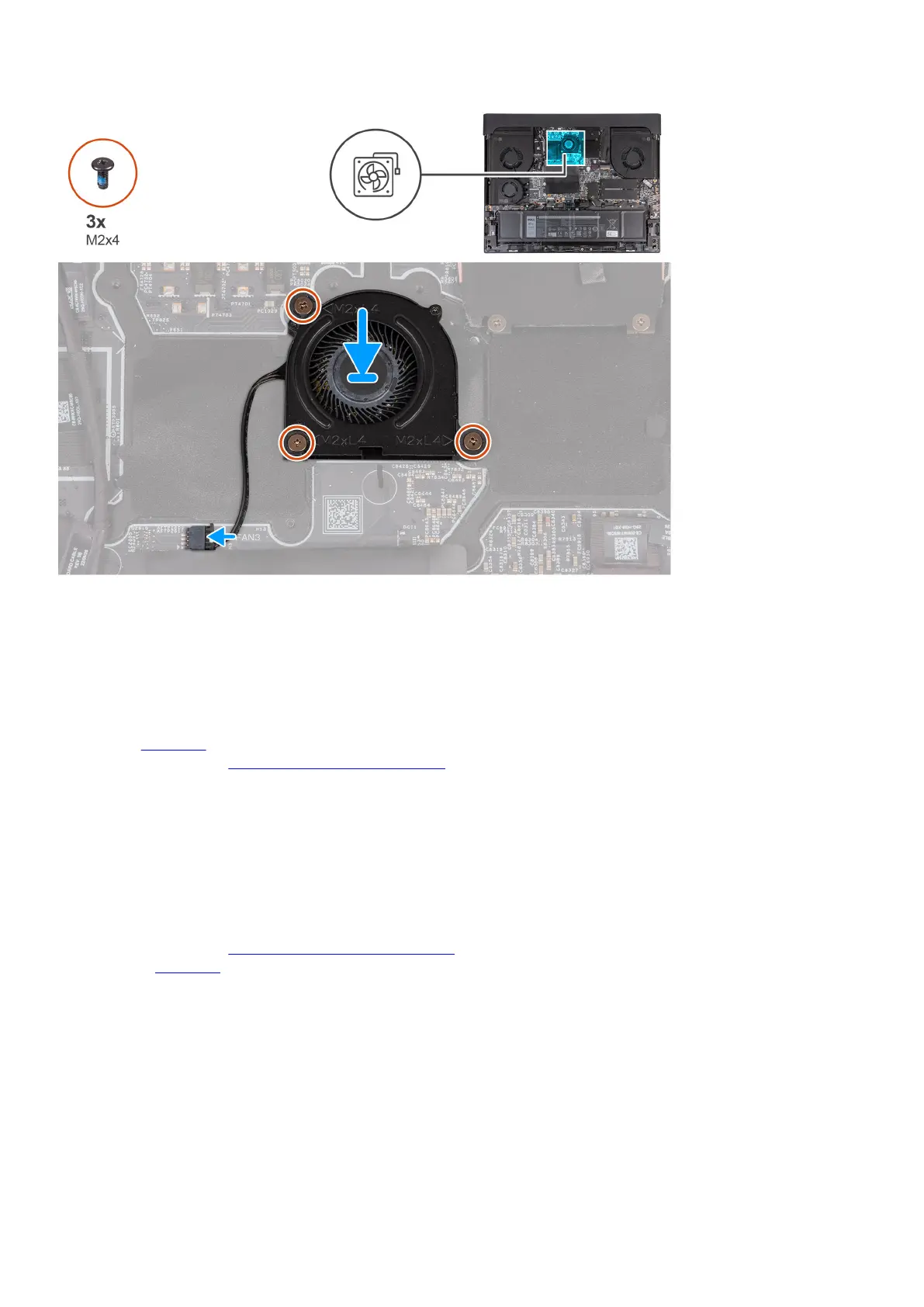

1. Place and align the screws on the system board with the screw holes on the fan.
2. Replace the three screws (M2x4) that secure the fan to the palm-rest and keyboard assembly.
3. Connect the fan cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Rear-I/O cover
Removing the rear-I/O cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image(s) indicate the location of the rear-I/O cover and provides a visual representation of the removal procedure.
28
