Steps

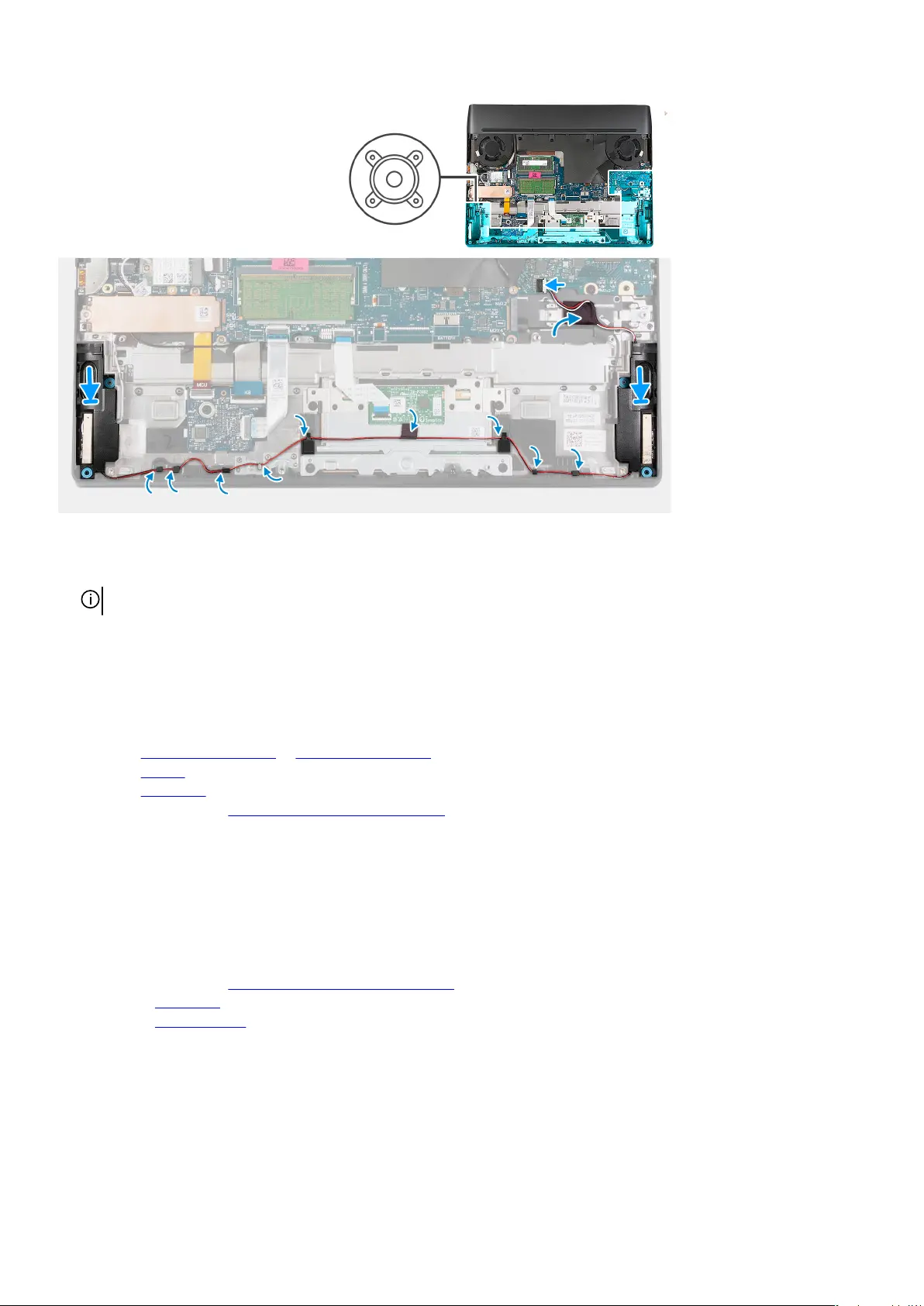

1. Using the alignment posts, place the left and right speakers into their slots on the palm-rest and keyboard assembly.
NOTE: Ensure that the alignment posts are threaded through the rubber grommets on the speaker.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Adhere the tape that secures the speaker cable to the palm-rest and keyboard assembly.
4. Connect the speaker cable to the system board.
Next steps
1. Install the
2230 solid-state drive or 2280 solid-state drive in slot two, whichever applicable.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the
rear-I/O cover.
About this task
The following image(s) indicate the location of the power-adapter port and provides a visual representation of the removal
procedure.
39
