ALFATRON ALF-5/10/12/20X/30X-CAM
6
1.
Fast Installation
1.1

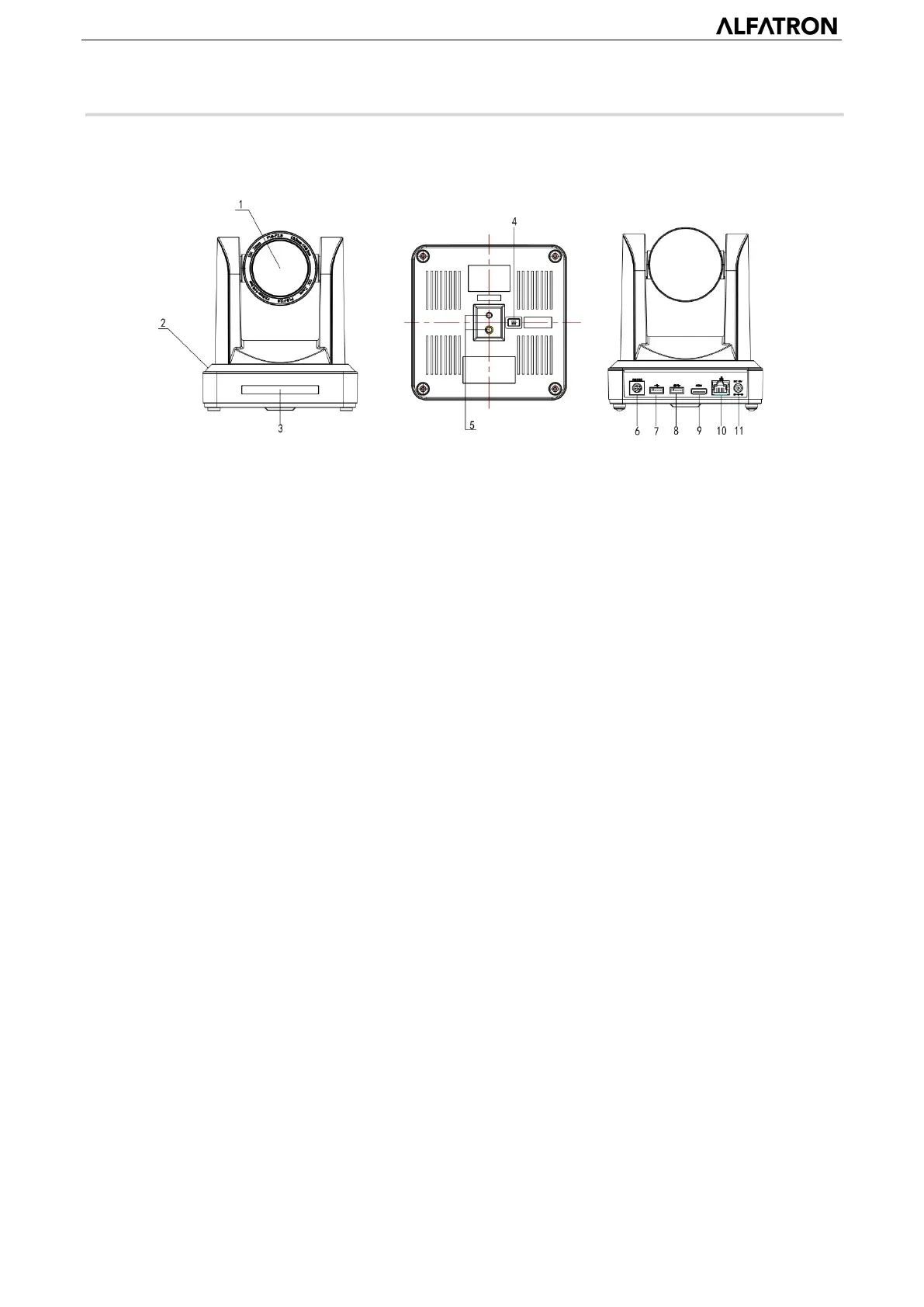

Camera Interface Explanation
(USB2.0, USB3.0, HDMI Output)
1 Lens
5 Tripod Screw Hole
9 HDMI Output
2. Base 6 RS232 (IN) 10 LAN
3 Remote Controller Receiver Light 7 USB2.0 11 Power Supply
4 Button Dial Switch
8 USB3.0
1.2
Power on initial configuration
1) Power on: Connect DC12V power supply adapter with power supply socket.
2) Initial configuration: Power on with power indicator light on and remote-control receiver light blinking, camera head moves from
the bottom left to the bottom, and then goes to the HOME position (intermediate position of both horizontal and vertical), while the
camera module stretches. When remote control receiver light stops blinking, the self-checking is finished
Note: If you set preset 0, when the Power-on self-test is completed, the camera automatically moves to the preset 0 positions.
1.3
Video Output
1) Video Output from LAN
a. Network Cable Connection Port:
b. Webpage Login: Open your browser and enter 192.168.5.163 in the address bar (factory default); press Enter to enter the login
page; click on the “player is not installed, please download and install!" and follow the installation steps for installation. Then
enter the username admin and password admin (factory default); press Enter to enter the preview page, users can carry out PTZ
control, video recording, playback, configuration, and other operations.
2) HDMI Video Output
a. HDMI Video Cable Connection
b. Connect the camera and the monitor via HDMII video cable; video output is available after the camera self-test.
3 USB3.0 video output
a. USB3.0 video cable connection
b. Connect the camera and the monitor via USB3.0 video cable, open video display software, select image device, and then video
output will be available.
5) USB3.0 compatible with USB2.0 output
