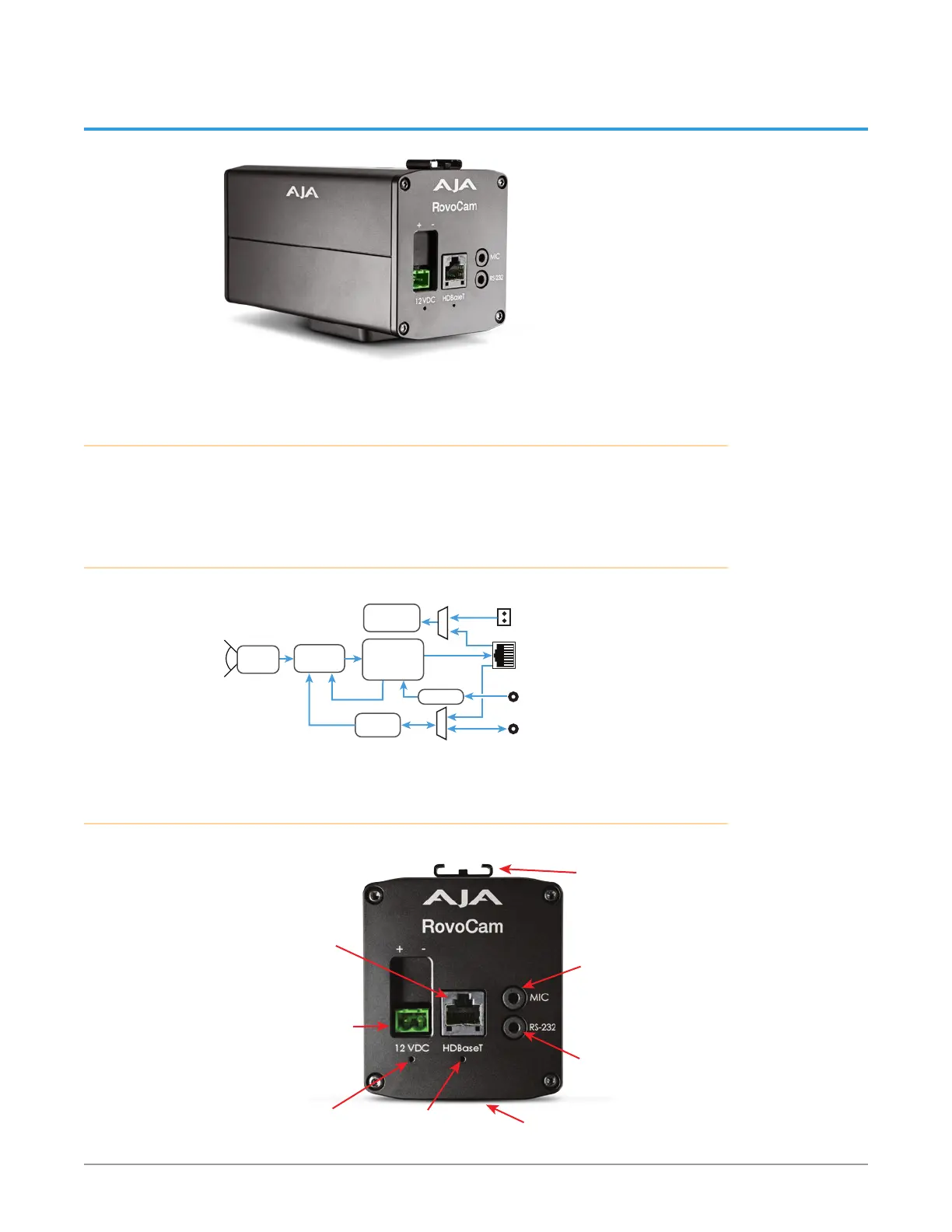

RovoCam UltraHD HDBaseT Camera System v1.0r4 9 www.aja.com
Chapter 2 – RovoCam
Overview
When using the product, you’ll make media cable connections to a variety of
equipment based on how the system is being used.
Block Diagram
Figure 4. RovoCam Simplified Block Diagrams
RJ-45
HDBaseT Out
RS-232 In
Power In
USB Firmware
Interface
RS-232
Receiver
Local RS-232
Control
Stereo Mic
Input
+12 VDC
Processor
Power
Distribution
HDBaseT
Transmitter
Sensor
+20dB
Connectors
Figure 5. RovoCam Rear View
Power LED Link LED
Cold Shoe Mount
(removable)
HDBaseT
Connector
12 VDC Power Input
(used if not powered
via HDBaseT
RS-232 3.5mm TR
Jack with 3V PIP
Stereo Mic Input
3.5mm TRS Jack
with 3V PIP
Tripod Plate
(on top or bottom)
