RovoCam UltraHD HDBaseT Camera System v1.0r4 5 www.aja.com

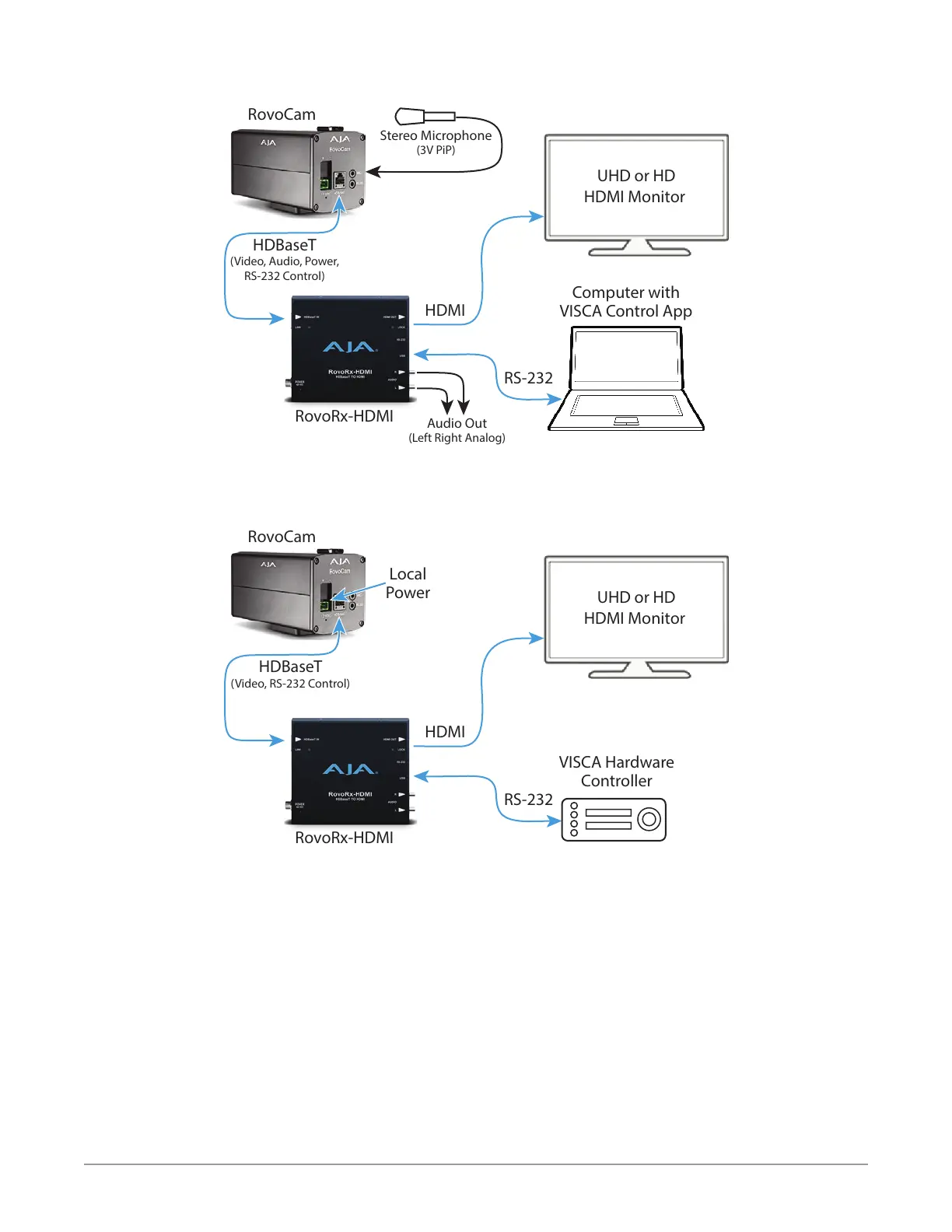

Figure 1. RovoCam System Diagram, with Audio and Computer
Computer with
VISCA Control App
HDMI
HDBaseT
(Video, Audio, Power,
RS-232 Control)
RovoCam
Stereo Microphone
(3V PiP)
Audio Out
(Left Right Analog)
RovoRx-HDMI
UHD or HD
HDMI Monitor
RS-232
RovoCam can receive power from the RovoRx over a Cat5e/6 cable (Figure 1), or
powered locally using its 12VDC connector (Figure 2).
Figure 2. RovoCam System Diagram, with Hardware Controller
VISCA Hardware
Controller
HDMI
HDBaseT
(Video, RS-232 Control)
Local
Power
RovoCam
RovoRx-HDMI
UHD or HD
HDMI Monitor
RS-232
