OG-X-FR openGear Frame v1.0r2 40 www.aja.com
5. Gently remove the air lter o the metal protective screen that separates
the lter from the fans.
To clean the air filter
1. Brush any loose dust o of the lter.
2. Place the lter under warm running water to remove any remaining dust.
On one side of the lter is a foam lter material. When rinsing, water should
ow out of this side.
3. Remove the lter from the water and thoroughly pat dry with a towel to
remove any moisture.
To replace the clean, dry filter into the frame door
1. Place the clean air lter across the metal protective screen, orienting it in the
same position you found it in during step 1 of the procedure “To remove
the air lter from the frame door”.
2. Install the faceplate by gently tting it back onto the frame door, ensuring
the faceplate does not interfere with the Diagnostic Panel, the Toggle
button, and the STATUS LED.
3. Verify that the side door tabs are seated properly in the cutouts on the
frame door bracket.
4. Using a Phillips screwdriver, secure the faceplate using the four screws
removed during step 2 of the procedure “To remove the air lter from the
frame door”.
Replacing the Frame Air Filter
Order the Air Filter Replacement Kit (AFK-OGX) from your openGear sales
representative before replacing the frame air filter in your OG-X-FR frame.
To remove the old air filter from the frame door
1. Using a Phillips screwdriver, remove the four 3/16”screws (#850-091R) screws
that secure the faceplate. (Figure 13) Set the screws aside.

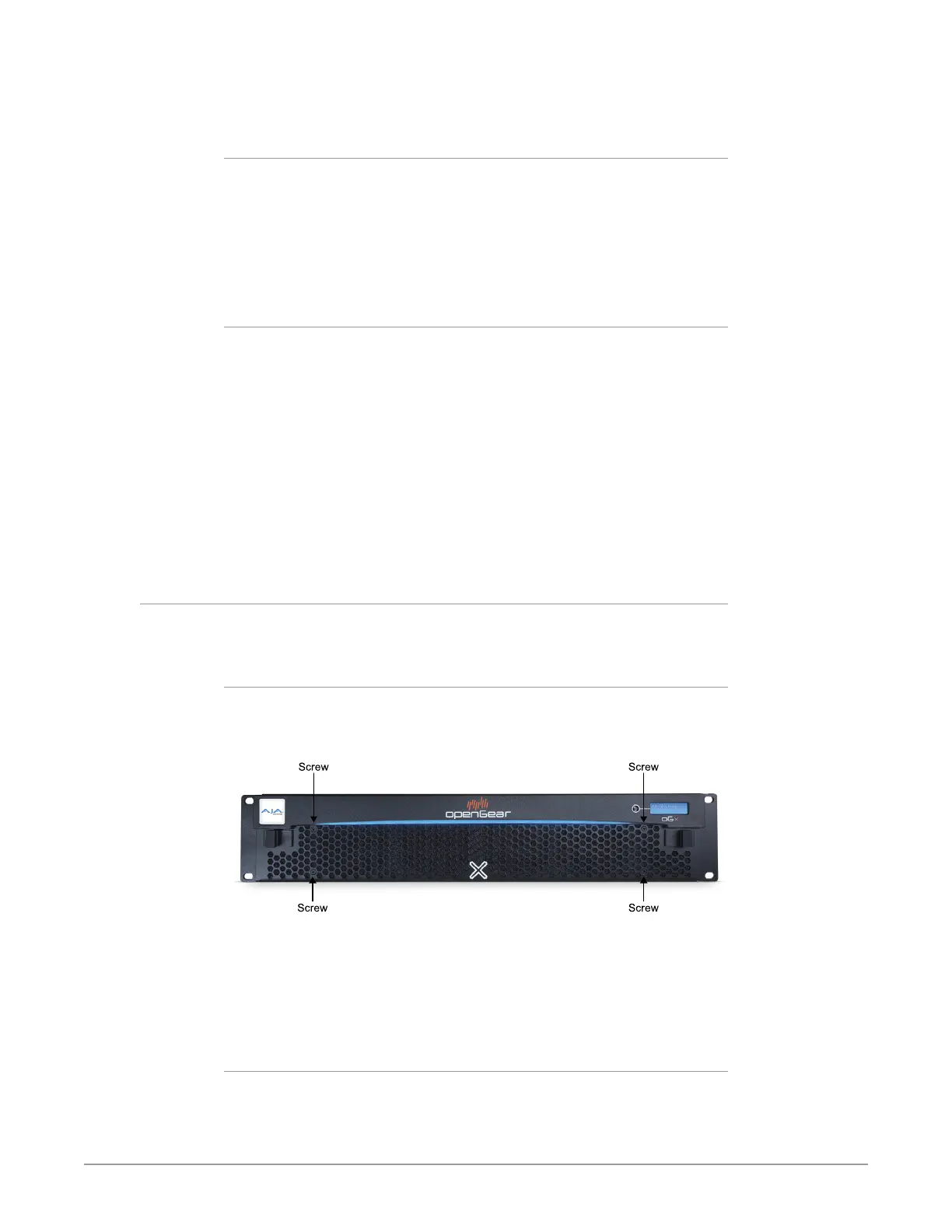

Figure 13. OG-X-FR — Screw Locations on Front Panel
2. Ensure that the side door tabs are disengaged from the door.
3. Remove the faceplate by gently pulling it towards you while avoiding the
Diagnostic Panel, the Toggle button, and the STATUS LED.
4. Gently remove the air lter o the metal protective screen that separates
the lter from the fans.
To install the new filter into the frame door
1. Place the new air lter across the metal protective screen, orienting it in the
same position you found it in during step 1 of the procedure “To remove
the old air lter from the frame door”.
