OG-X-FR openGear Frame v1.0r2 32 www.aja.com

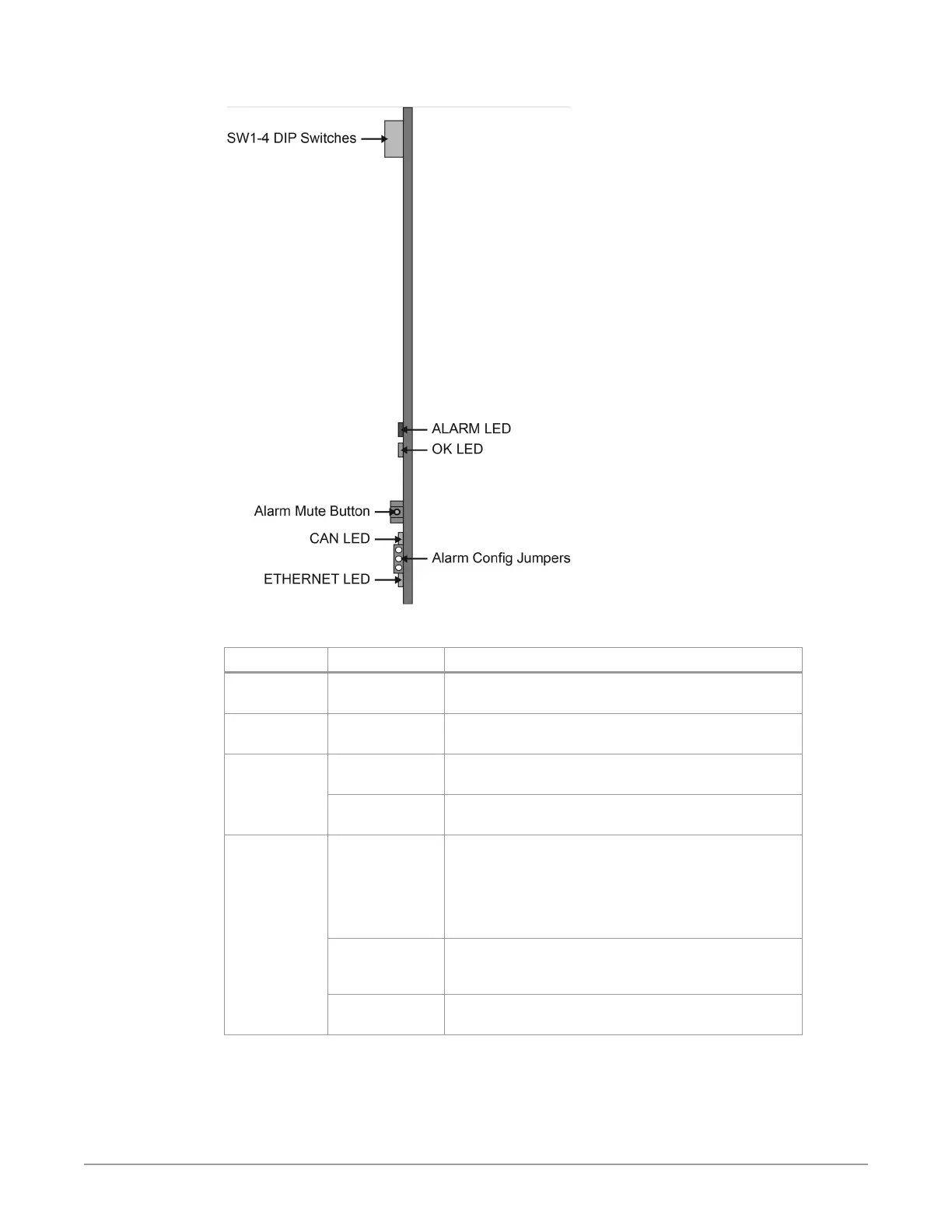

Figure 11. MFC-8322-S Card-edge Controls
Table 3. MFC-8322-S LED Descriptions
LED Color Description
OK Red When lit, this LED indicates a major alarm condition is
occurring in the frame.
ALARM Green When lit, this LED indicates the MFC-8322-S is operating
correctly.
CAN Flashing Yellow When ashing, this LED indicates the MFC-8322-S is
communicating with the other cards within the frame.
O When o, this LED indicates an absence of incoming
messages.
Ethernet Yellow When lit, this LED indicates a valid Ethernet link has
been established. No data transfer is currently taking
place. NOTE: If this LED remains lit for an extended
period of time (e.g. minutes or more), ensure that
the Ethernet port on the frame is connected to a
functioning Ethernet switch.
Flashing Yellow When ashing, this LED indicates that a valid link
has been established, and data is currently being
exchanged.
O When o, this LED indicates an absence of Ethernet
connection.
