OG-X-FR openGear Frame v1.0r2 15 www.aja.com
Installing the FSB-OGX
This section describes how to attach the FSB-OGX rear support bars to a OG-X-FR
frame.
NOTE: The FSB-OGX cannot be installed on the DFR-8321 or DFR-8310 frames.
To install the FSB-OGX

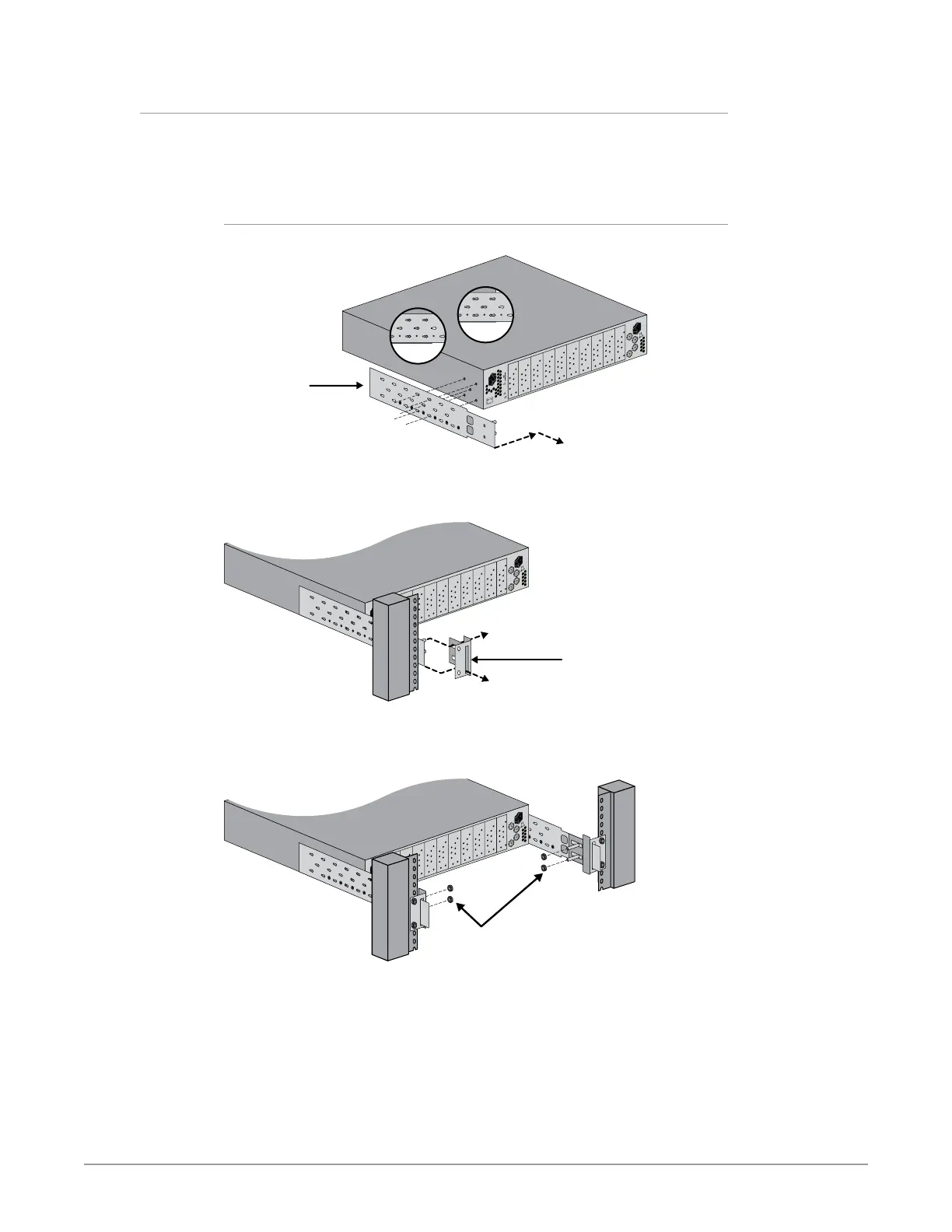

1. Attach the Rack Mount Arms of the FSB-OGX to the OG-X-FR frame.
Rack Mount
Arm
Unlocked
Locked
PS2
ETHERNET
100-240V~50-60Hz 600W
CAUTION
RISK OF SHOCK
DO NOT OPEN
REF 1
LOOP
REF 2
LOOP
PS1
100-240V~50-60Hz 600W
CAUTION: RISK OF SHOCK
DO NOT OPEN
!
OGX-FR
!
!
2. Install the Rail Guides for each Rack Mount Arm.
INPUTS
1 2 3 4 5
PSL
GPIO
TALLY
PS 2PS 1
LTC
6 7
Rail Guide
Retaining
Bolts
Rack Mount
Arm
PS2
ETHERNET
100-240V~47-63Hz 450W
CAUTION
RISK OF SHOCK
DO NOT OPEN
!!
REF 1
LOOP
REF 2
LOOP
PS1
100-240V~50-60Hz 600W
CAUTION: RISK OF SHOCK
DO NOT OPEN
!
3. Secure the Rail Guides and Rack Mount Arms to the rack.
INPUTS
1 2 3 4 5
GPIO
TALLY
PS 2PS 1
LTC
6 7
5/16 Hex
Nuts
PS2
ETHERNET
100-240V~47-63Hz 450W
CAUTION
RISK OF SHOCK
DO NOT OPEN
!
!
REF 1
LOOP
REF 2
LOOP
PS1
100-240V~50-60Hz 600W
CAUTION: RISK OF SHOCK
DO NOT OPEN
!
4. Use the provided Threaded Rubber Bumpers to lock the Rack Mount Arms
in place.
