KONA Capture, Display, Convert v16.2 47 www.aja.com
HDR Screens

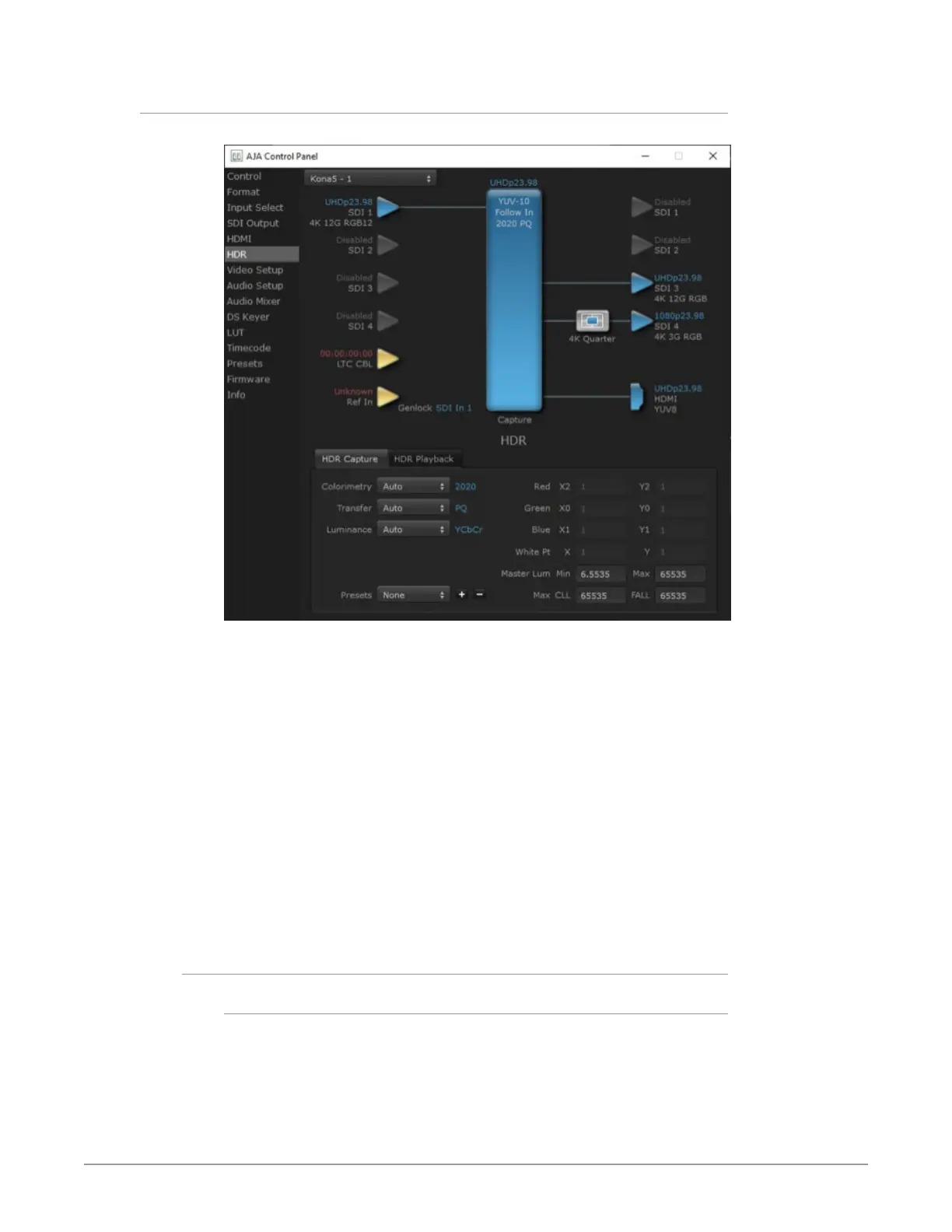

Figure 30. HDR Capture Screen Tab
The HDR screen provides a sub tab setup for HDR playback simultaneously via
both SDI and HDMI.
For SDI destinations, the HDR data is delivered in-band using VPID signaling for
SDR/HDR Transfer Characteristics, Colorimetry and Luminance.
For HDMI destinations, side-band information is used to inform an HDMI sink
device (such as a TV or monitor) that the video content is HDR. This includes
generation of the Dynamic Range and Mastering Infoframe and the static
metadata descriptors as defined in CTA-861.3 and HDMI v2.0a.
Included are preset primaries values for BT.2020 and DCI P3 color gamuts.
Two tabbed screens are available. The HDR Capture tab settings affect the HDR
metadata saved with your captured video, while the HDR Playback tab settings
affect what HDR metatdata is included the KONA's HDMI and SDI outputs.
KONA 5 and KONA 4 support HDR over both their SDI and HDMI outputs. KONA 1
supports HDR over its SDI output.
HDR Capture Settings
Colorimetry
• Auto - (default)
• SDR - Standard Dynamic Range
• P3 - P3 colorspace
• 2020 - BT.2020, typically used with HDR
• Custom - Allows custom values for the Digital Primaries.
