KONA Capture, Display, Convert v16.2 11 www.aja.com
• Dolby Vision support for Dolby Vision licensed applications
• Broadcast quality hardware-based 10-bit up-, down- and cross-conversion
(UFC Mode only)
• Broadcast quality hardware based 10-bit SD aspect ratio conversion,
anamorphic to letterbox, etc. (UFC Mode only)
• 8-channel 24-bit, 48kHz digital AES/EBU audio
• 16 channels of SDI embedded digital audio
• Audio Monitor mixing of sources, including Host Computer and Application
(4K Mode only)
• Genlock input with optional looping capability via the K3G-Box (terminated
on the supplied breakout cable)
• LTC (longitudinal timecode) input/output
KONA 4 Breakout Cable Connections

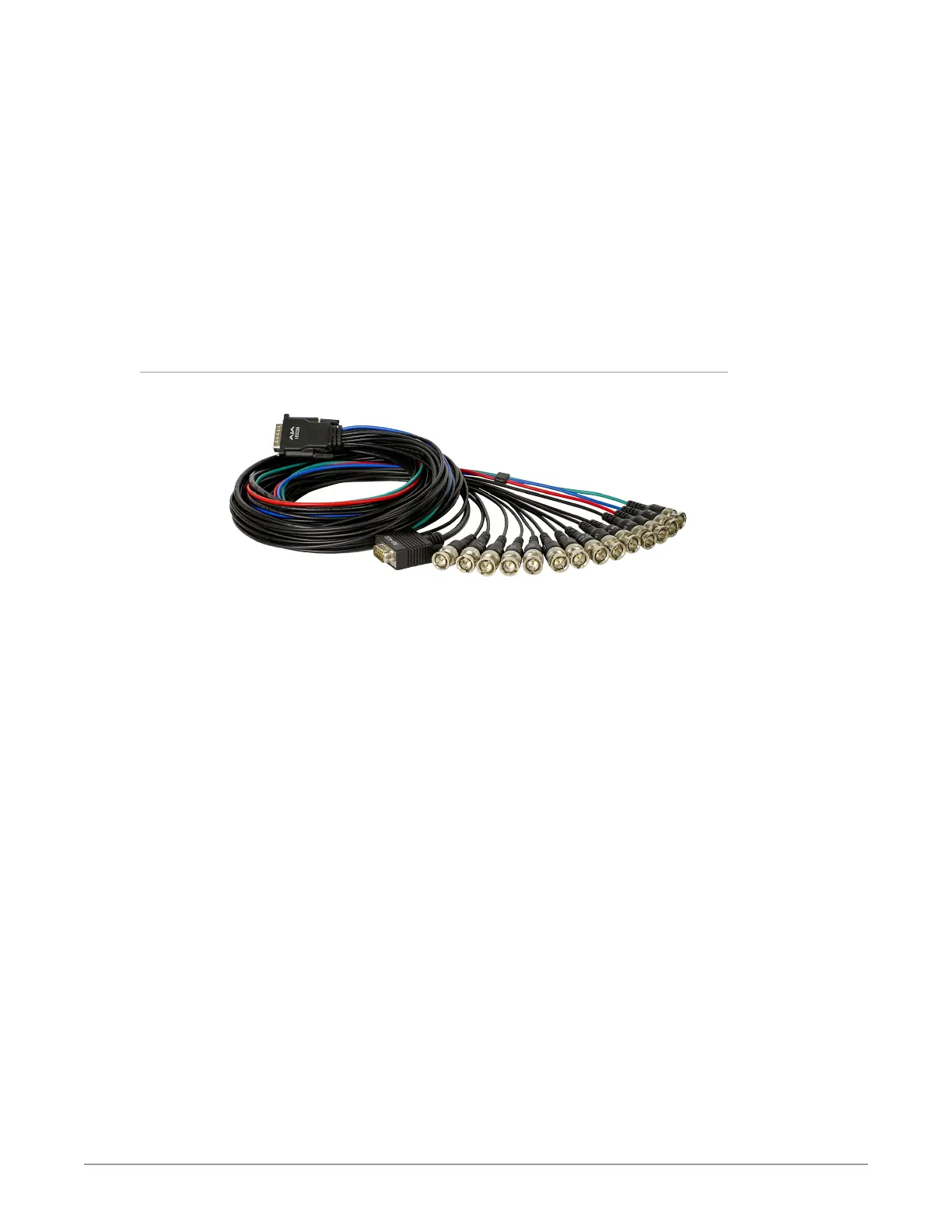

Figure 6. KONA 4 Breakout Cable
NOTE: KONA 4 breakout cables cannot be used with KONA 5 cards, and vice versa.
KONA offers unsurpassed cable connectivity for a video/audio capture card.
Connections are made via the breakout cable (included with the card) and
connectors mounted on the KONA Card endplate.
KONA 4 provides complete I/O connectivity choices in two multi-signal breakout
cables and one HDMI-to-HDMI mini output cable. One multi-signal cable provides
AES/EBU digital BNC connections and analog video monitoring connections. The
other has four DIN 1.0/2.3 small connectors on one end and four full size BNCs on
the other providing SDI connections. Cable connections are marked on both the
KONA card endplate and on the cable connectors for easy identification.
