IPTR-10G2-Series Mini-Converters SMPTE 2110 IP Tx/Rx v2.5r1 24 www.aja.com
Media LAN 2 Tab Screen

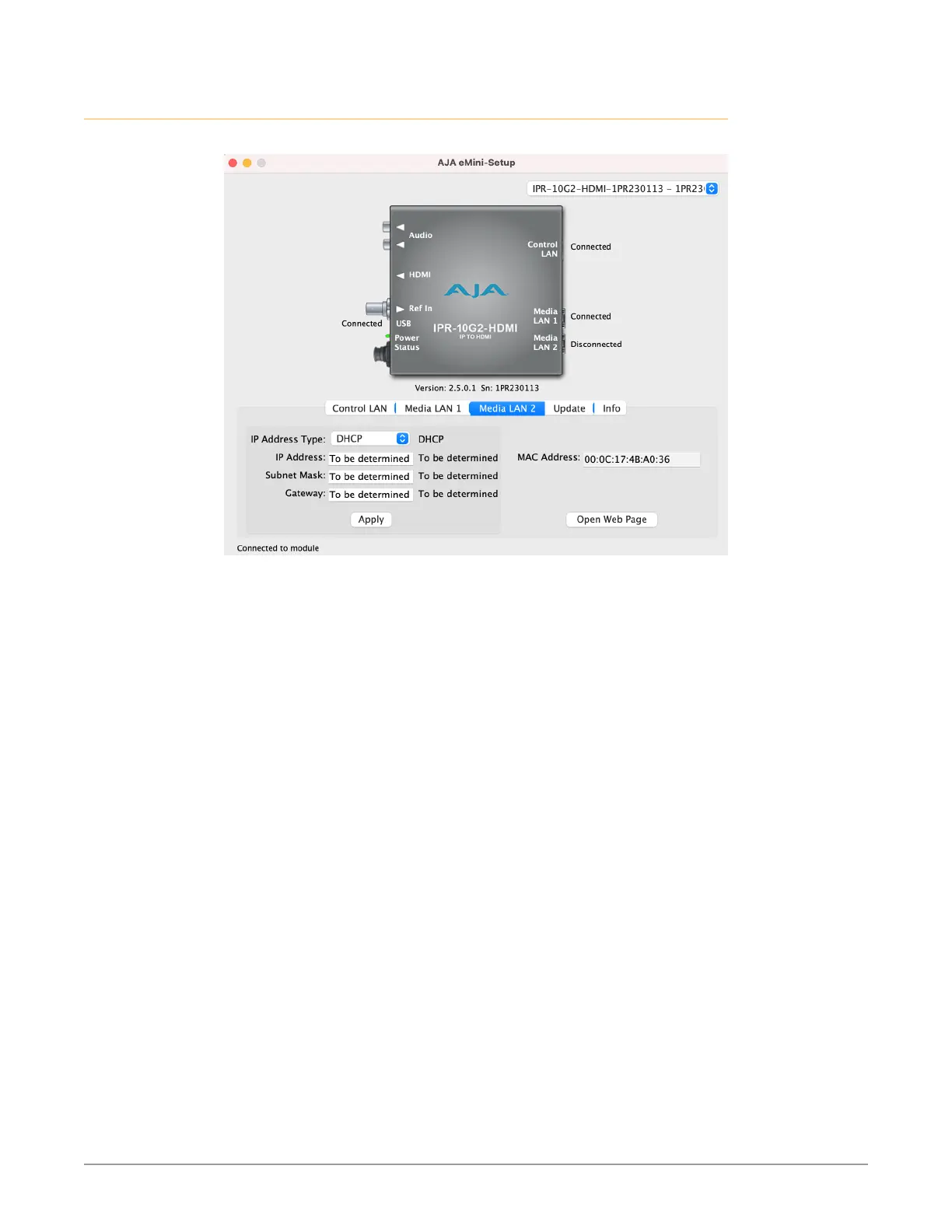

Figure 19. eMini-Setup Media LAN 2 Tab Screen
Use this Media LAN 2 tab to change the corresponding media network setup
on the connected AJA device. You must click the Apply button to initiate any
network configuration changes.
IP Address Type - Choose from DHCP or Static IP Address.
NOTE: If you intend to directly connect an IPT to an IPR, then you will need to use
sequential static IP addresses for both units (Transmit and Receive).
IP Address - The current IP Address is displayed. A different IP address can be
entered.
Subnet Mask - The current Subnet Mask is displayed. A different subnet mask
can be entered.
Gateway - The current Gateway address is displayed. A different gateway address
can be entered. On the Media LAN, the gateway may be left blank. (A gateway
is required on the Control LAN).
MAC Address - This is the permanent MAC address of the Media LAN Ethernet
port of the AJA device.
Open Web Page - Opens the IP Mini-Converter's web interface in a web browser.
